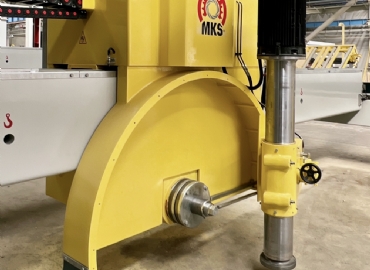

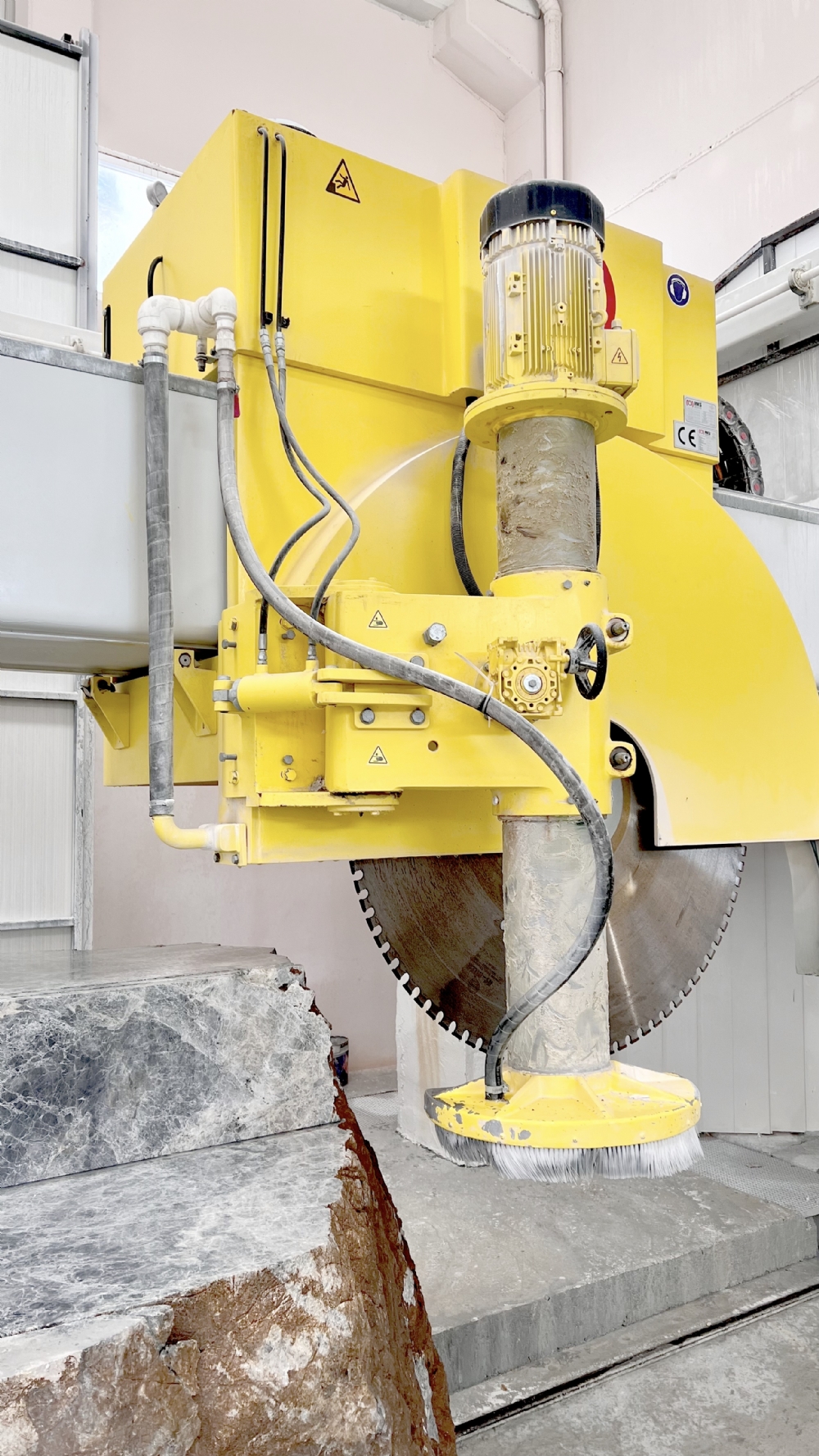

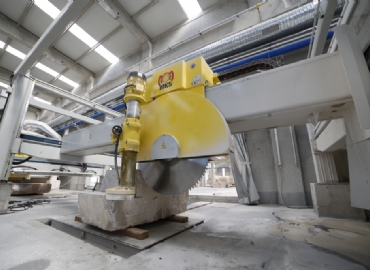

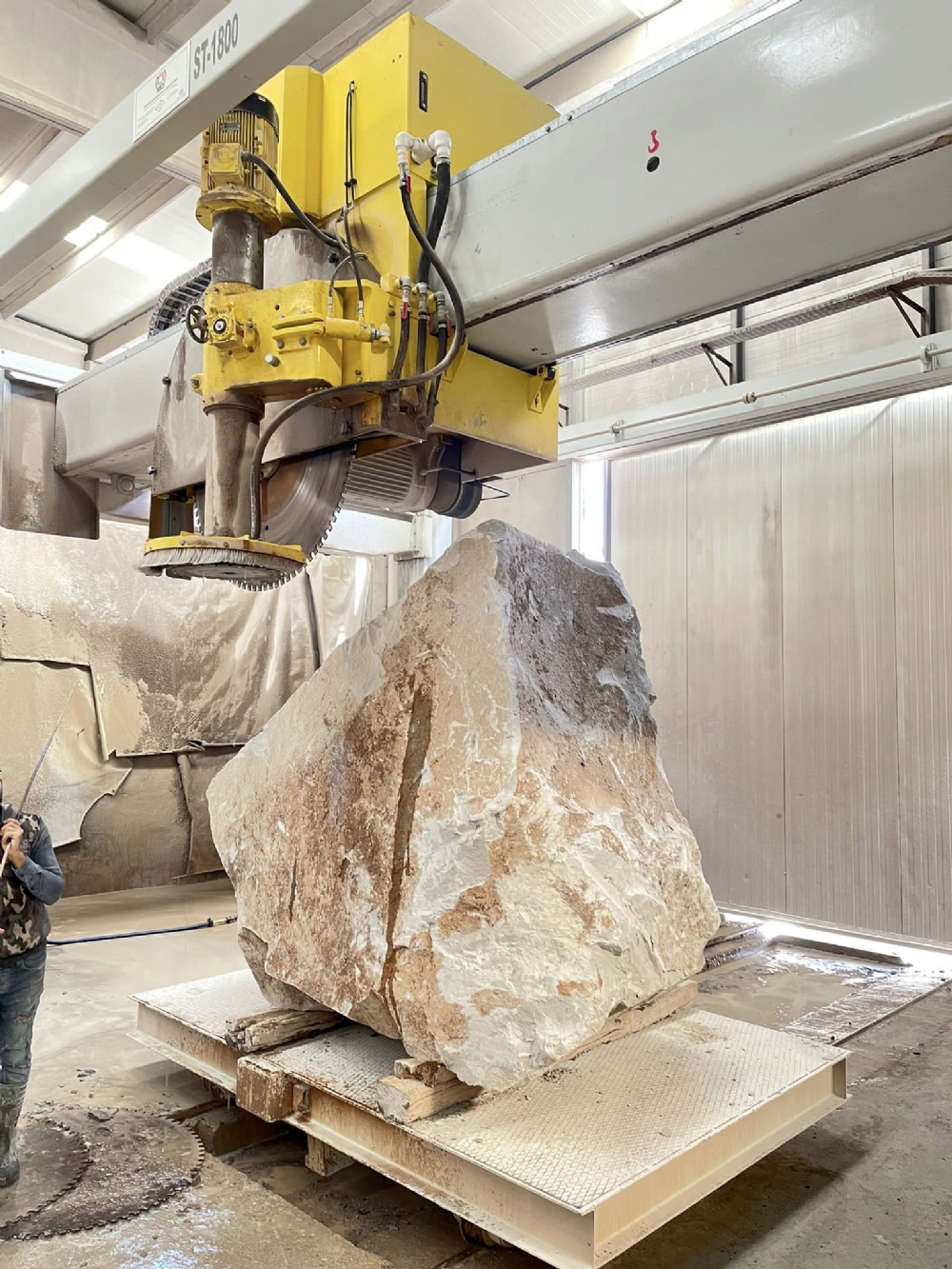

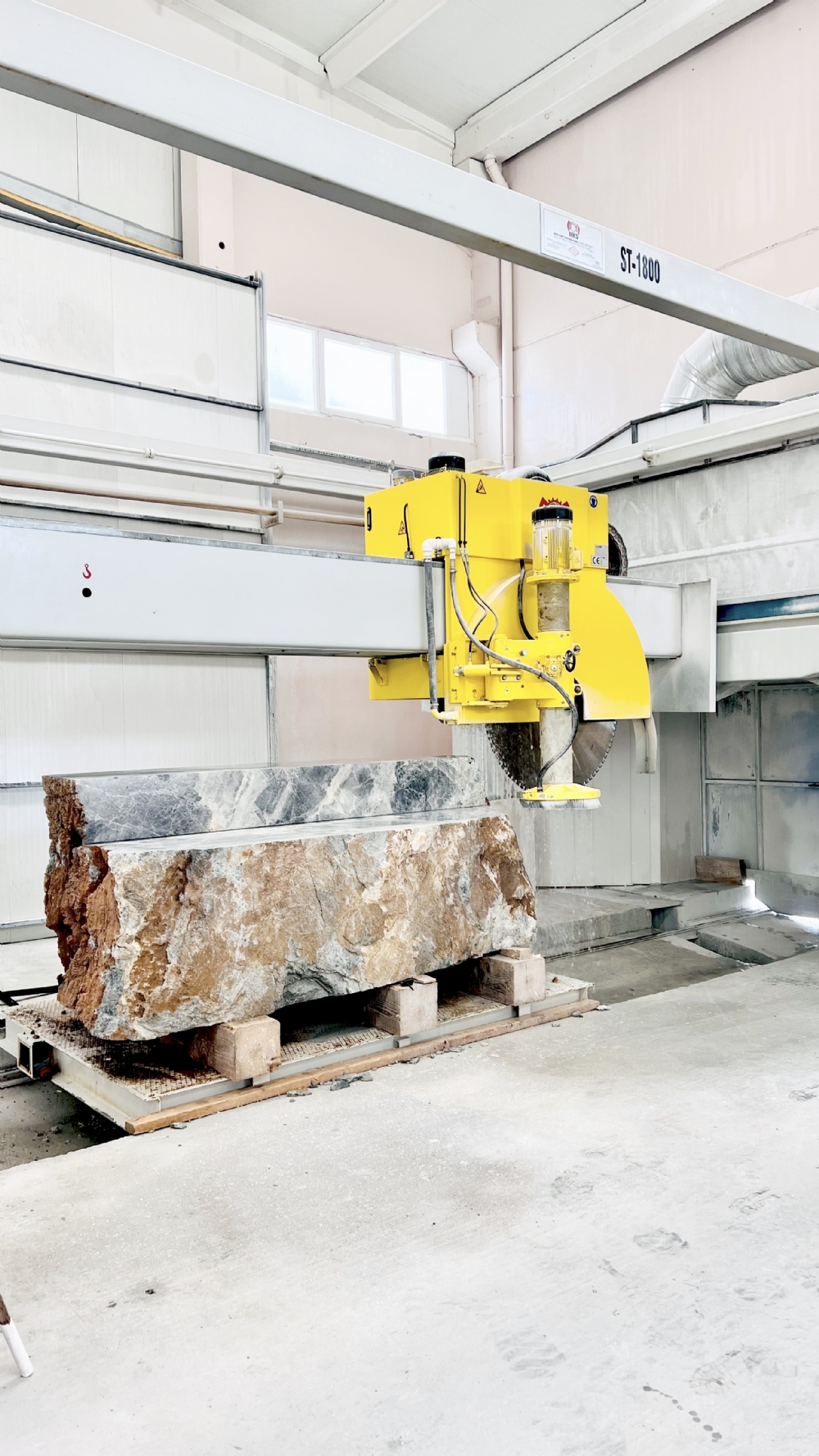

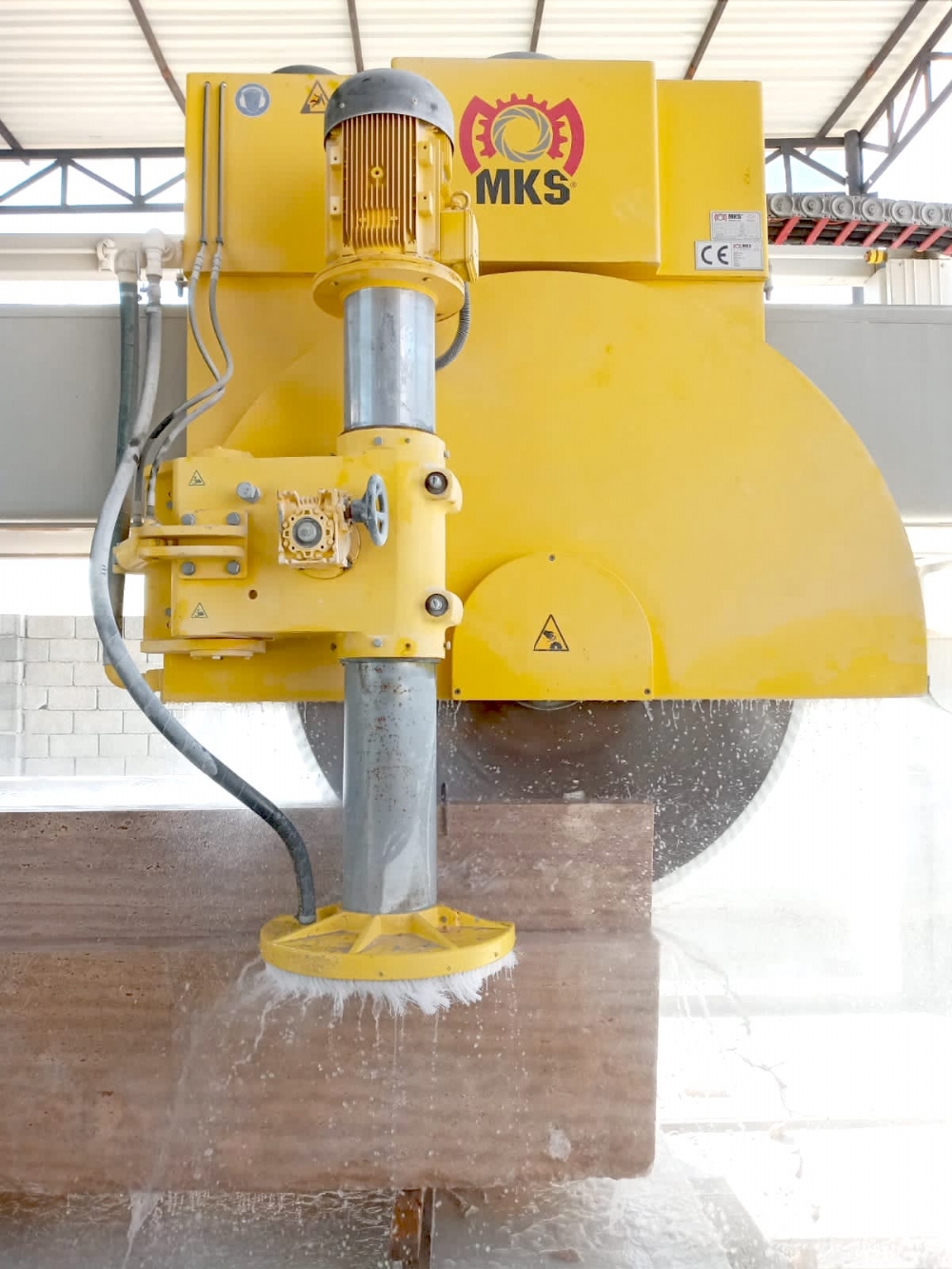

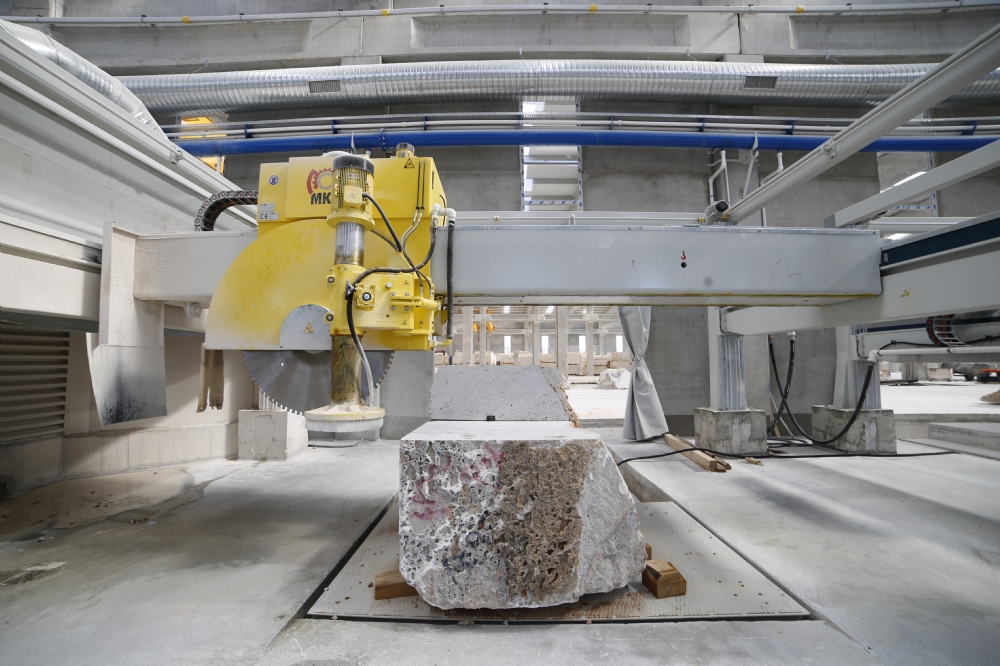

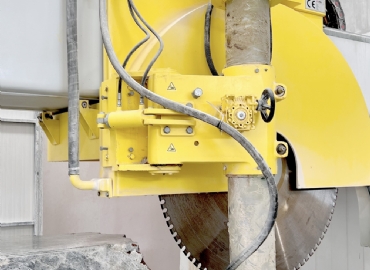

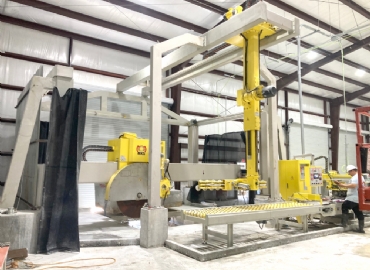

Block Cutter ST 1800 Super

Technicial Specifications

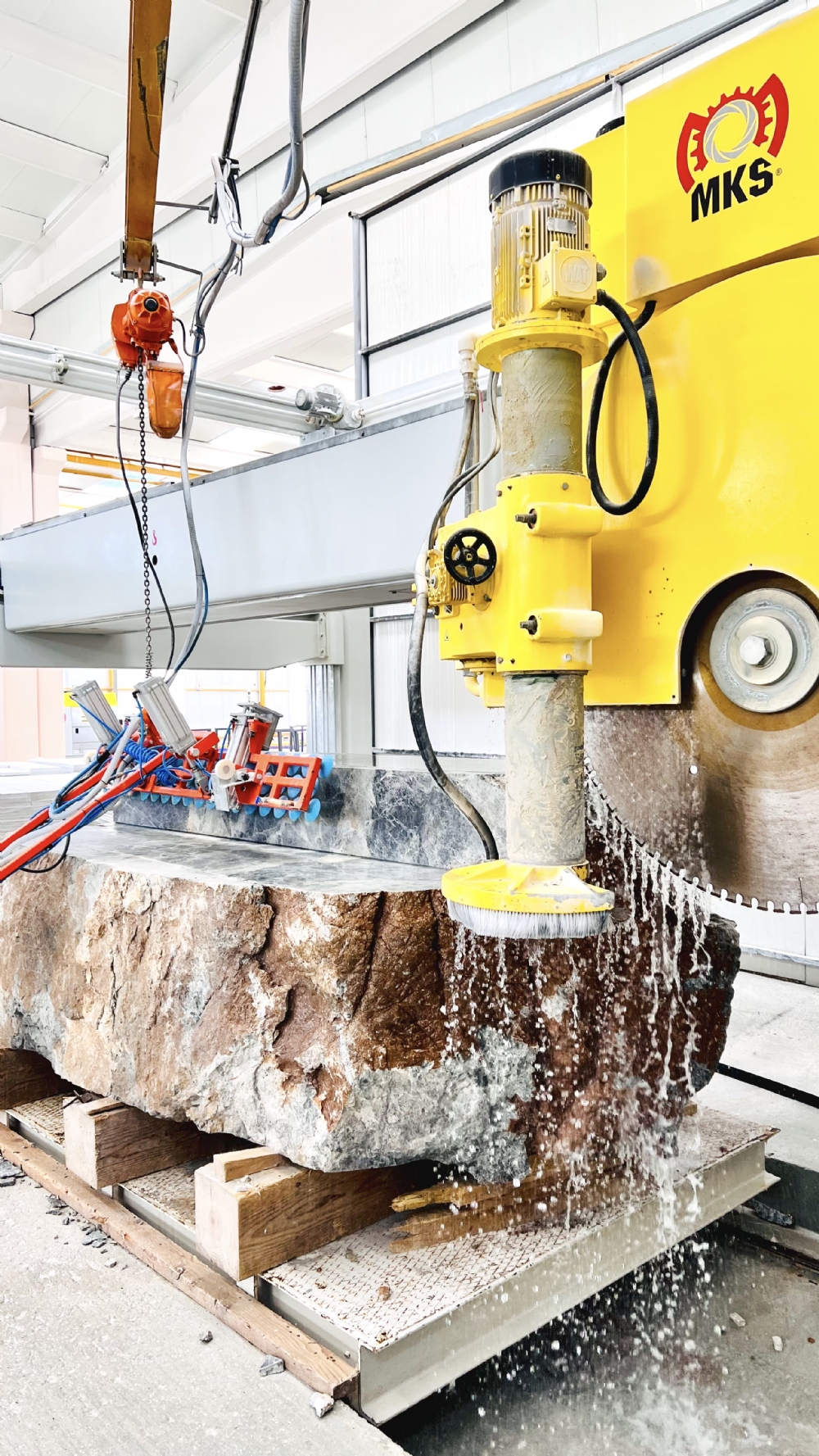

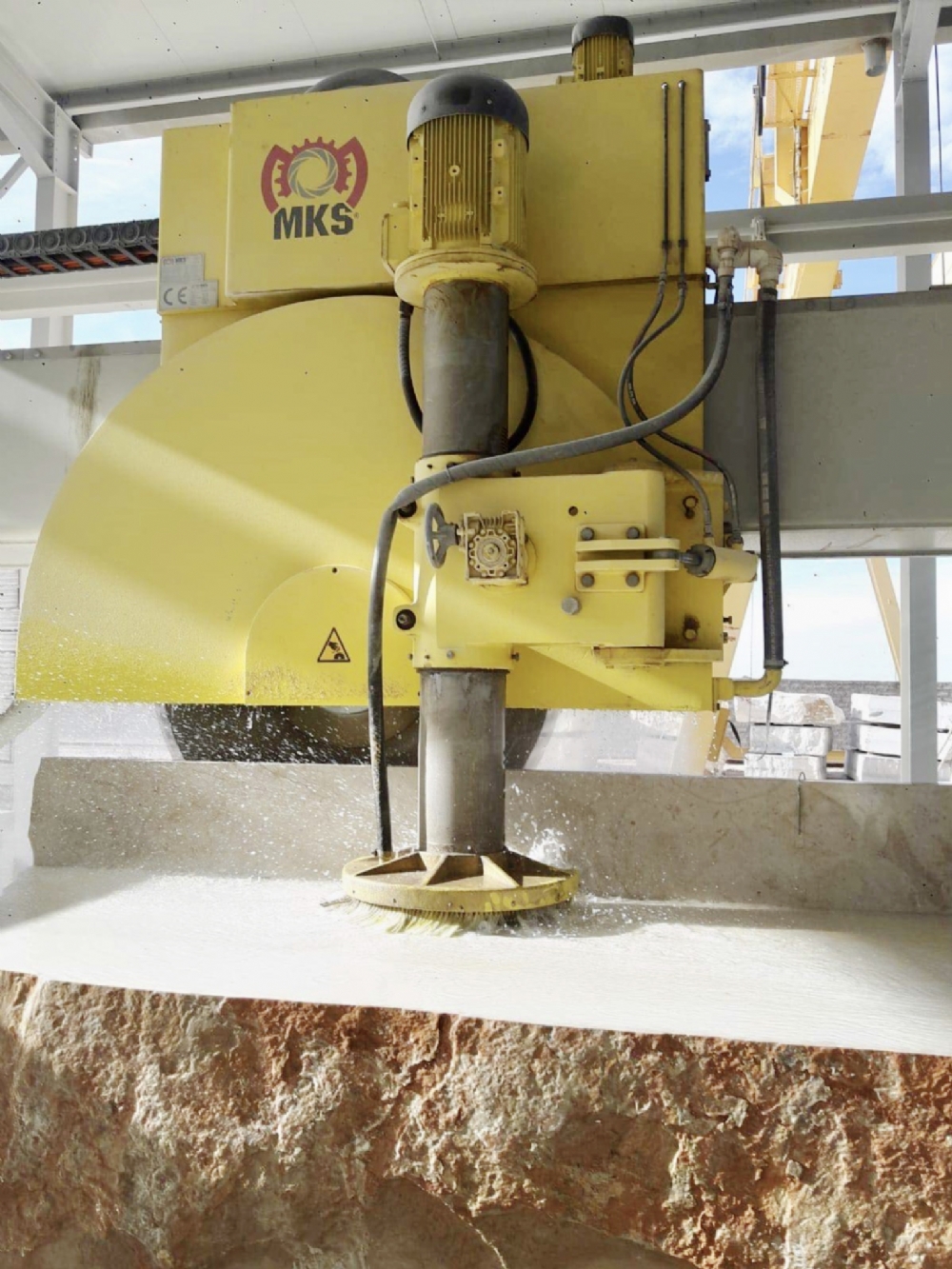

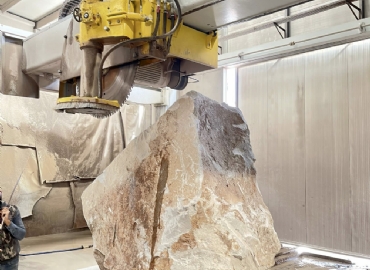

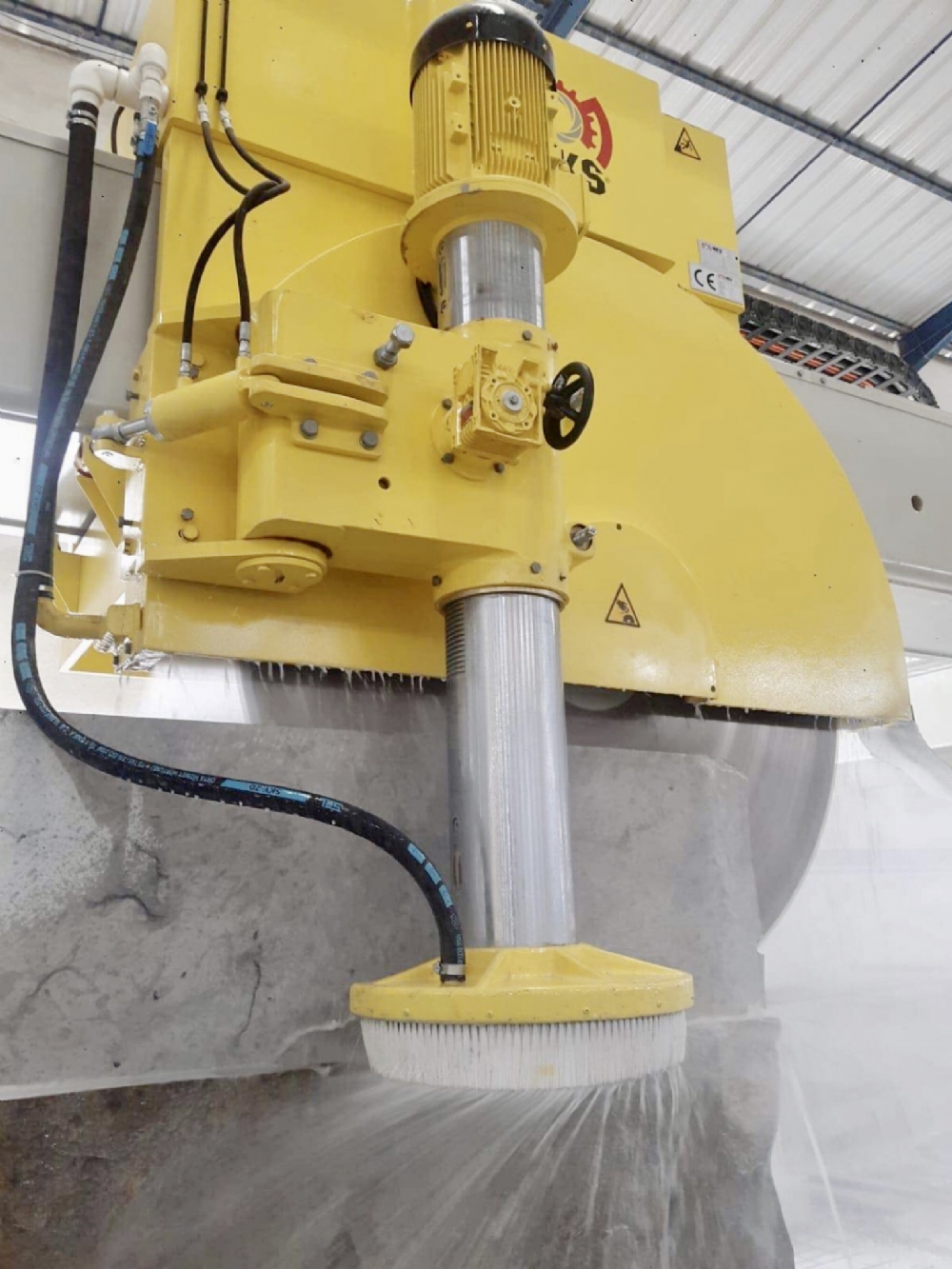

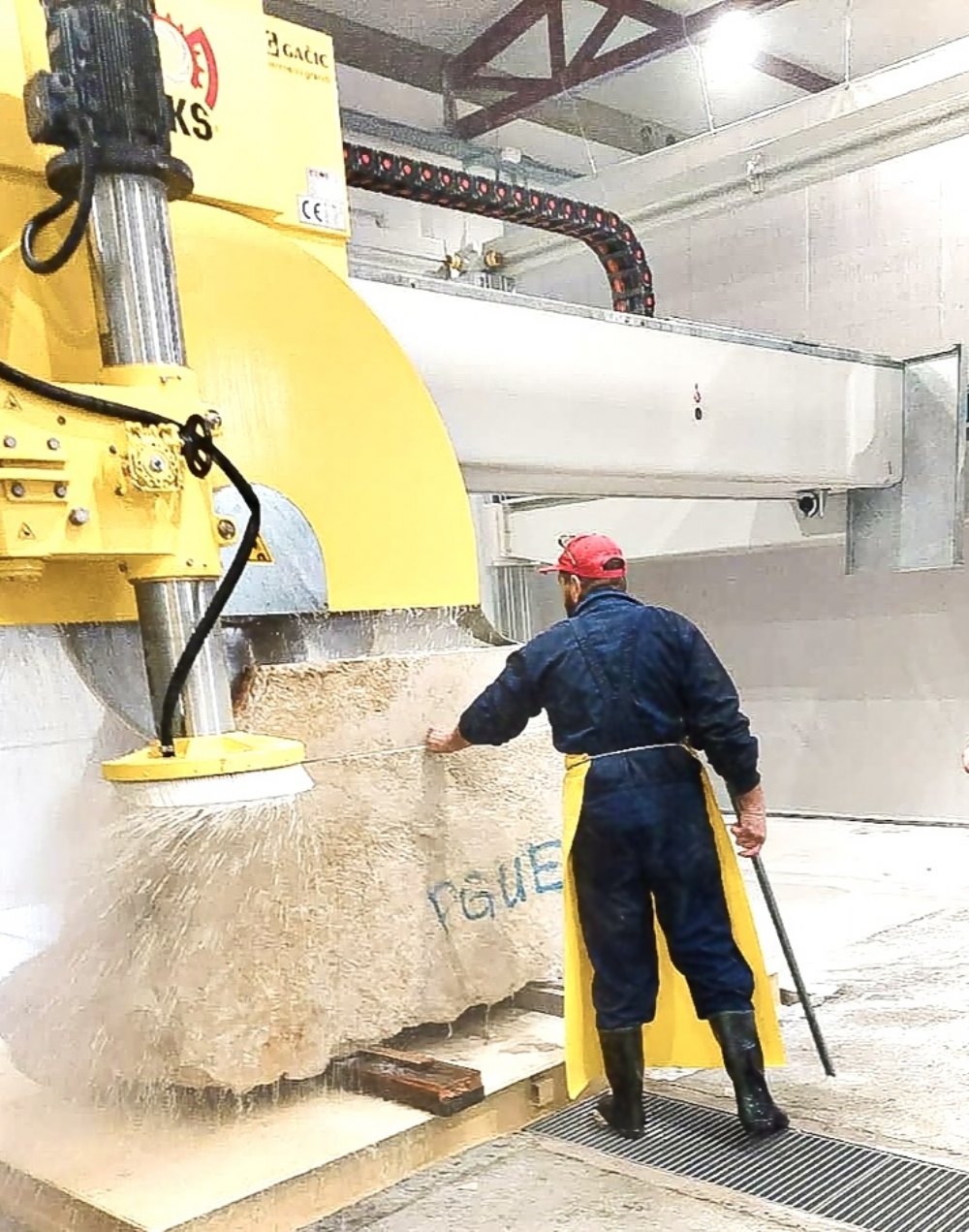

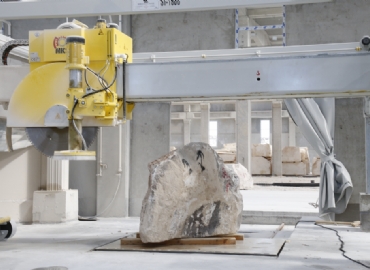

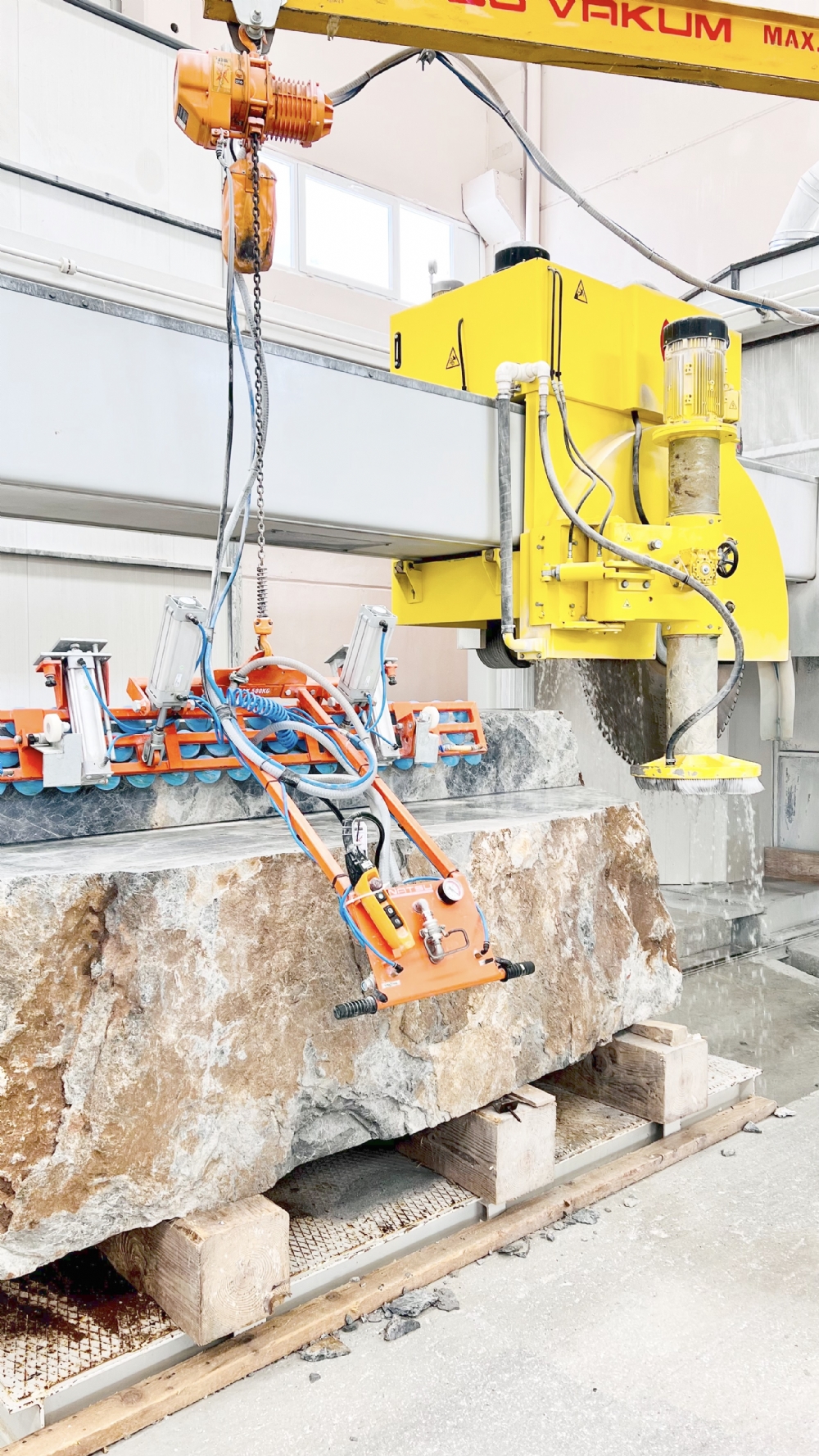

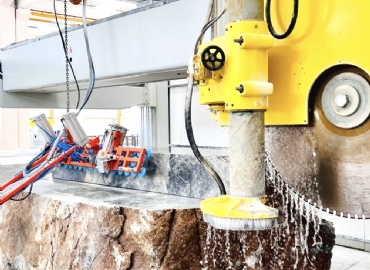

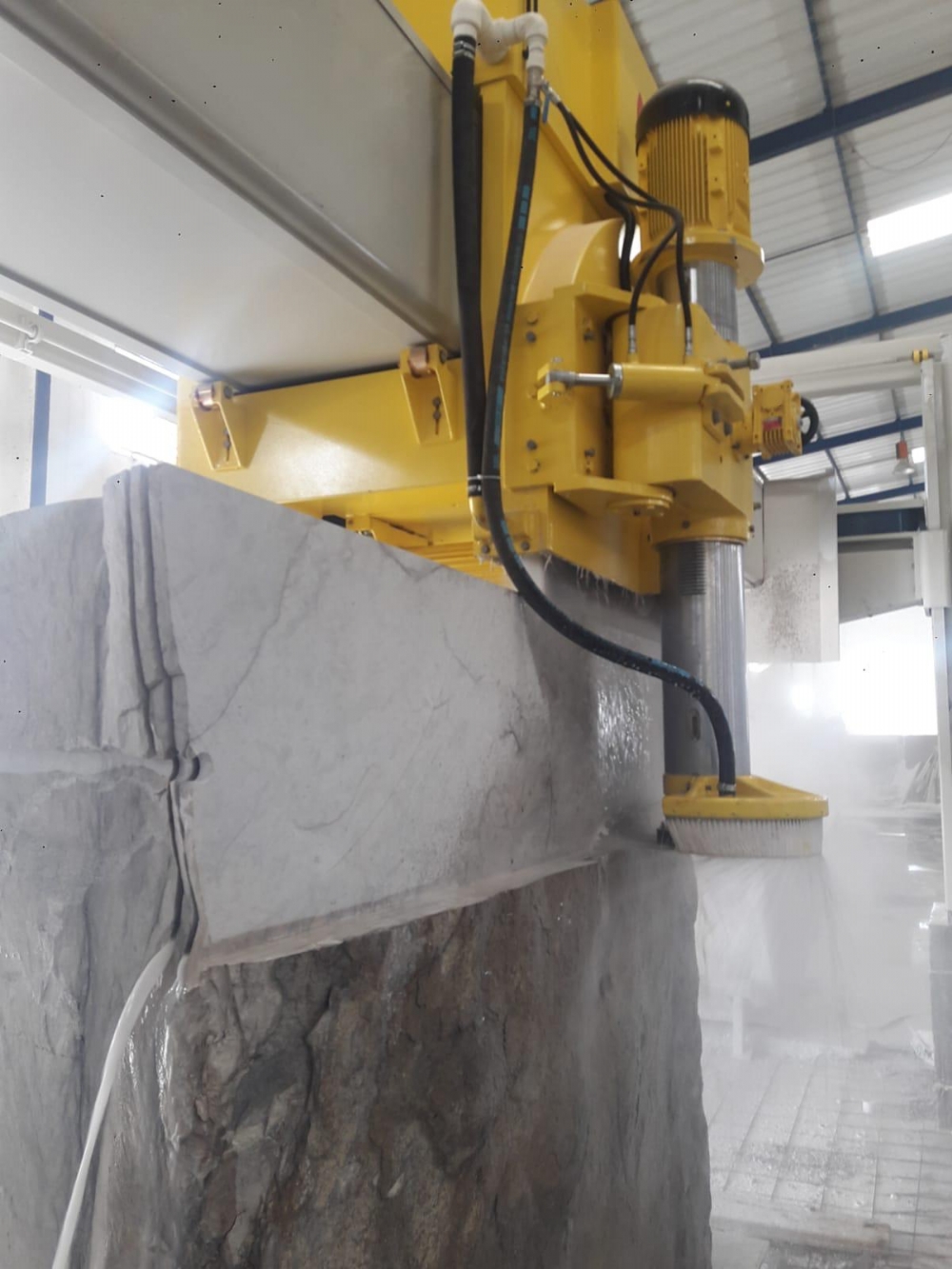

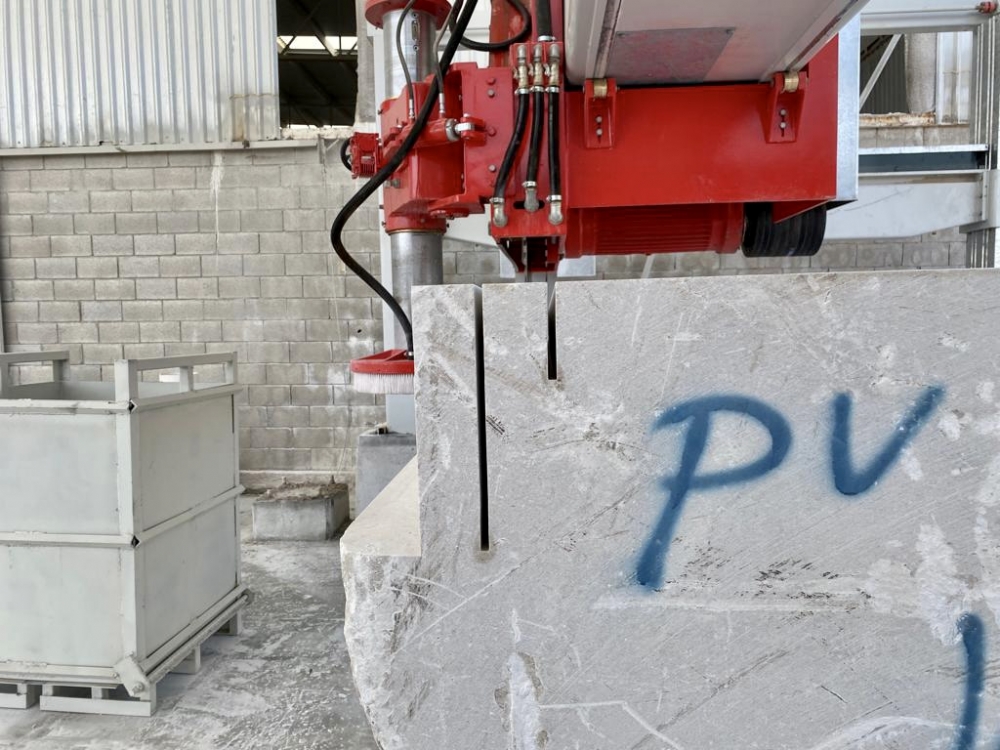

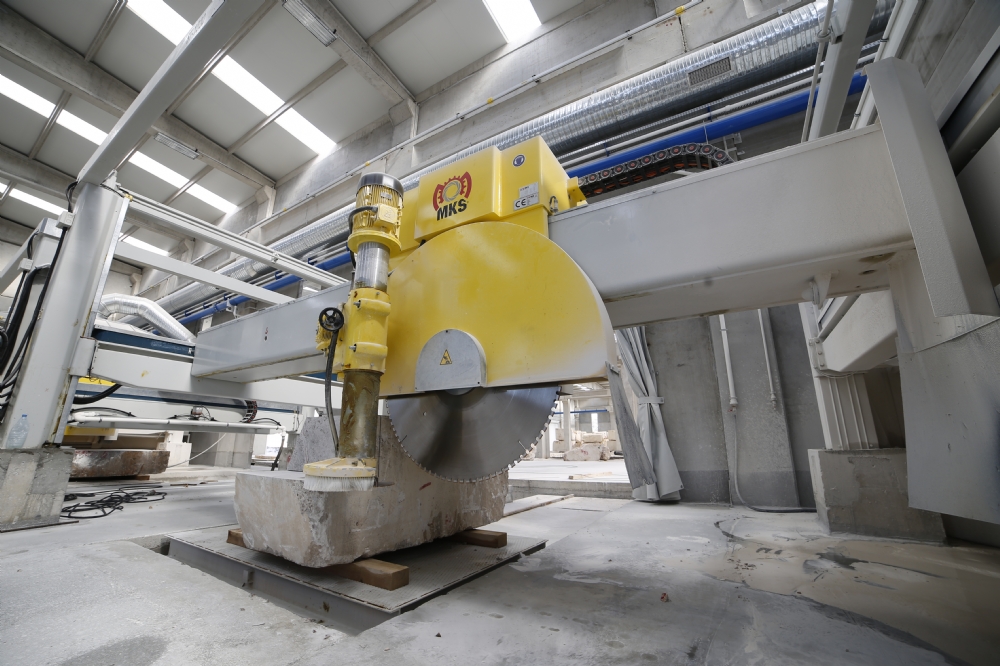

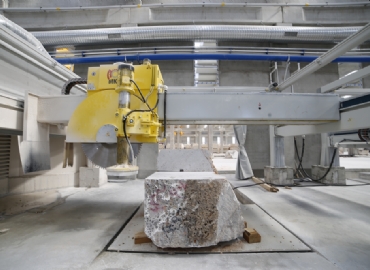

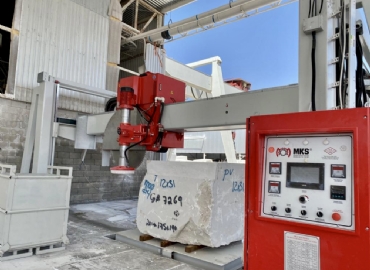

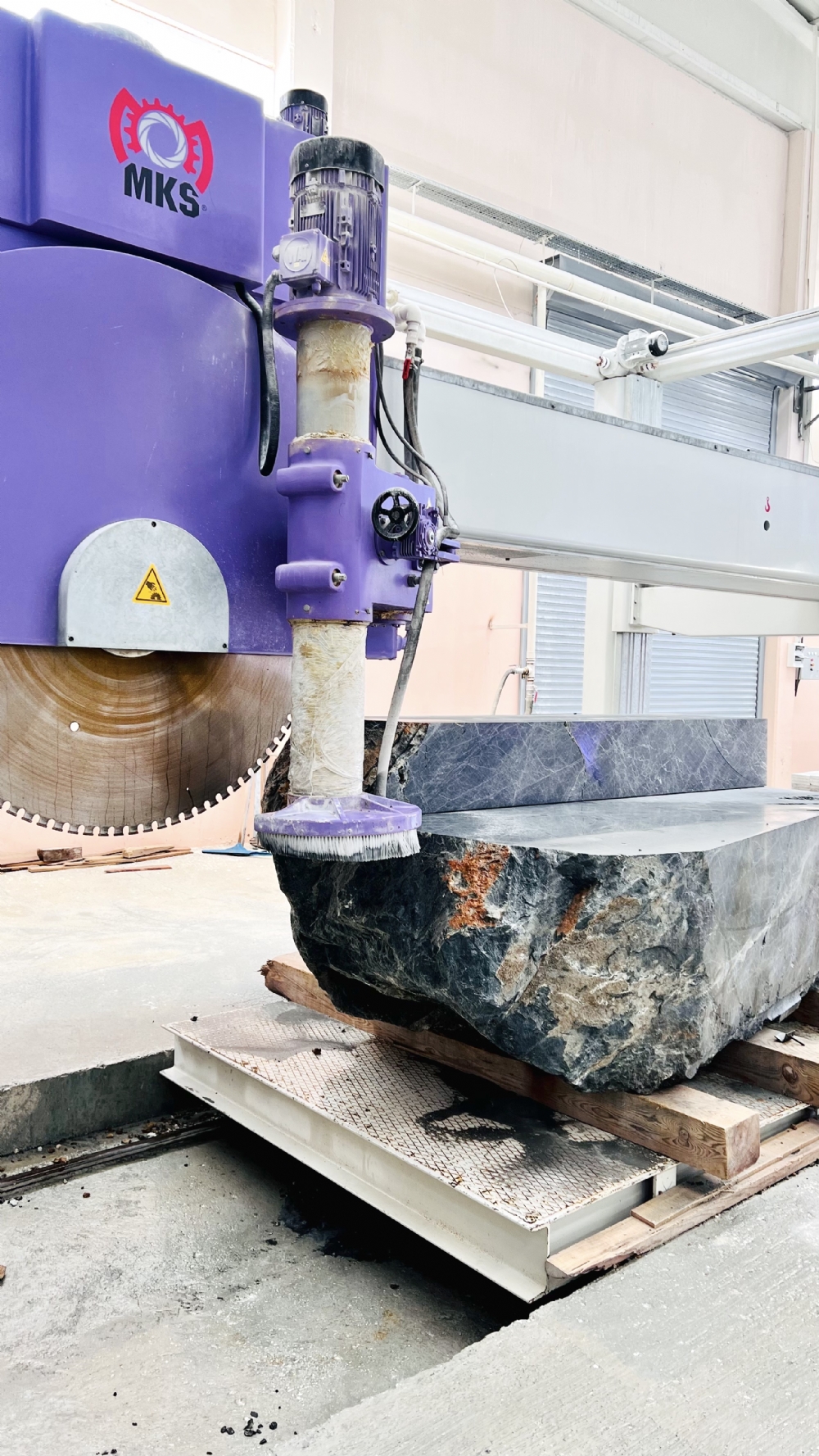

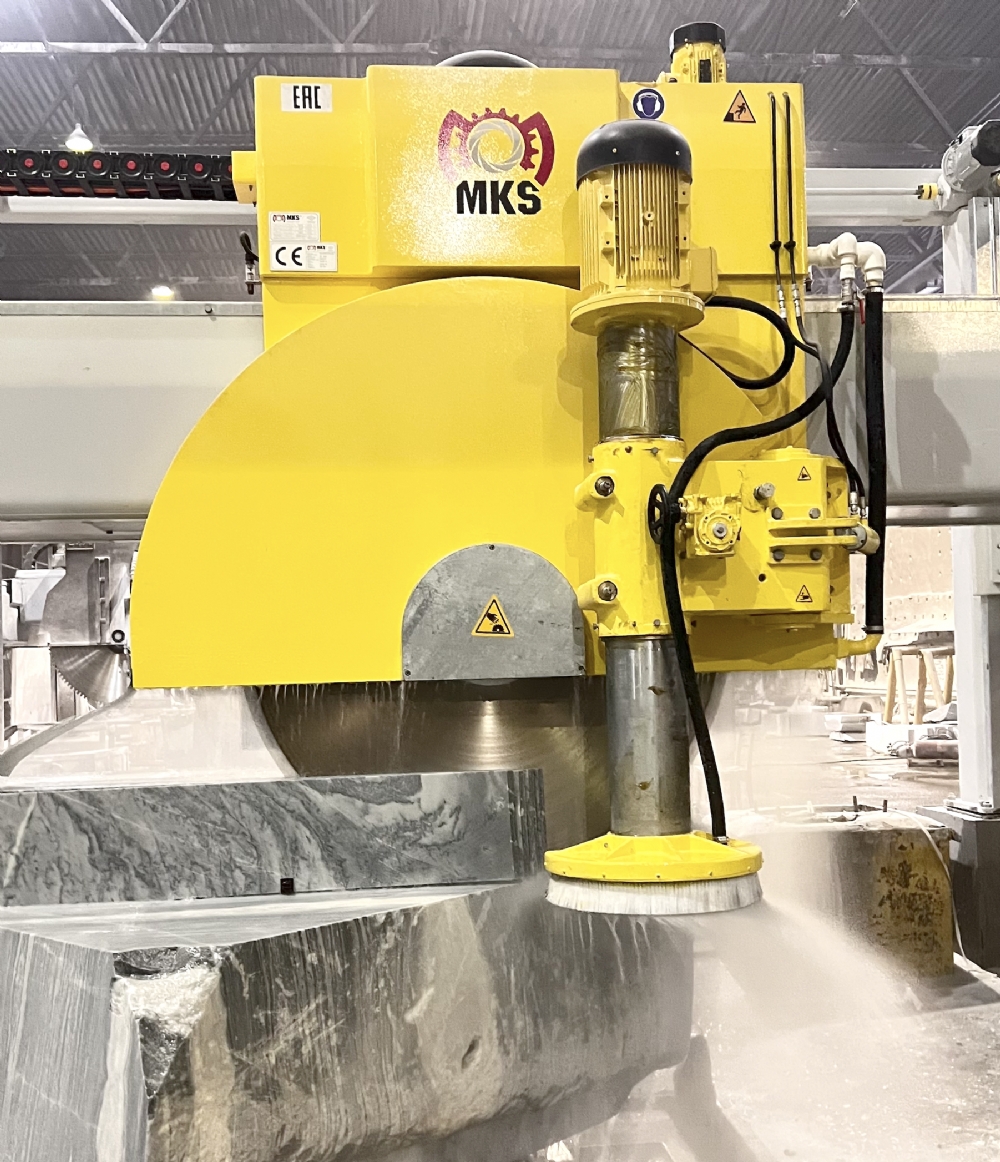

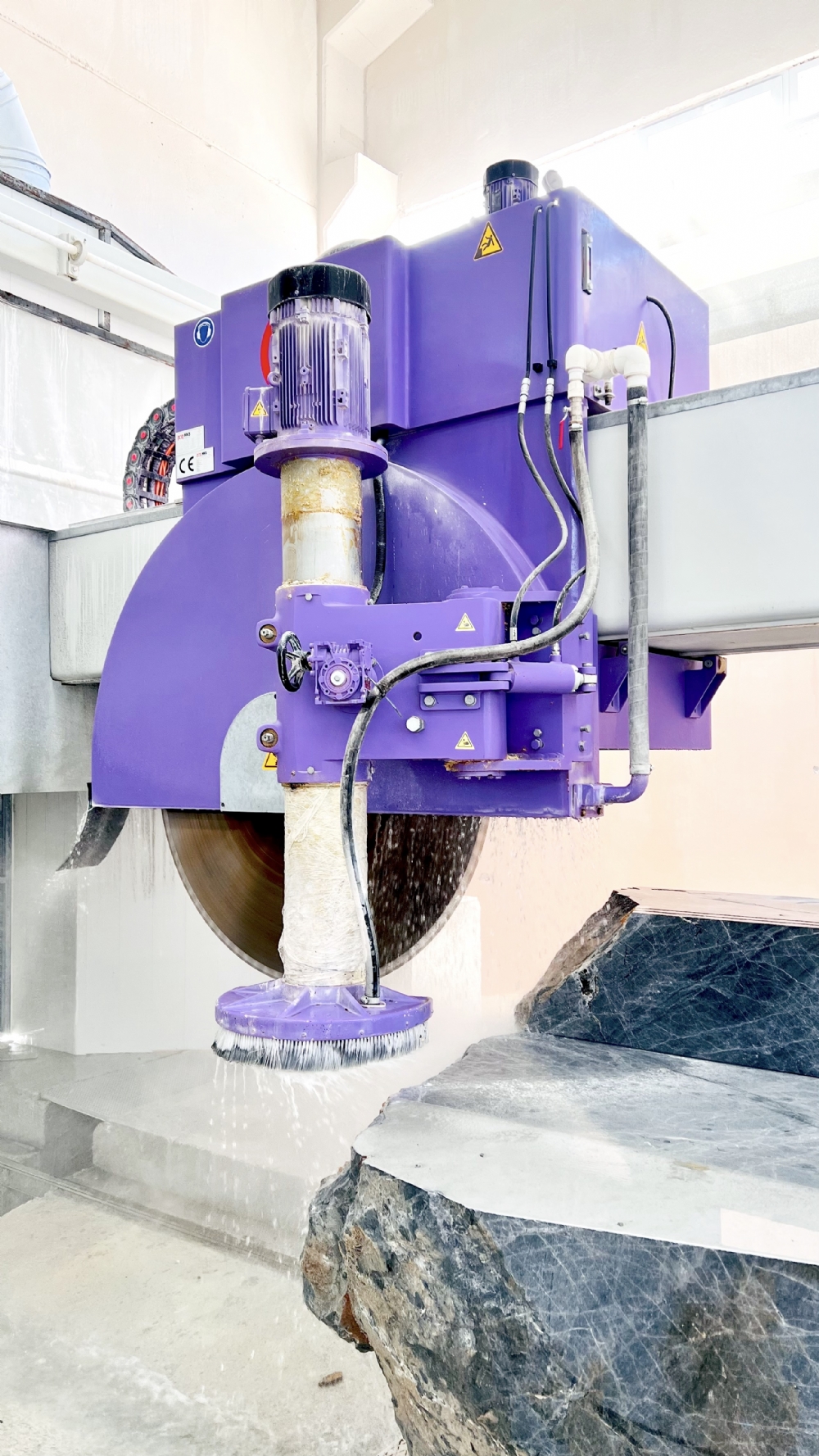

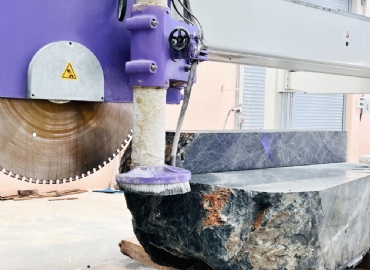

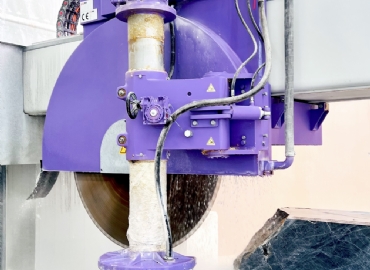

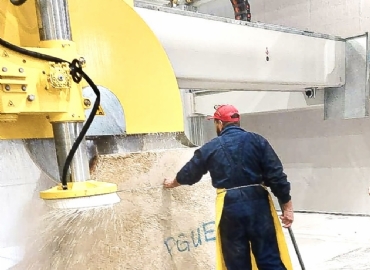

A Block Cutter/Cutting Machine Cuts Marble, Granite, Limestone, Travertine, Basalt & Natural Stone Blocks into Tiles/Strips.


TECHNICAL DATA ST Süper 1600ST Süper 1800
Vertical disc daimetermm1000-16001000-1800
Horizontal disc daimetermm450*450*
Vertical disc motor powerkw/hp160/214.5160/214.5
Horizontal disc motor powerkw/hp22/29.522/29.5
Bridge right-left movement motor powerkw/hp1.5/21.5/21.5/2
Bridge up-down movement motor powerkw/hp3/43/43/4
Cabin forward-backward movement motor powerkw/hp7.5/107.5/107.5/10
Horizontal disc open-close hydrolic motor powerkw/hp1.1/1.51.1/1.51.1/1.5
Trolley motor powerkw/hp2.2/32.2/32.2/3
Total electric powerkw/hp198/265198/265
Water requiredlt/min150-200150-200
Max. Block dimensions (Length x Width x Height)mm3500-2200**-24003400-2200**-2400
Overall dimensions (Length x Width x Height)mm8200 x 5350 x 48008200 x 5350 x 4800
Machine weightkg1750017500

* Yatay testere çapı isteğe bağlı büyütülebilir
* The horizontal dis daimeter can be increased optionally
** Kullanılan dikey testere çapına bağlıdır
** It depens on the diameter of the used vertical disc


Since 1978, we are proud of the rightful trust in our machines that have been working successfully in the country and in the world, and we are in an effort to offer you quality.
