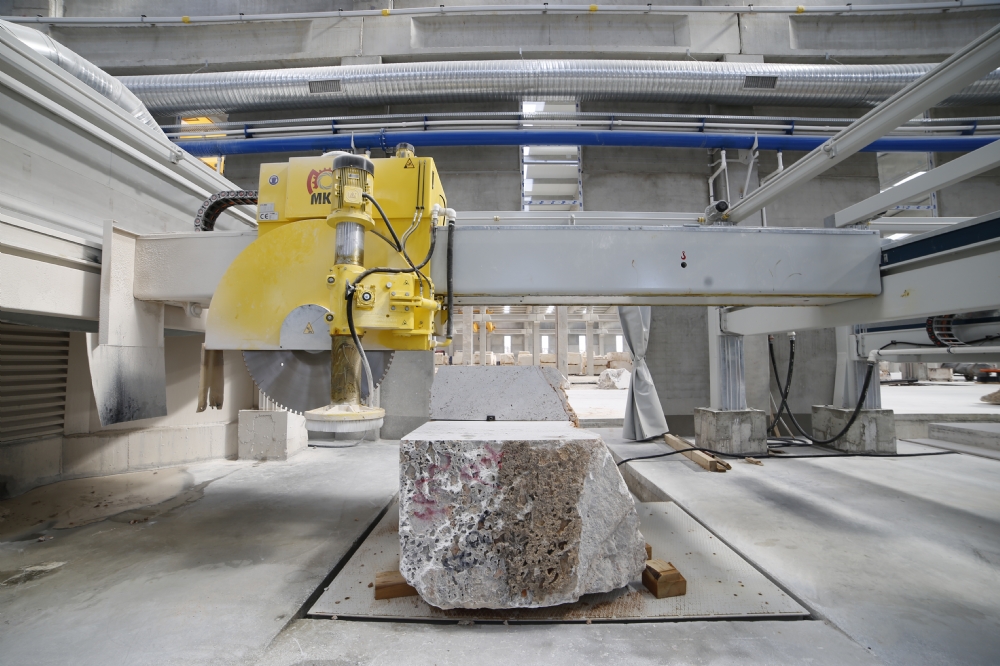

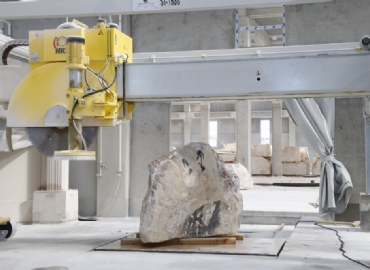

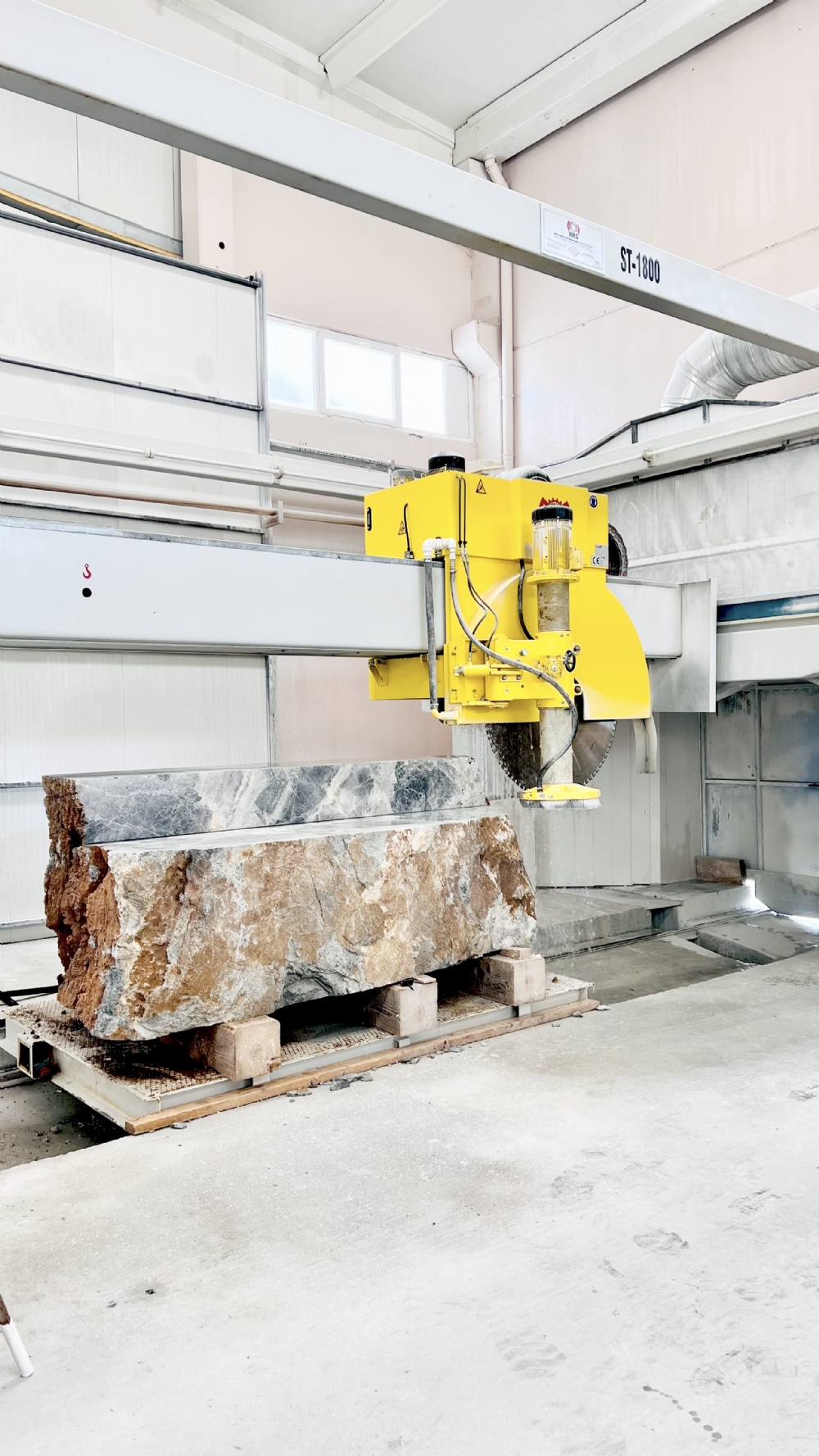

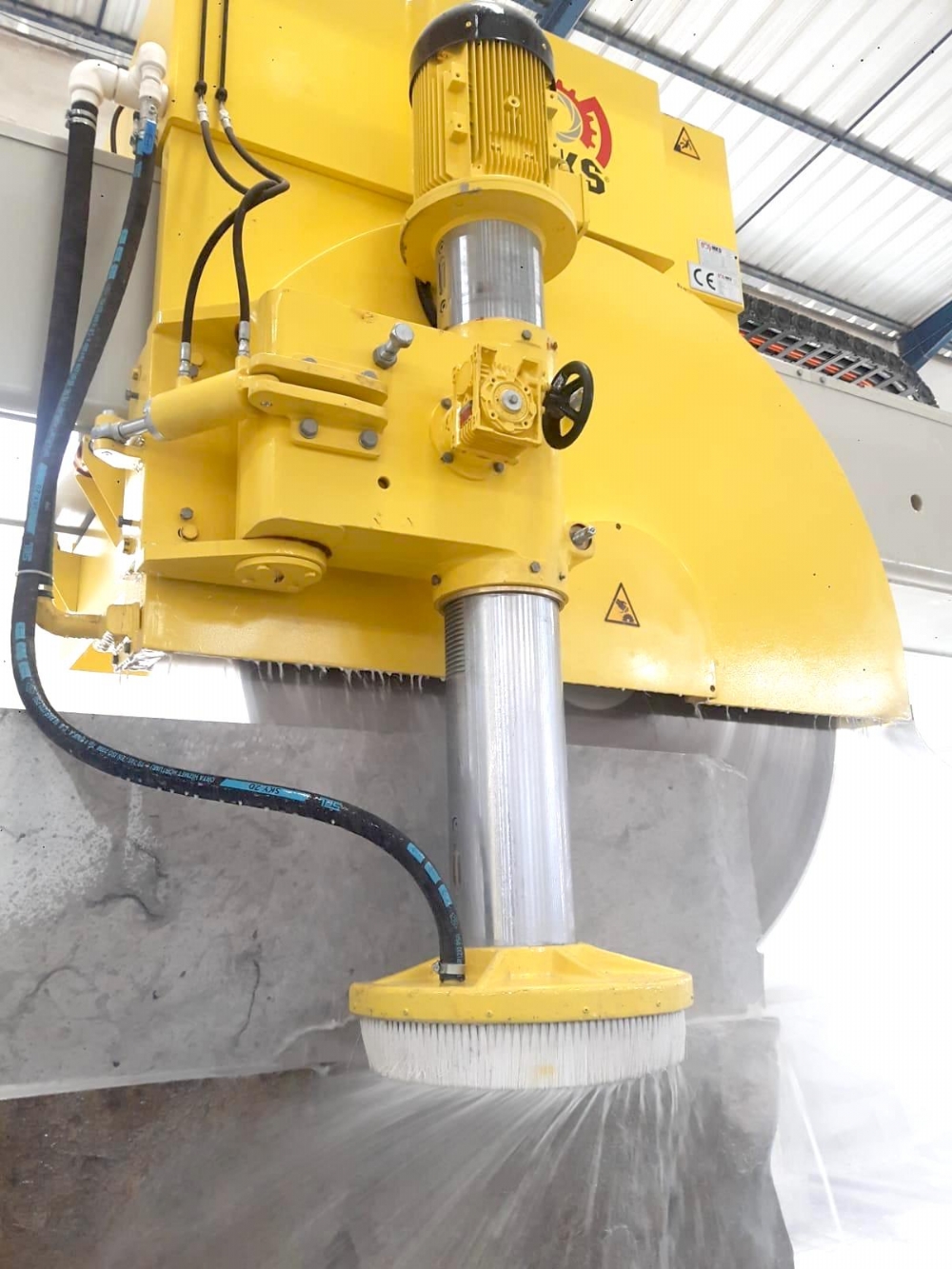

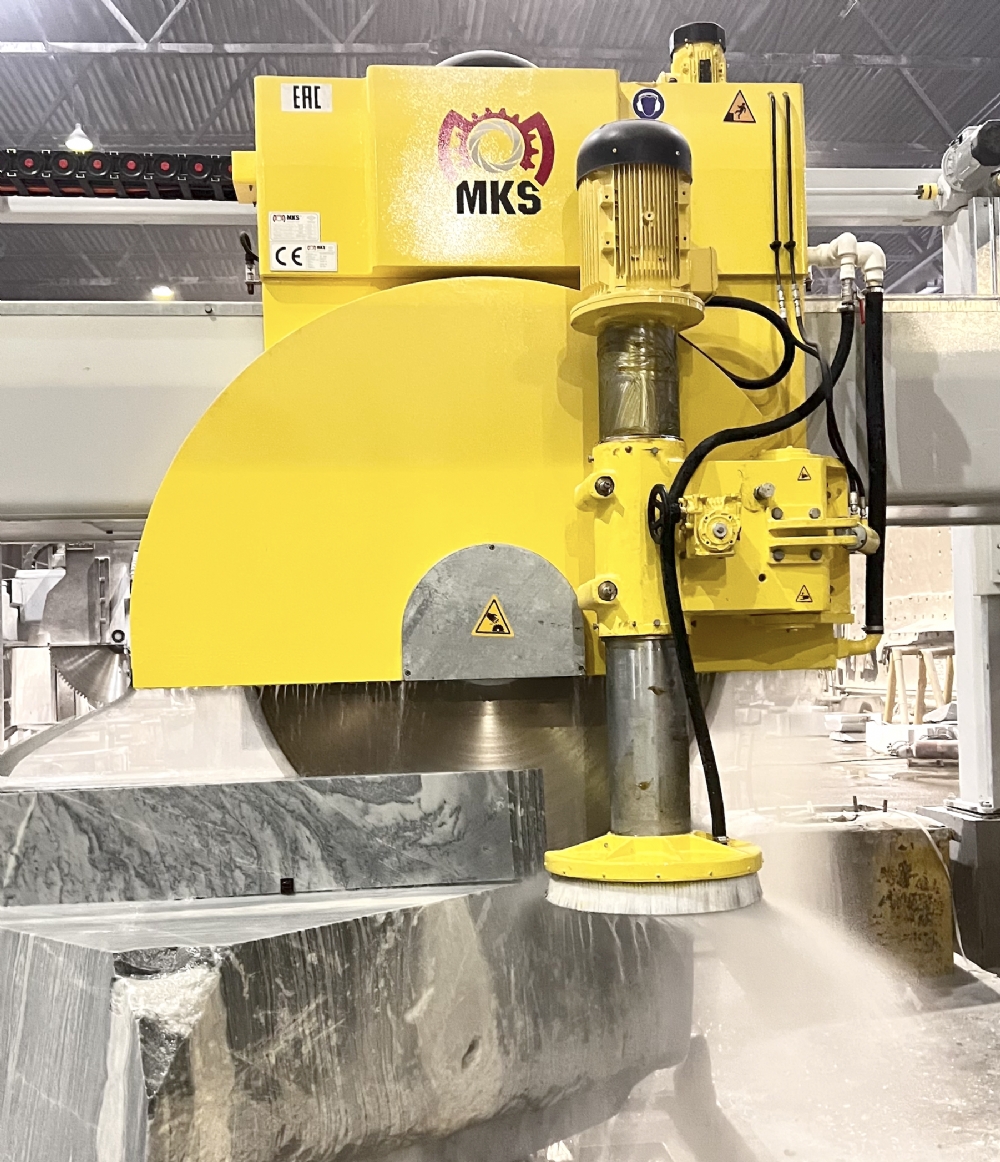

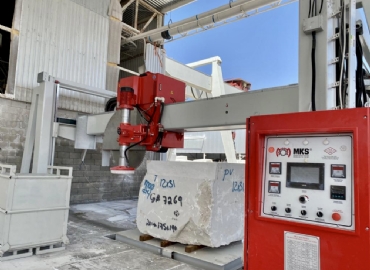

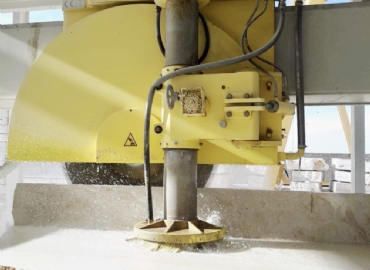

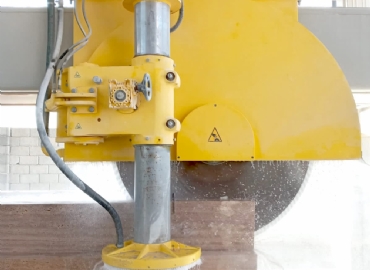

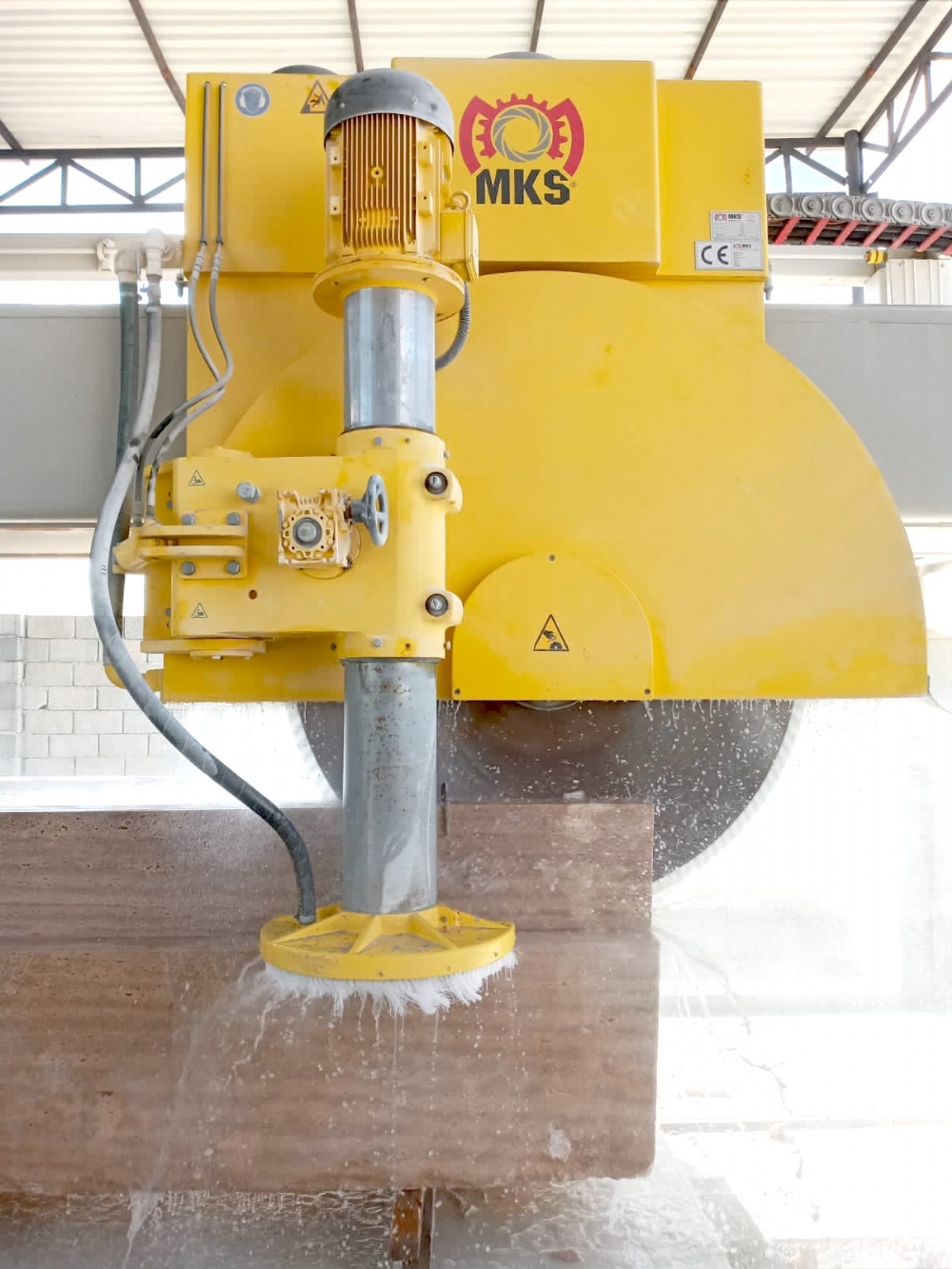

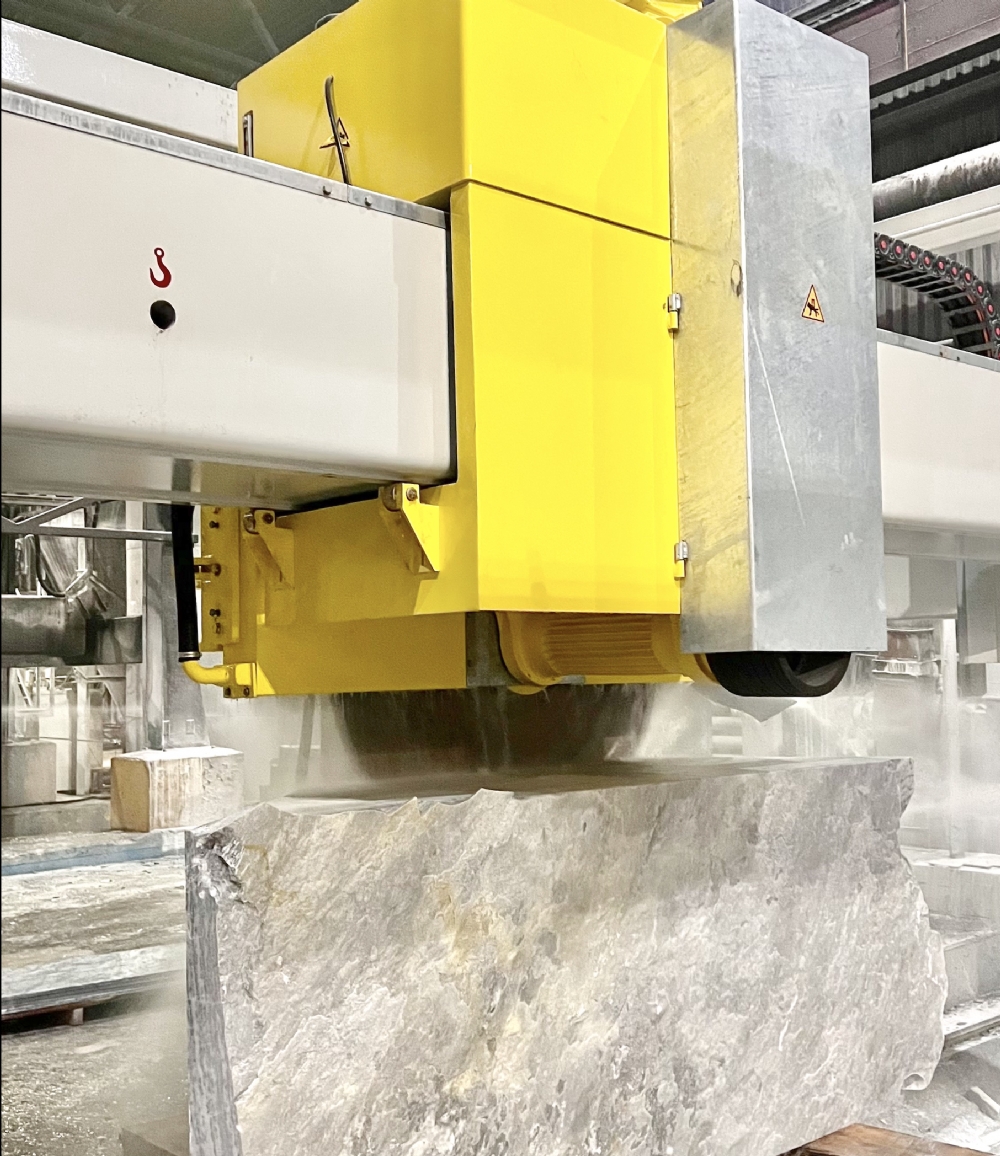

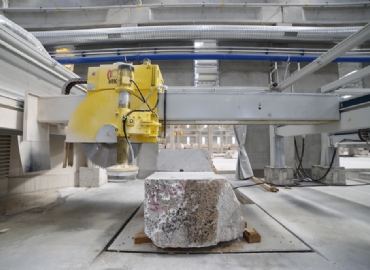

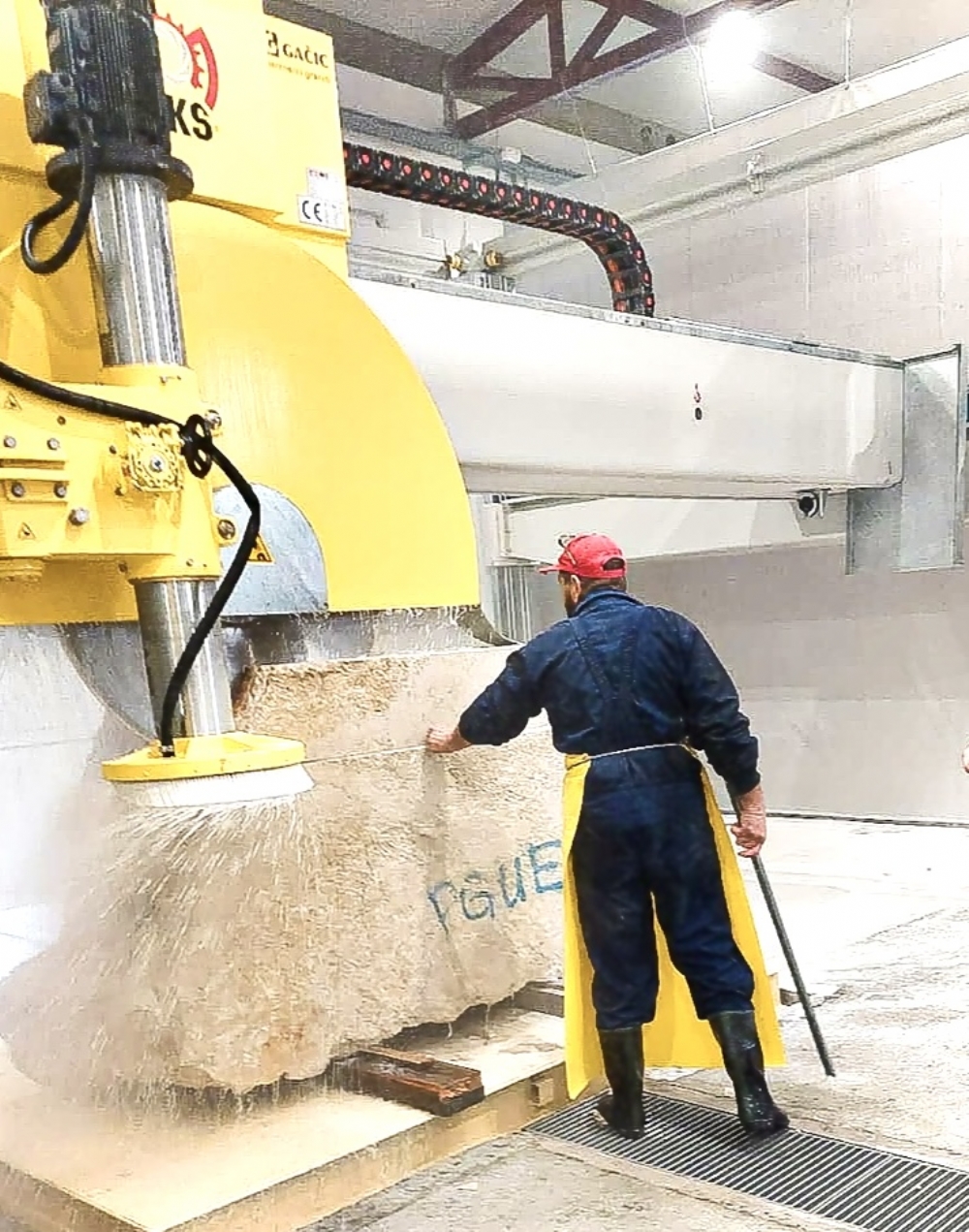

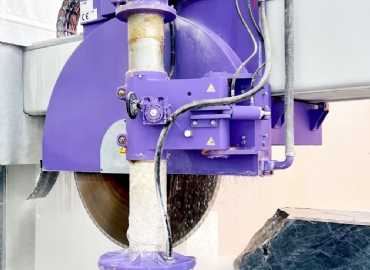

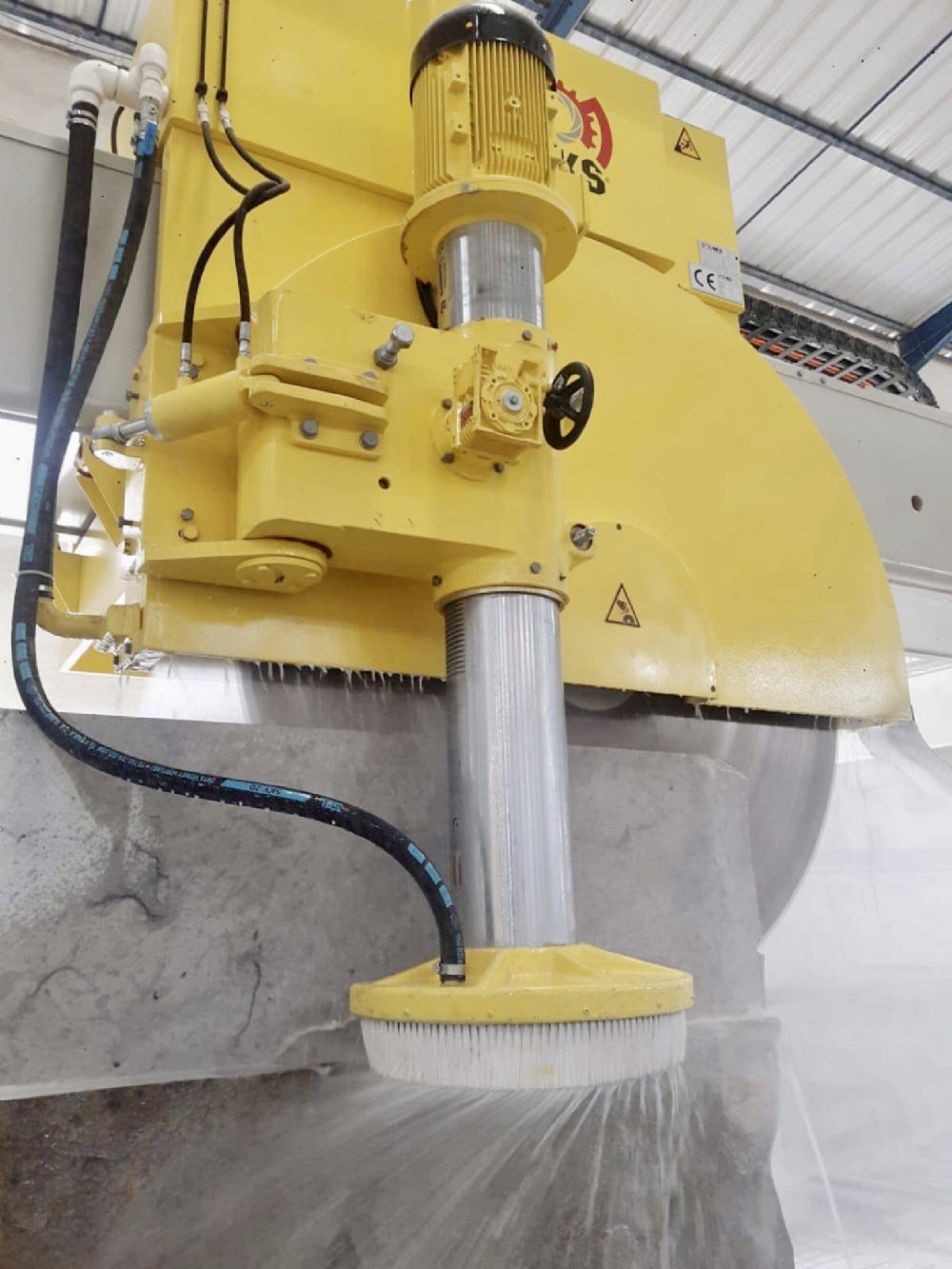

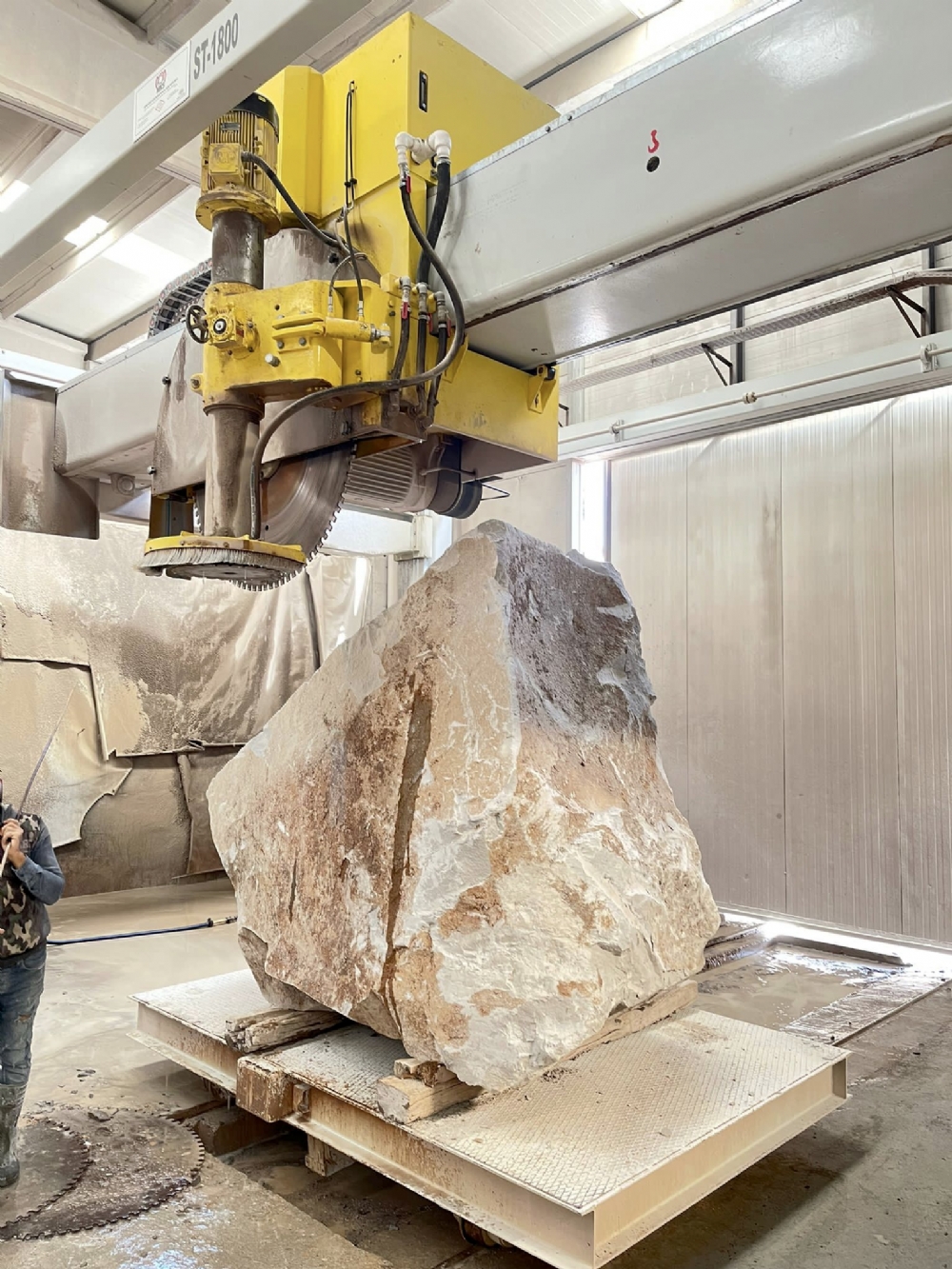

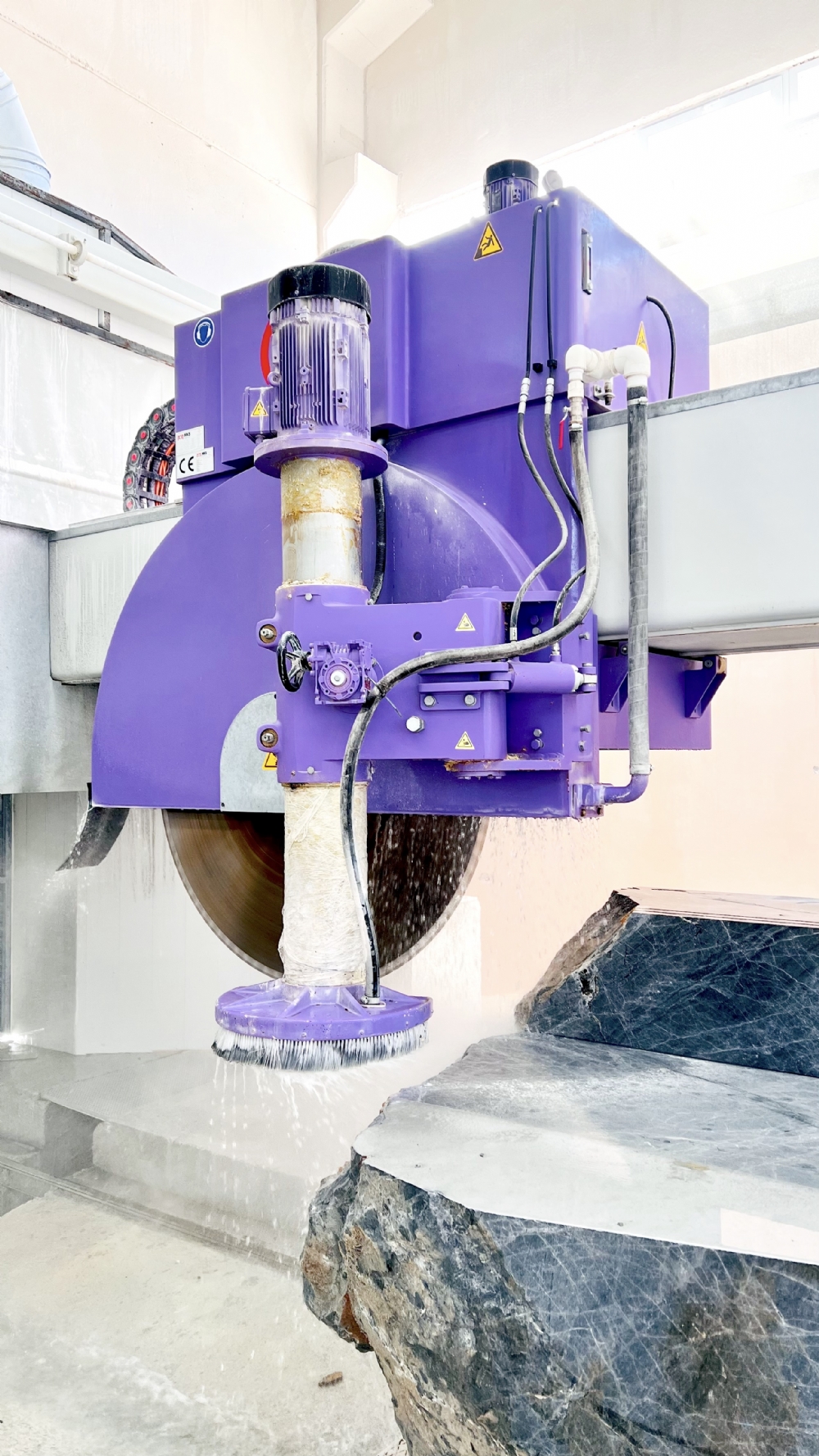

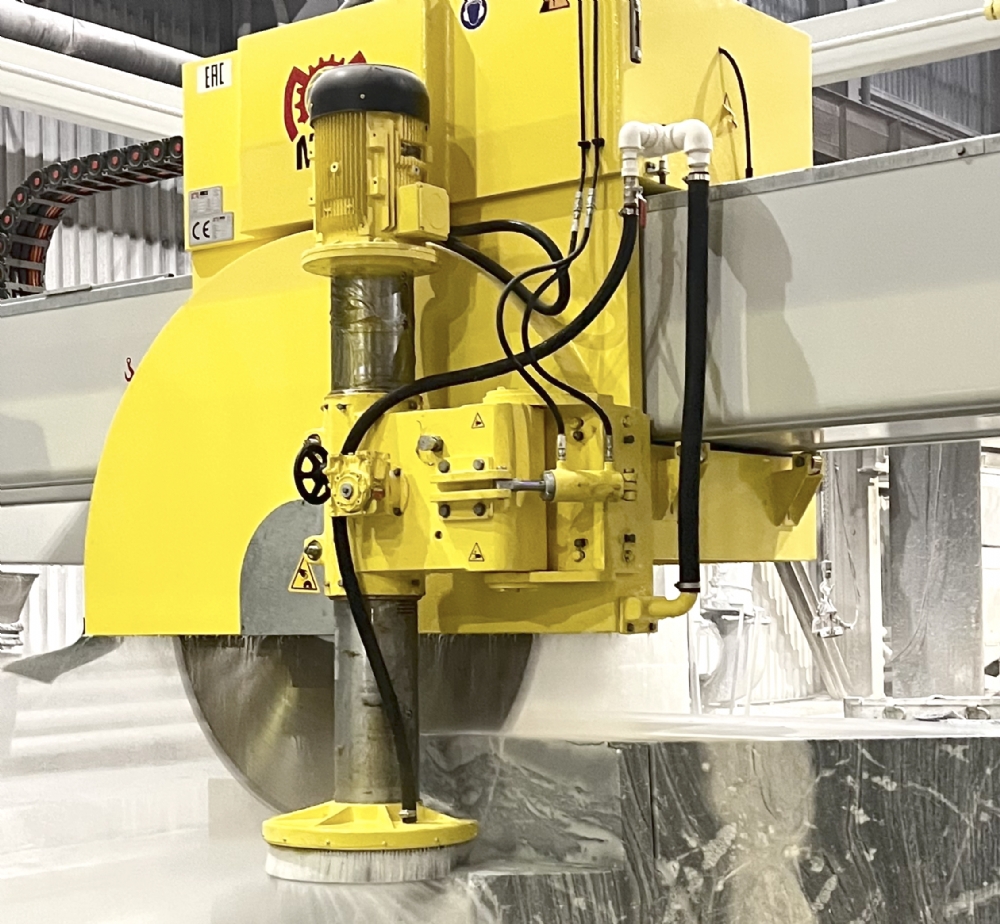

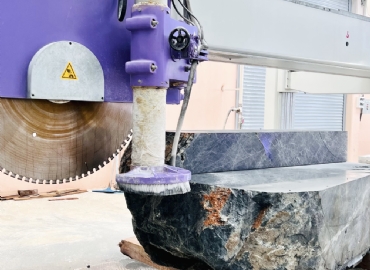

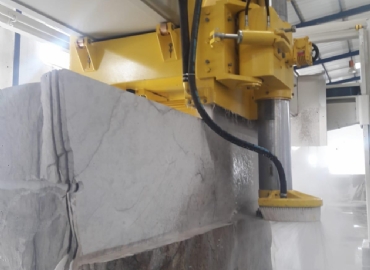

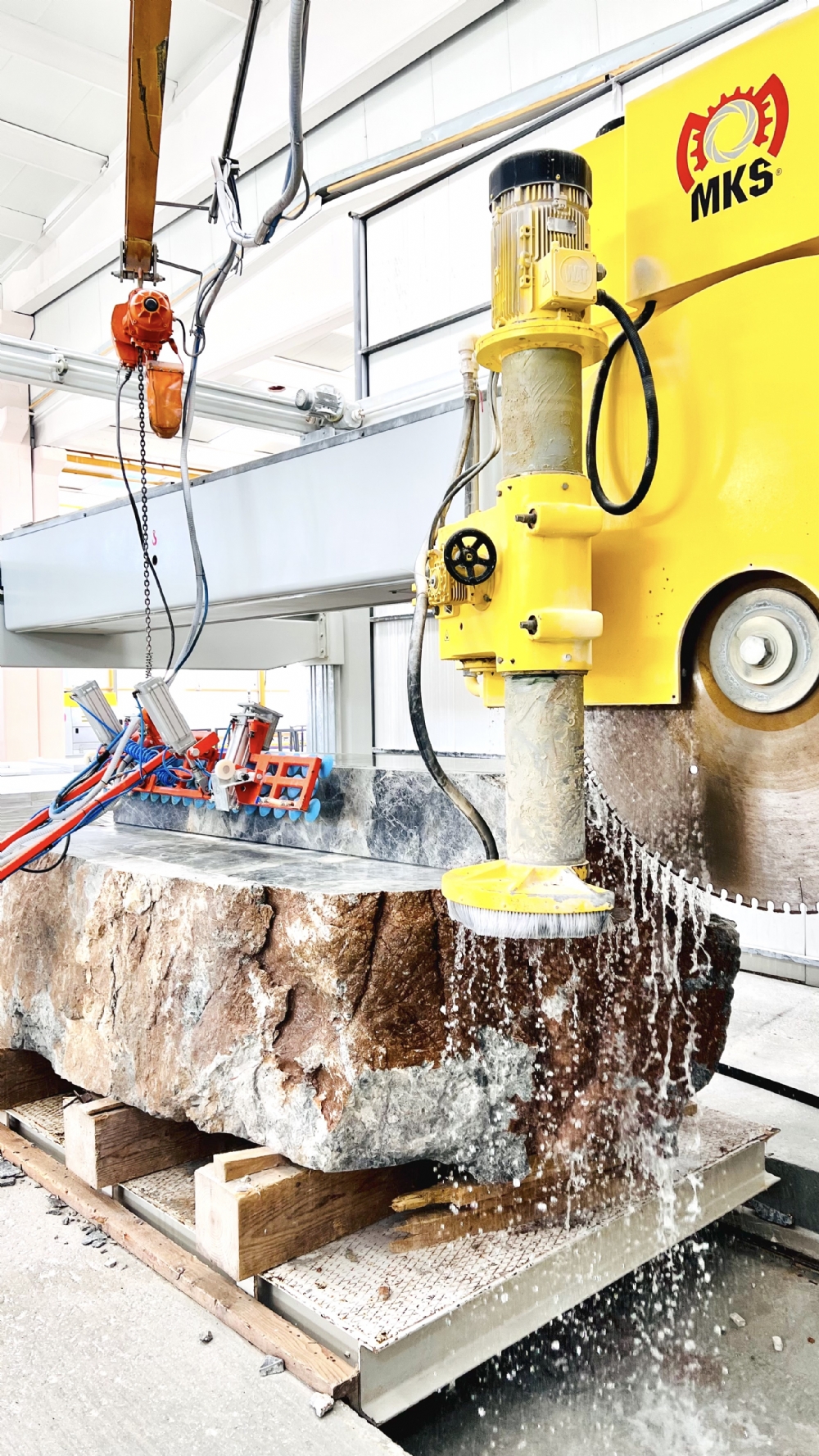

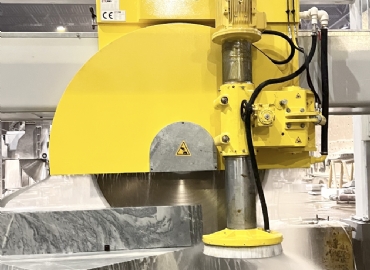

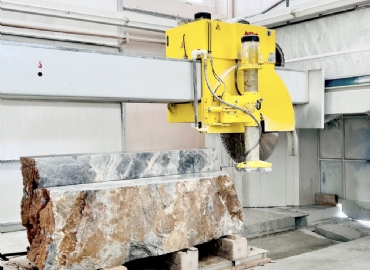

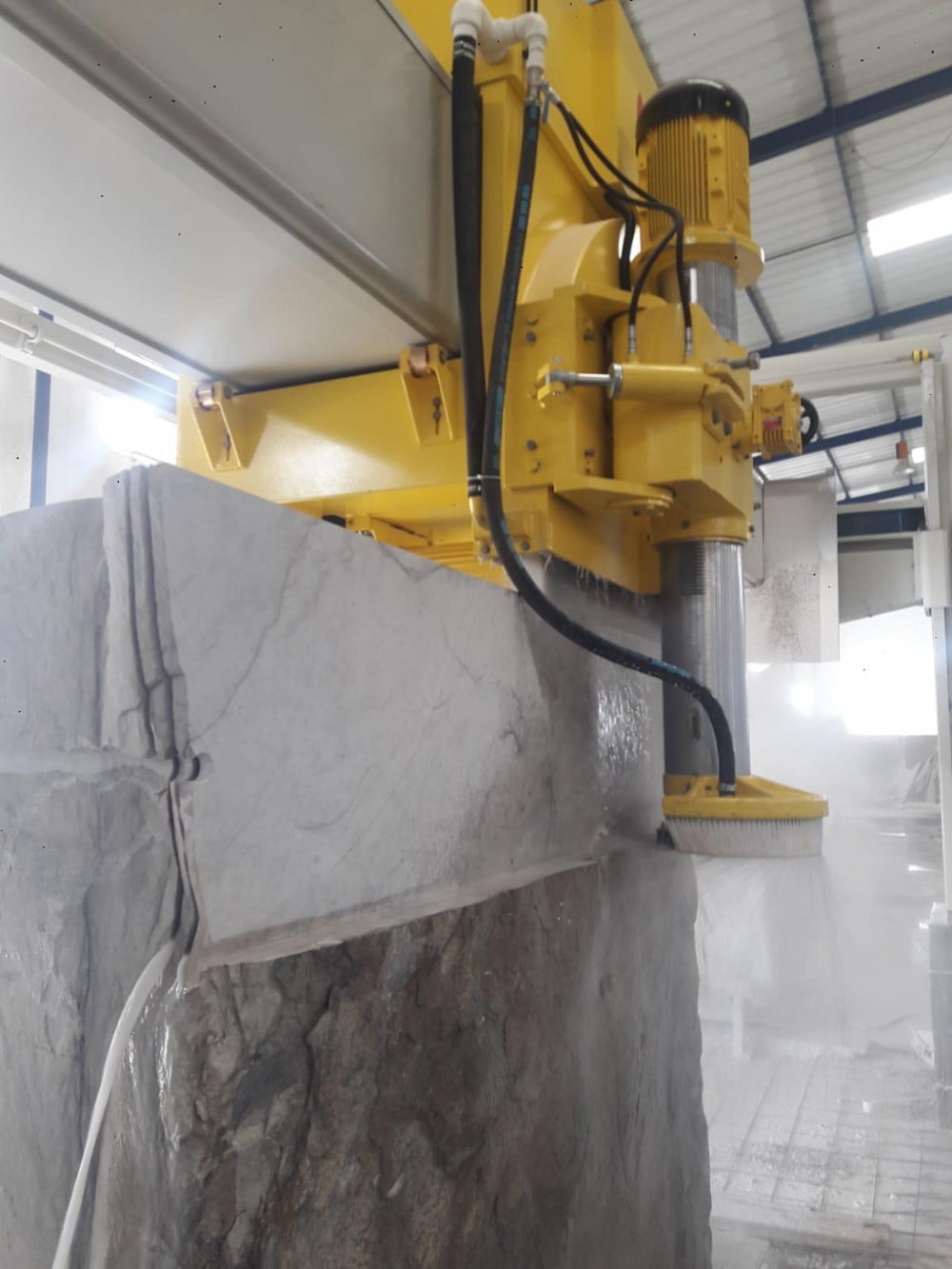

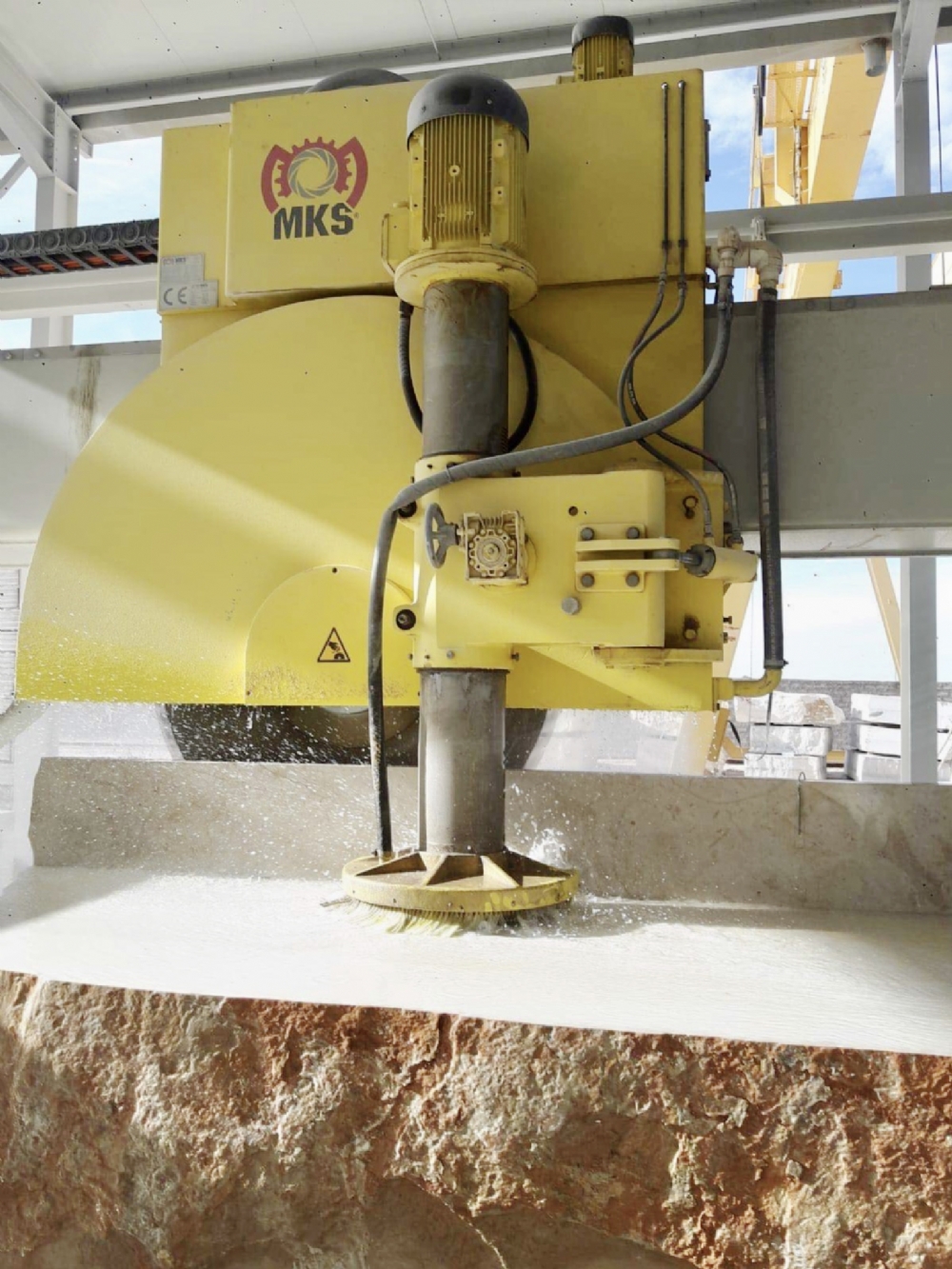

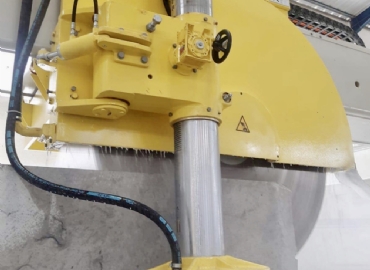

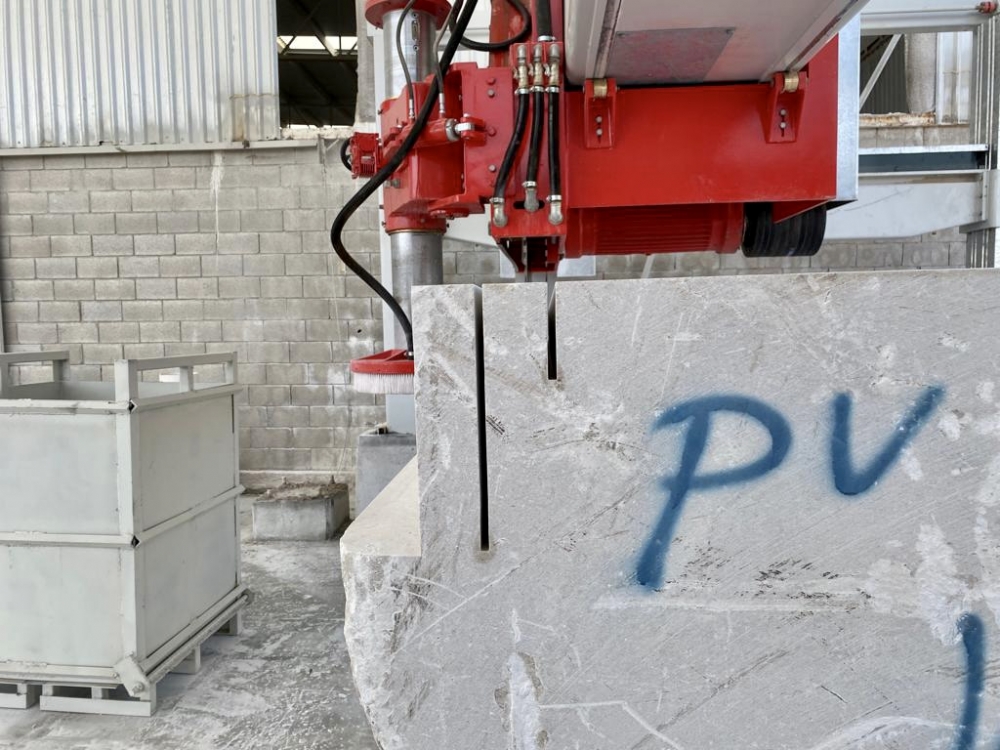

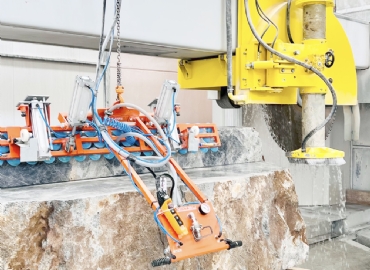

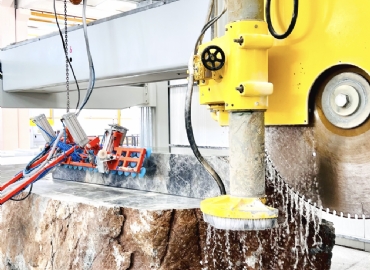

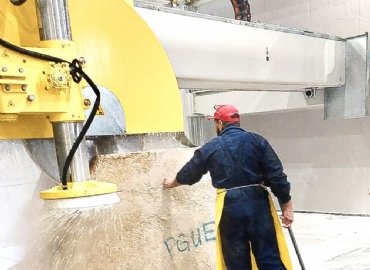

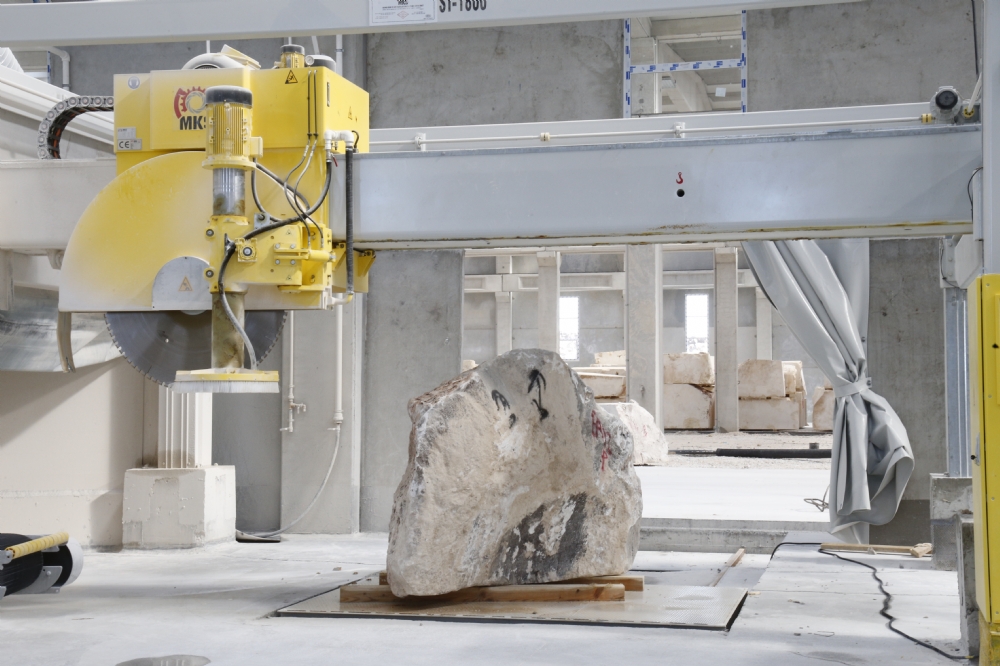

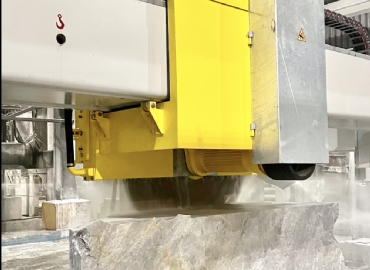

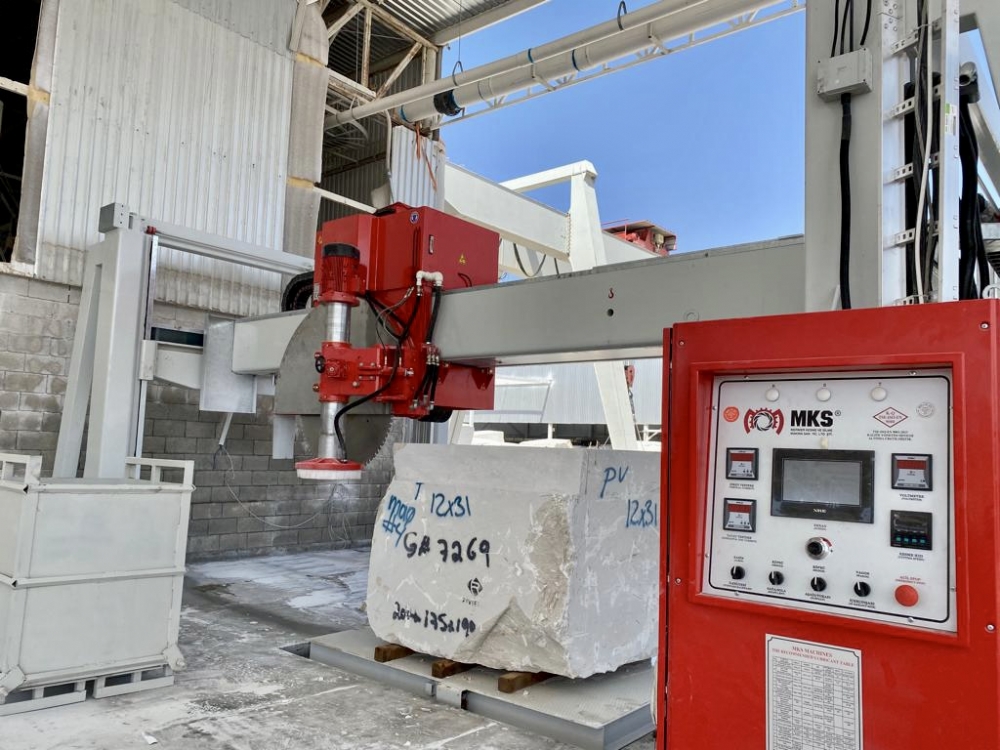

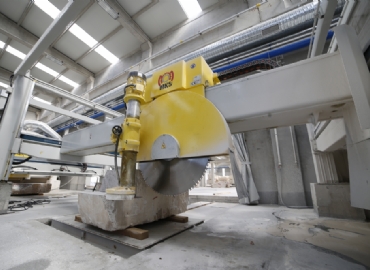

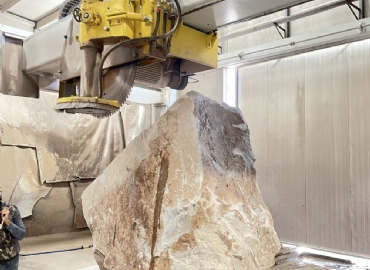

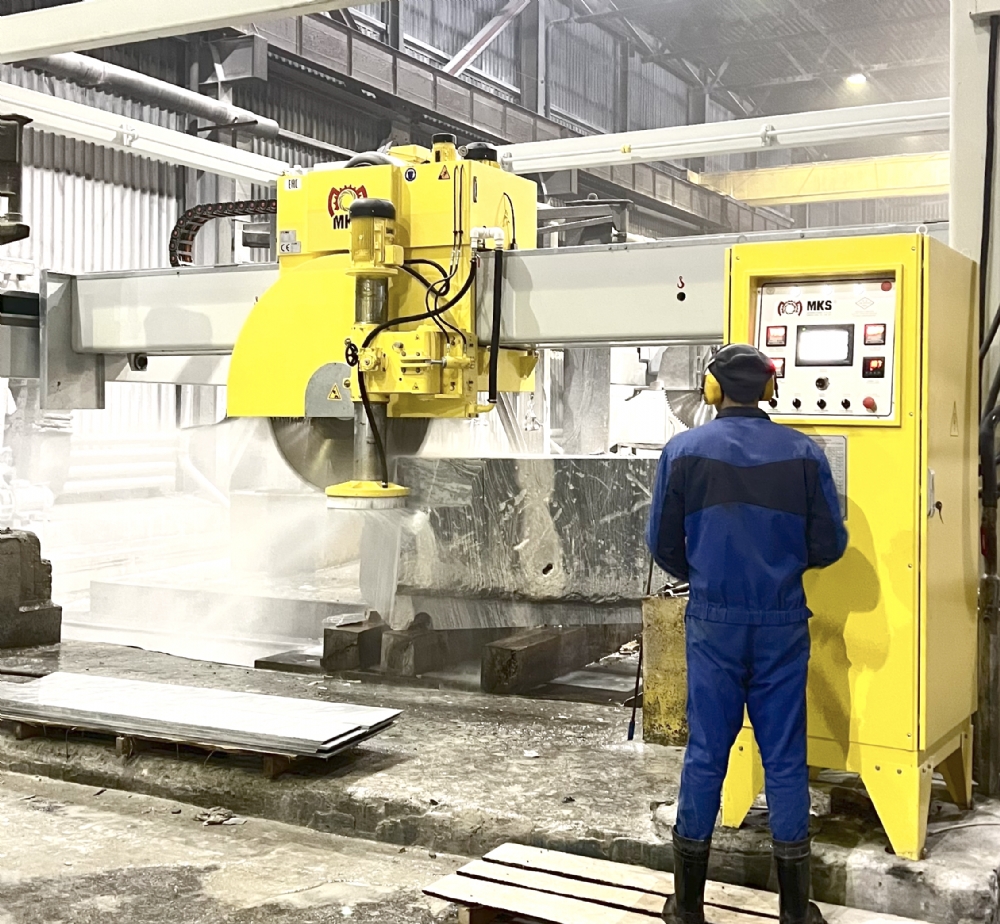

A Block Cutter/Cutting Machine Cuts Marble, Granite, Limestone, Travertine, Basalt & Natural Stone Blocks into Tiles/Strips.
| TECHNICAL DATA | ST Y.Süper 1400 | ST Y.Süper 1600 | ST Y.Süper 1800 | |
|---|---|---|---|---|
| Vertical disc daimeter | mm | 1000-1400 | 1000-1600 | 1000-1800 |
| Horizontal disc daimeter | mm | 450* | 450* | 450* |
| Vertical disc motor power | kw/hp | 132/177 | 132/177 | 132/177 |
| Horizontal disc motor power | kw/hp | 18.5/25 | 18.5/25 | 18.5/25 |
| Bridge right-left movement motor power | kw/hp | 1.5/2 | 1.5/2 | 1.5/2 |
| Bridge up-down movement motor power | kw/hp | 3/4 | 3/4 | 3/4 |
| Cabin forward-backward movement motor power | kw/hp | 7.5/10 | 7.5/10 | 7.5/10 |
| Horizontal disc open-close hydrolic motor power | kw/hp | 1.1/1.5 | 1.1/1.5 | 1.1/1.5 |
| Trolley motor power | kw/hp | 2.2/3 | 2.2/3 | 2.2/3 |
| Total electric power | kw/hp | 166/222 | 166/222 | 166/222 |
| Water required | lt/min | 100-150 | 100-150 | 100-150 |
| Max. Block dimensions (Length x Width x Height) | mm | 3600-2200**-2400 | 3500-2200**-2400 | 3500-2200**-2400 |
| Overall dimensions (Length x Width x Height) | mm | 8200 x 5350 x 4800 | 8200 x 5350 x 4800 | 8200 x 5350 x 4800 |
| Machine weight | kg | 17000 | 17000 | 17000 |
| * Yatay testere çapı isteğe bağlı büyütülebilir * The horizontal dis daimeter can be increased optionally | ** Kullanılan dikey testere çapına bağlıdır ** It depens on the diameter of the used vertical disc | |||
