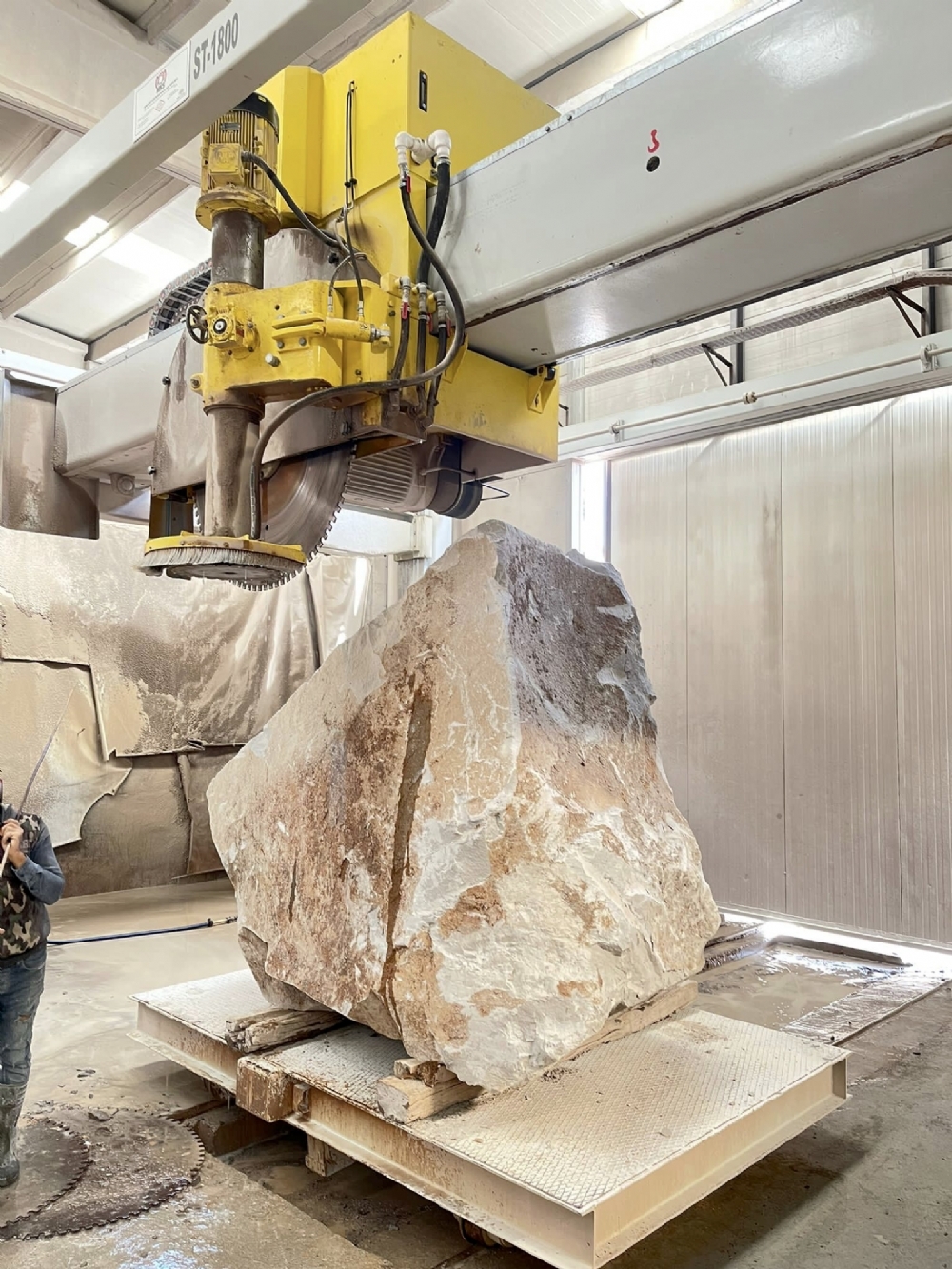

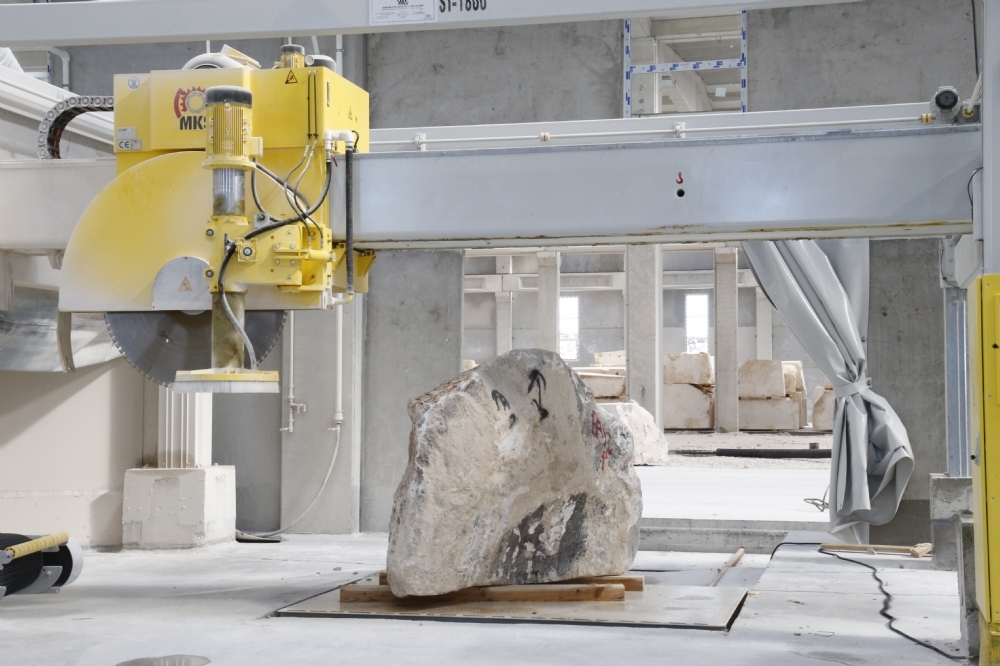

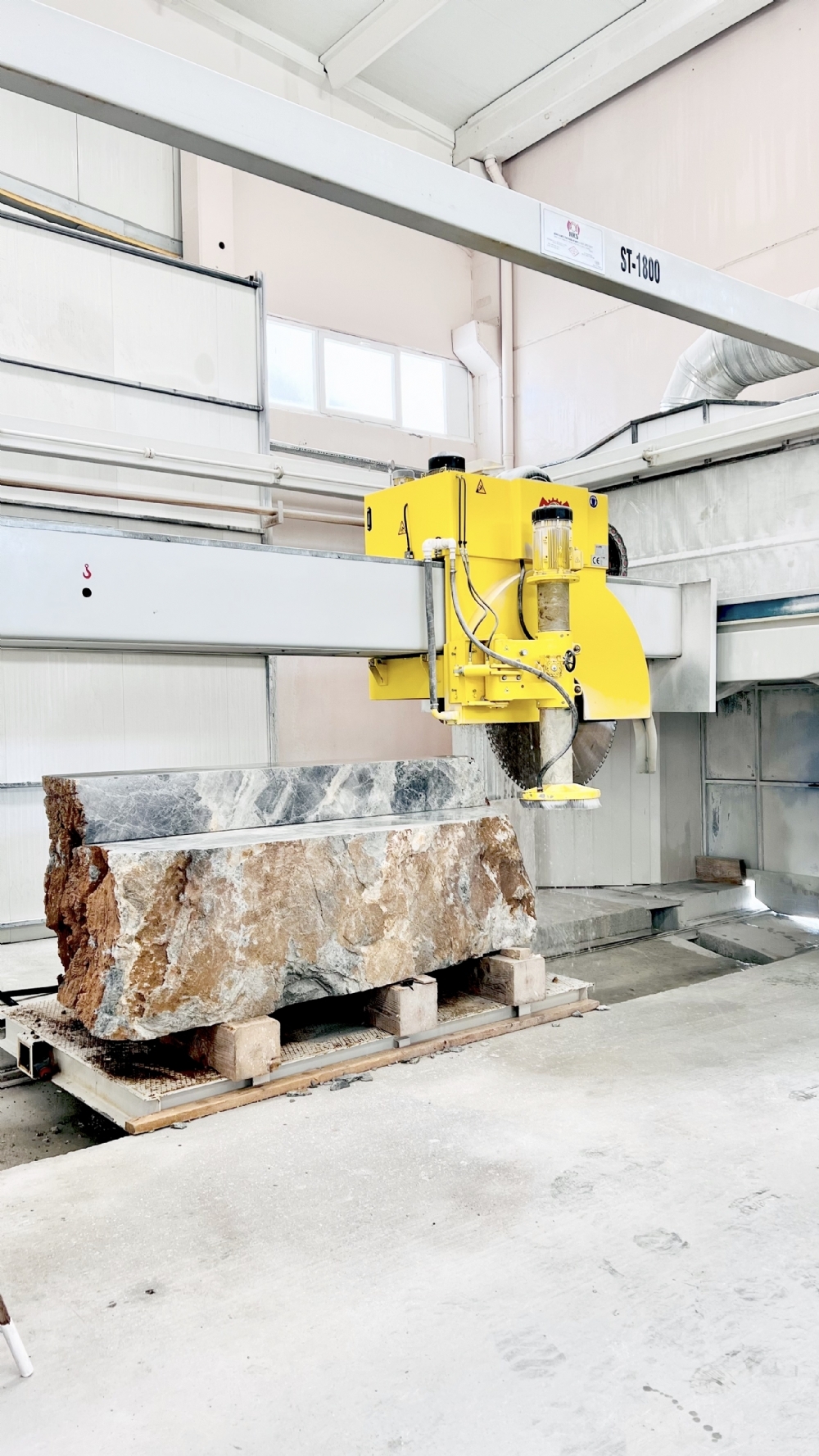

Block Cutter ST 1800

Technicial Specifications

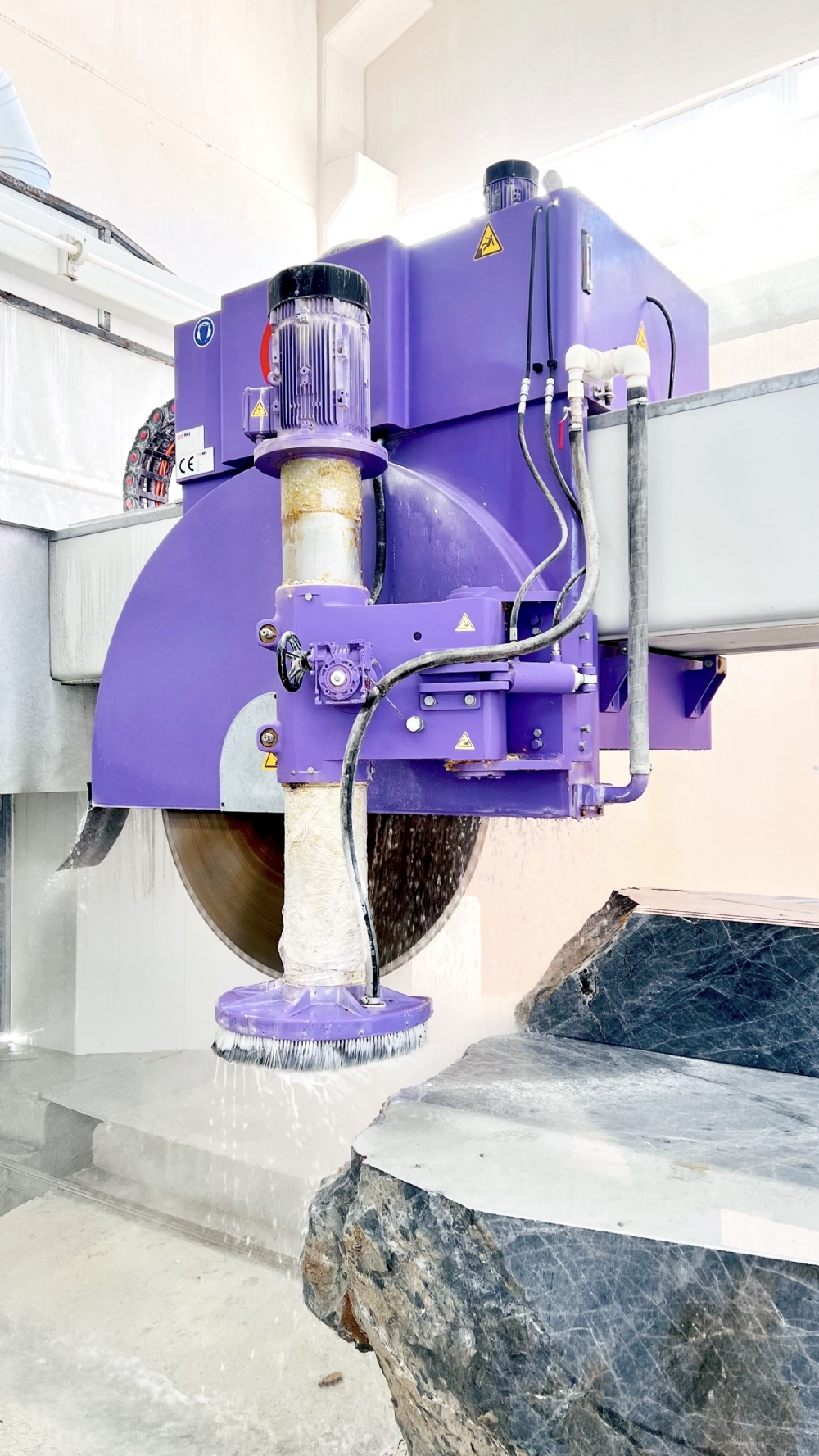

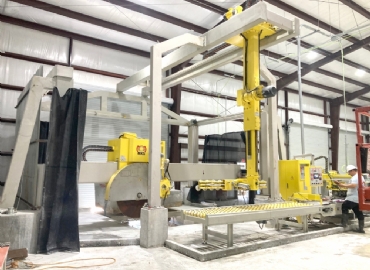

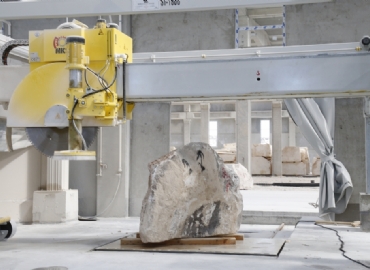

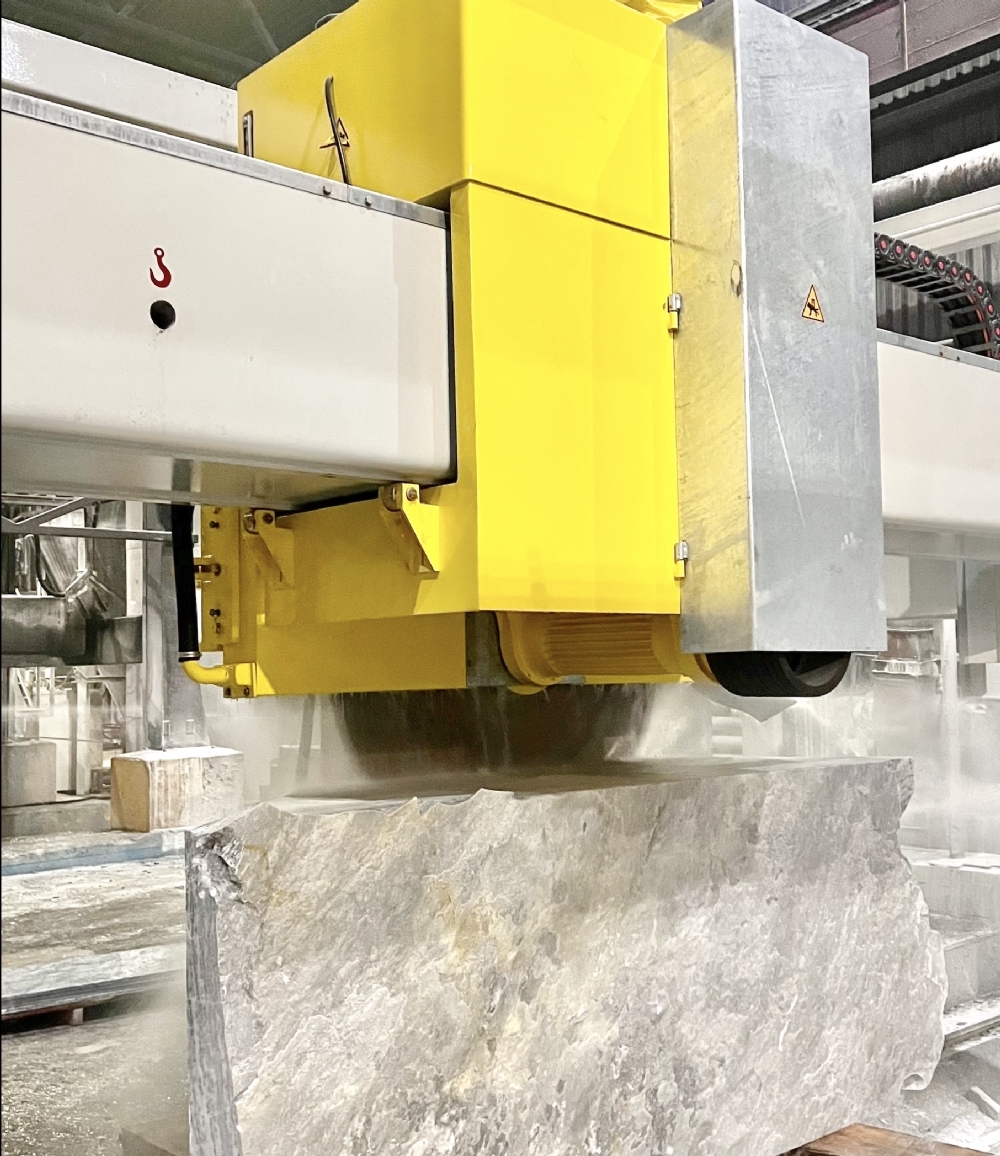

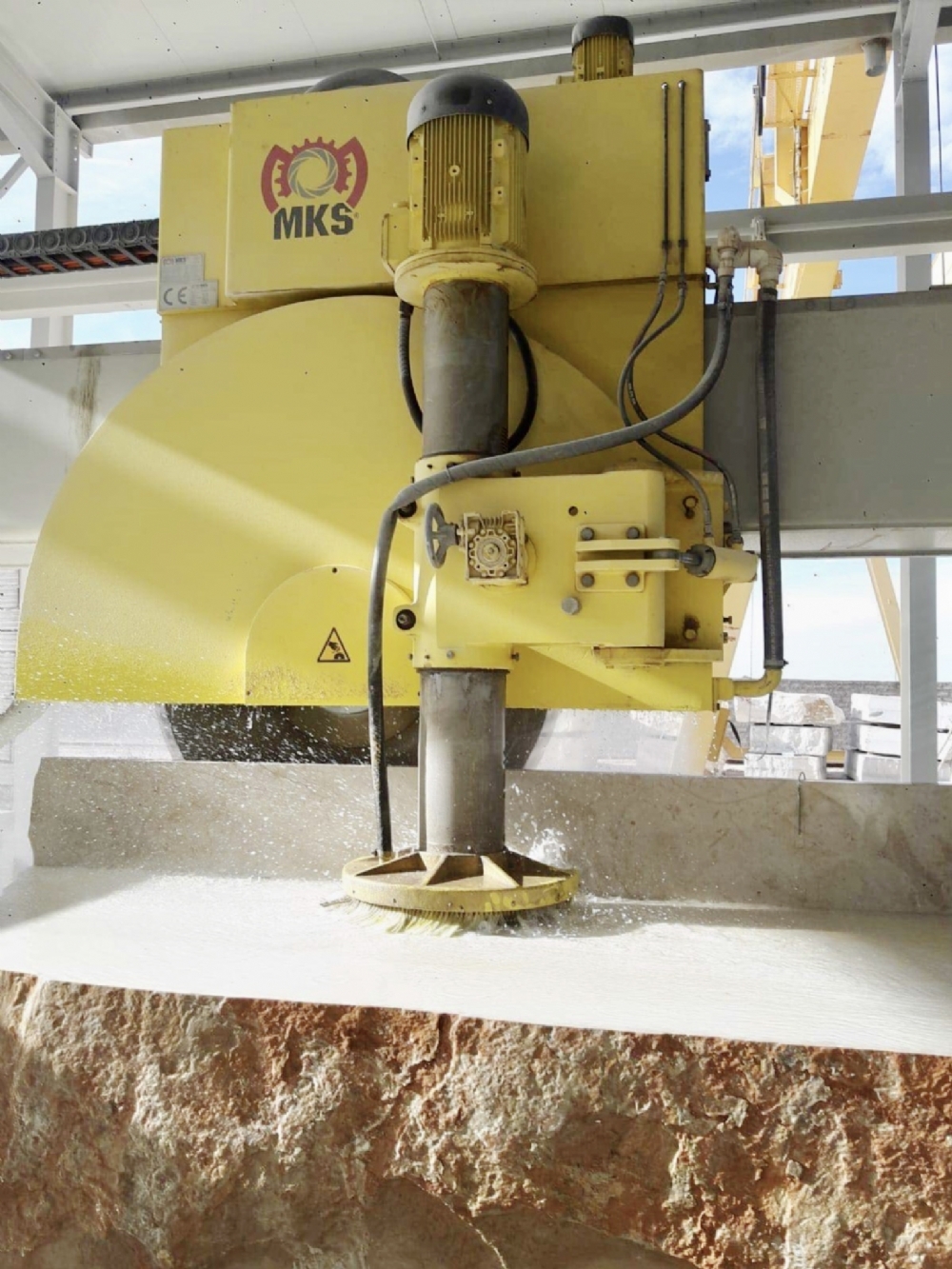

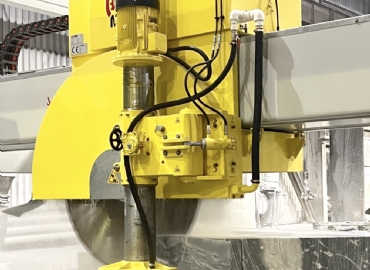

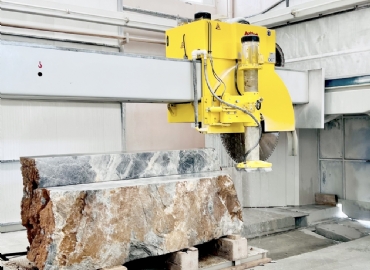

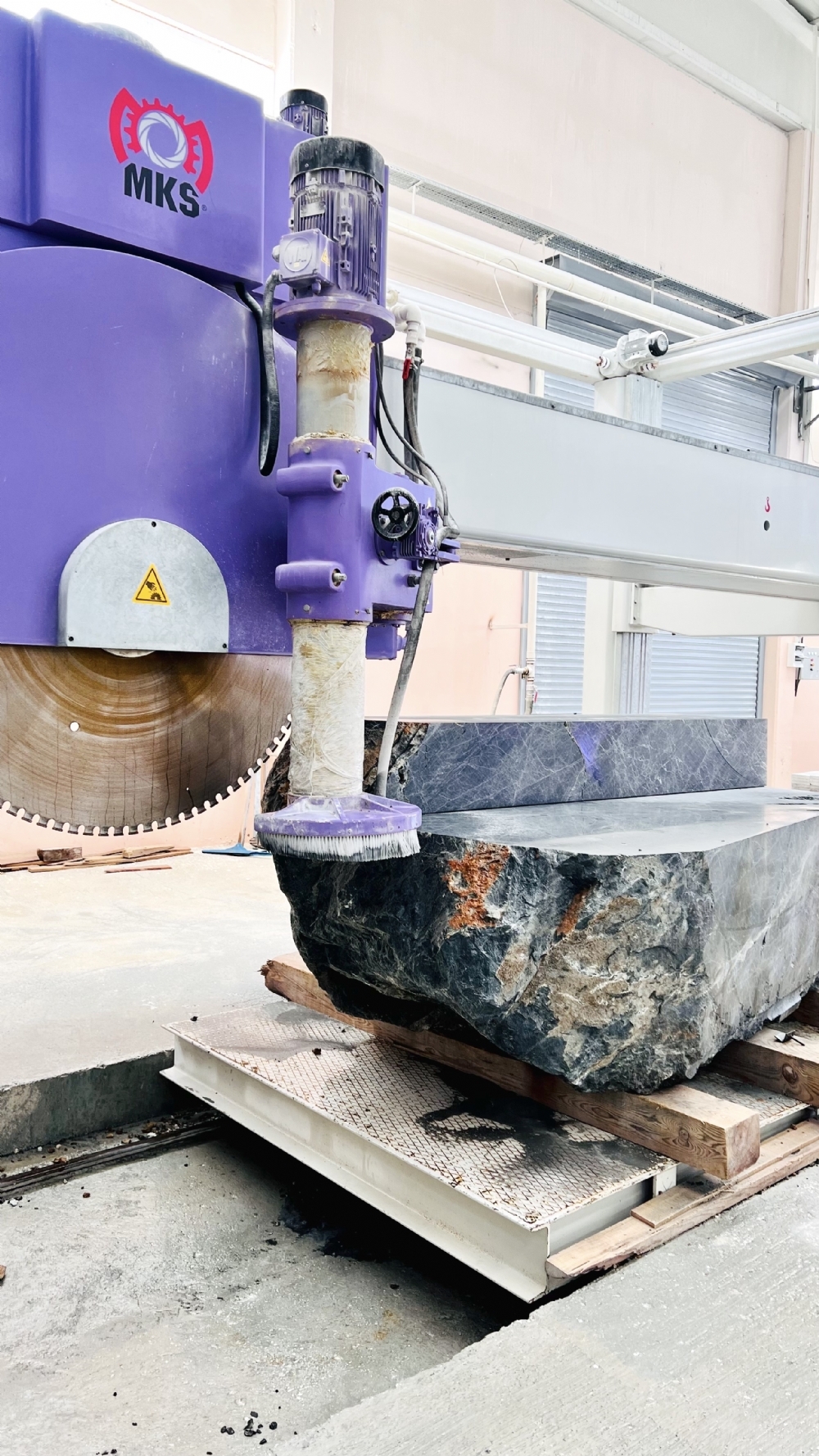

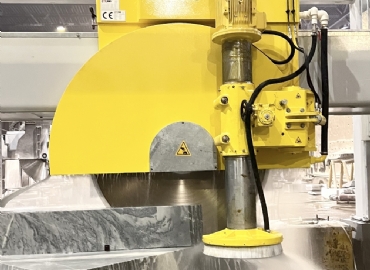

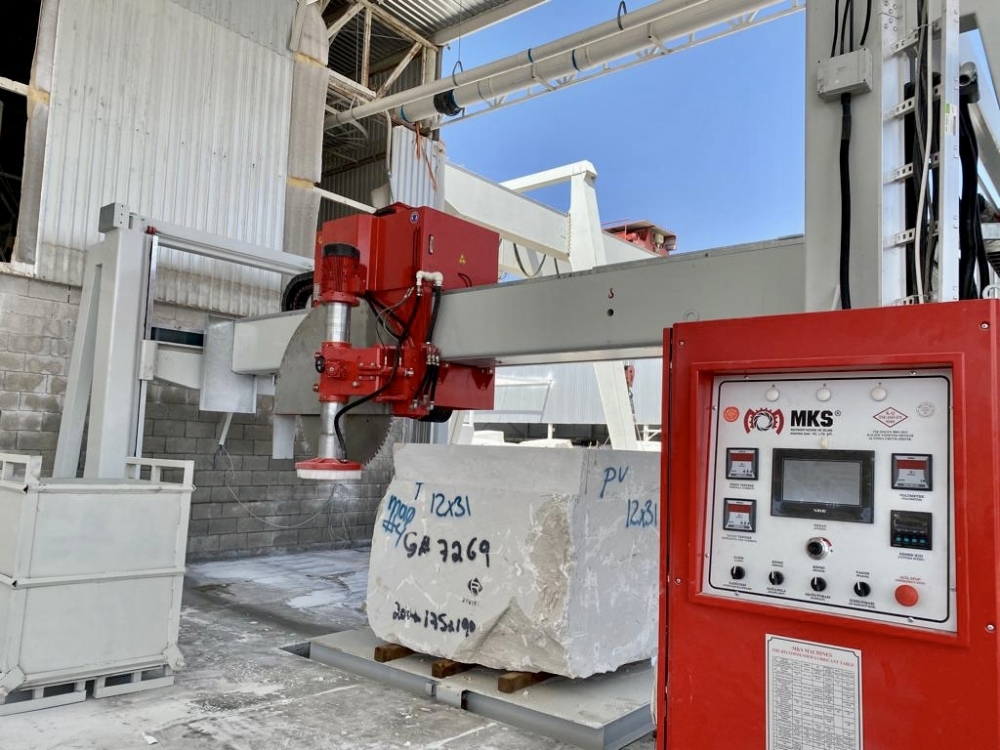

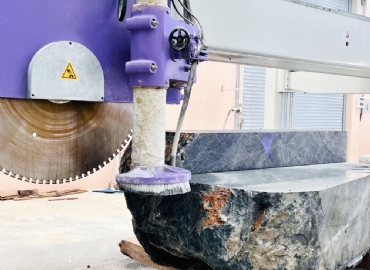

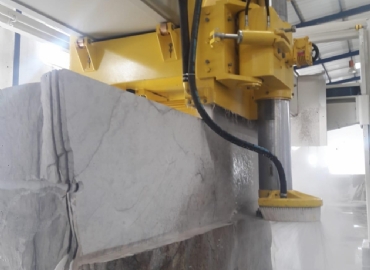

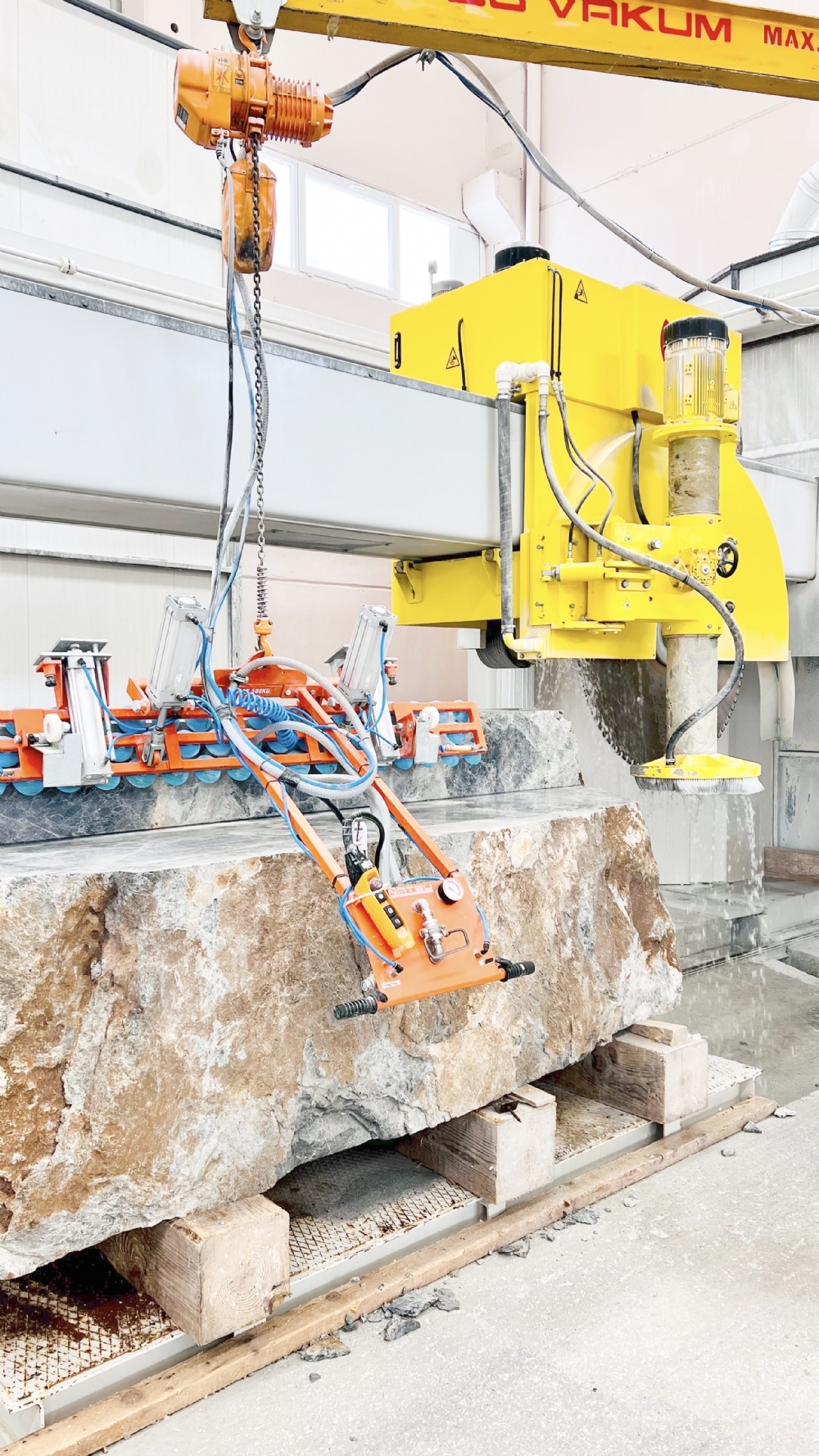

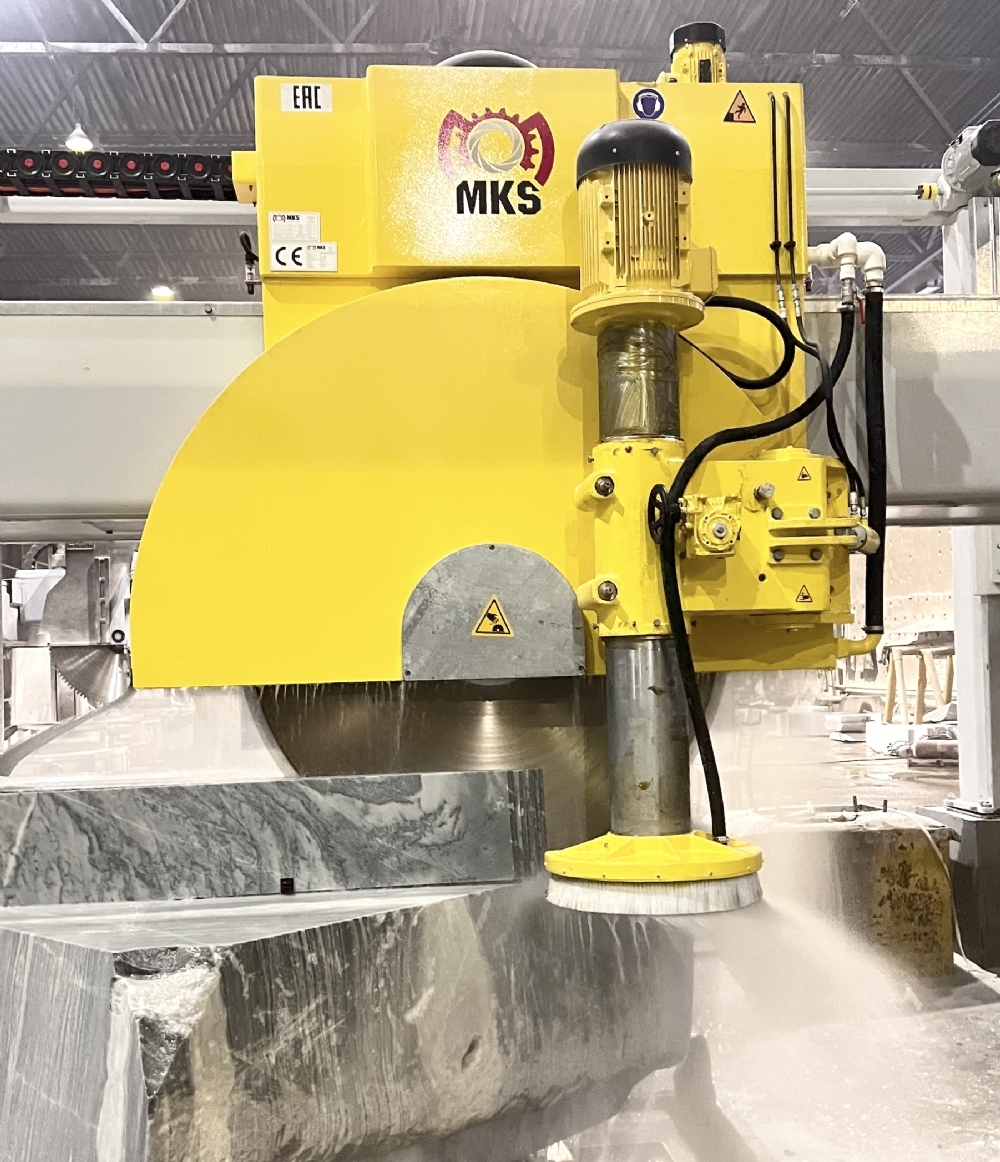

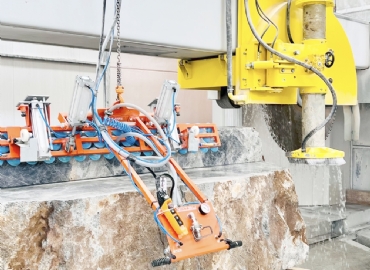

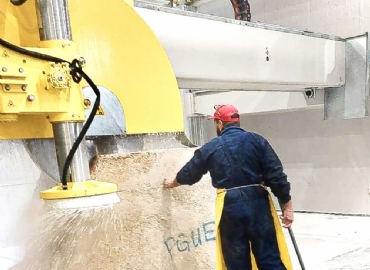

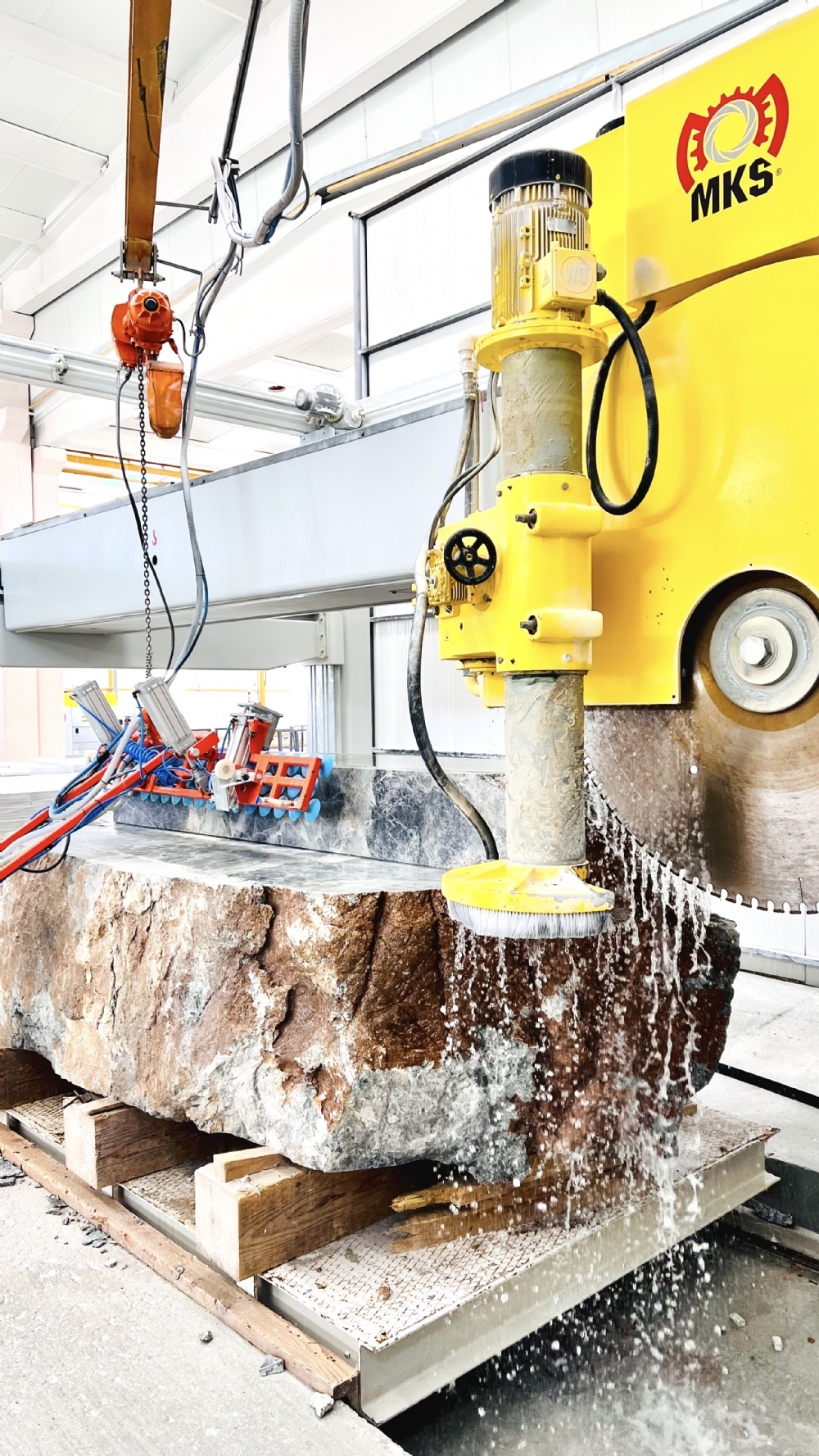

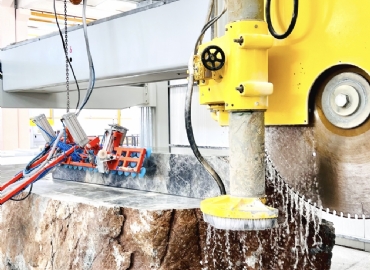

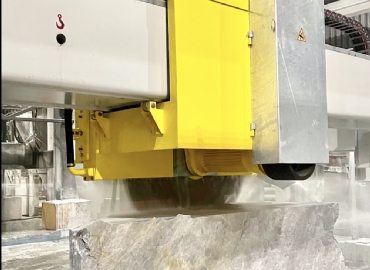

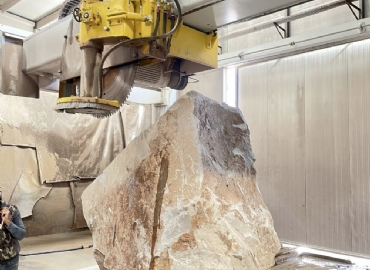

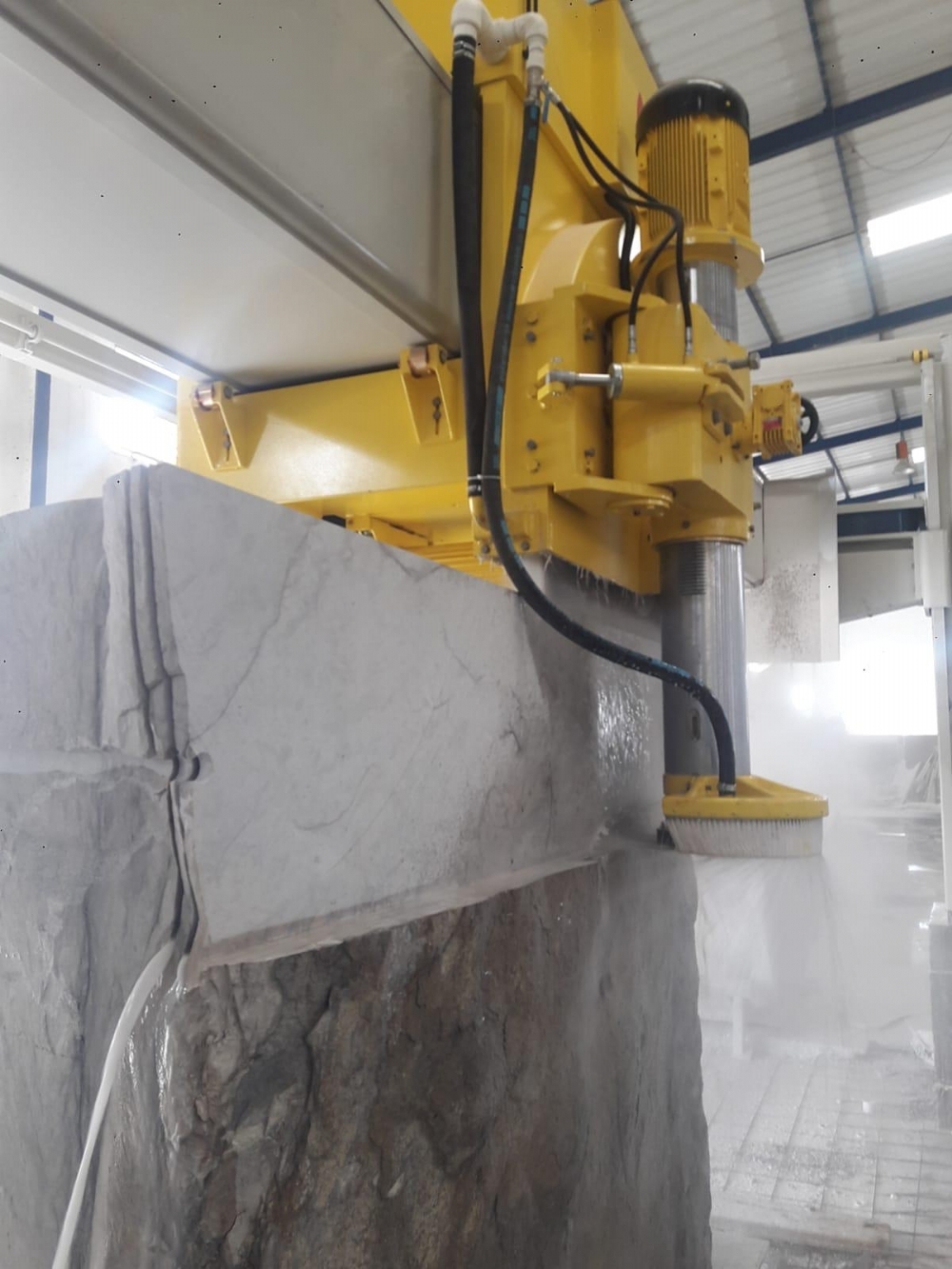

A Block Cutter/Cutting Machine Cuts Marble, Granite, Limestone, Travertine, Basalt & Natural Stone Blocks into Tiles/Strips.


TECHNICAL DATA ST 1400ST 1600ST 1800
Vertical disc daimetermm1000-14001000-16001000-1800

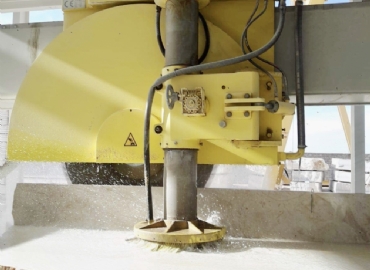

Horizontal disc daimetermm450*450*450*
Vertical disc motor powerkw/hp110/148110/148110/148
Horizontal disc motor powerkw/hp18.5/2518.5/2518.5/25
Bridge right-left movement motor powerkw/hp1.5/21.5/21.5/2
Bridge up-down movement motor powerkw/hp3/43/43/4
Cabin forward-backward movement motor powerkw/hp7.5/107.5/107.5/10
Horizontal disc open-close hydrolic motor powerkw/hp1.1/1.51.1/1.51.1/1.5
Trolley motor powerkw/hp2.2/32.2/32.2/3
Total electric powerkw/hp144/193144/193144/193
Water requiredlt/min100-150100-150100-150
Max. Block dimensions (Length x Width x Height)mm3600-2200**-24003500-2200**-24003500-2200**-2400
Overall dimensions (Length x Width x Height)mm8200 x 5350 x 48008200 x 5350 x 48008200 x 5350 x 4800
Machine weightkg165001650016500

* Yatay testere çapı isteğe bağlı büyütülebilir
* The horizontal dis daimeter can be increased optionally
** Kullanılan dikey testere çapına bağlıdır
** It depens on the diameter of the used vertical disc
