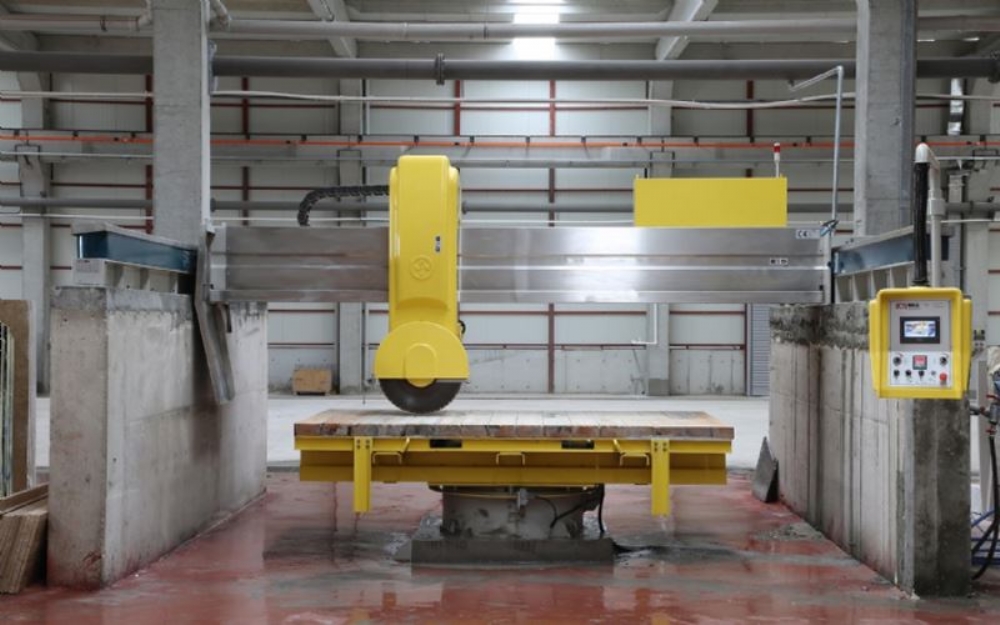

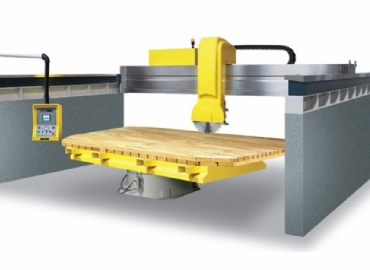

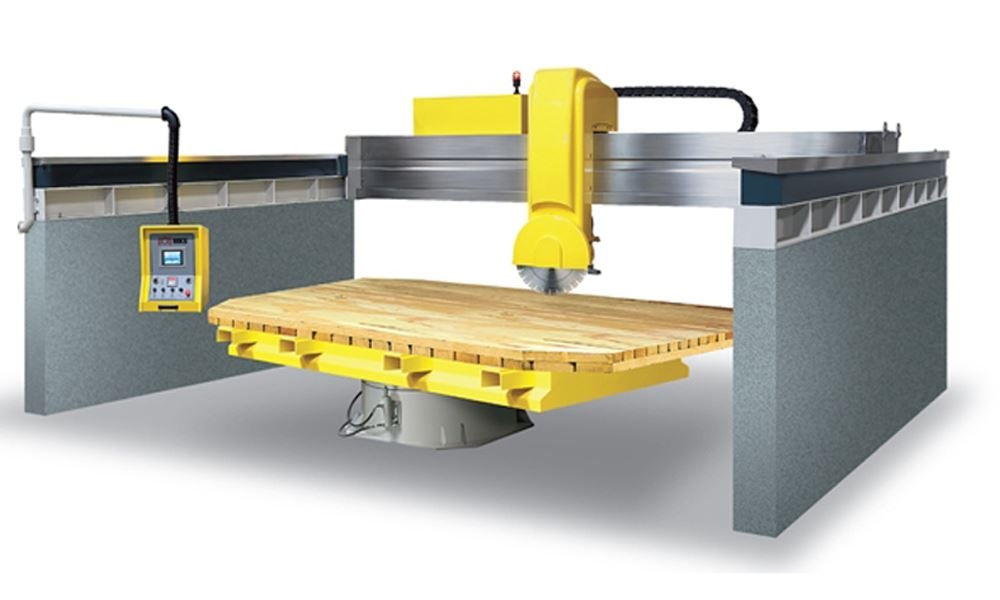

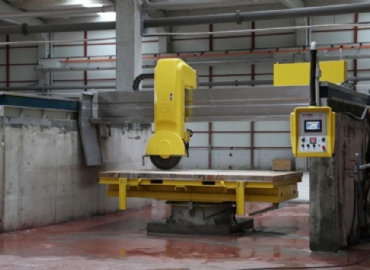

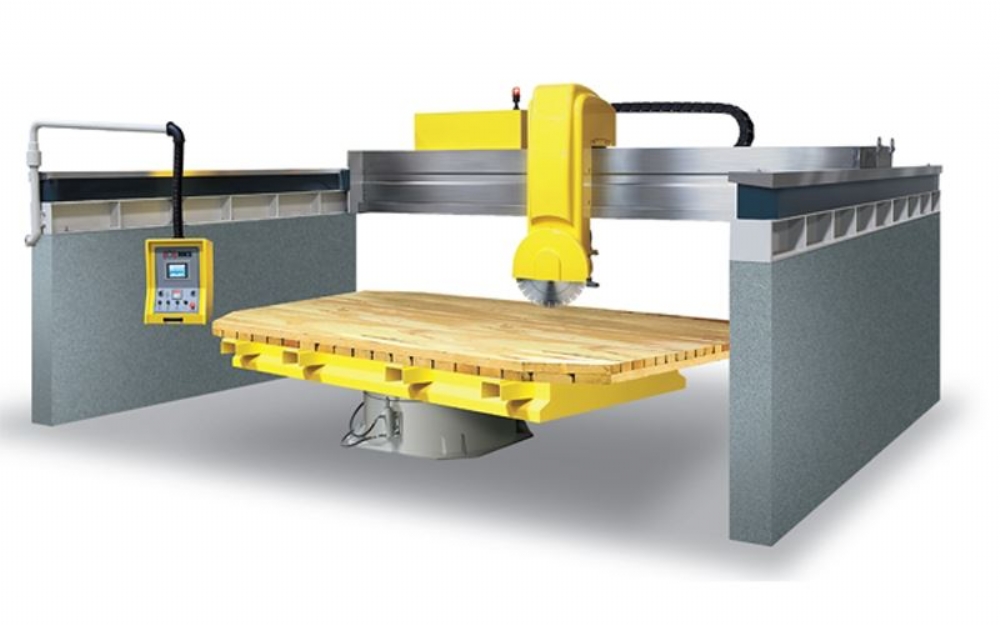

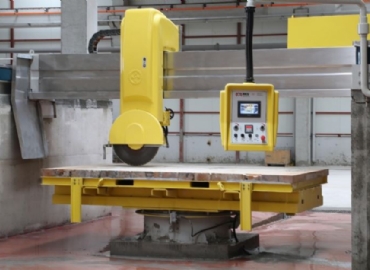

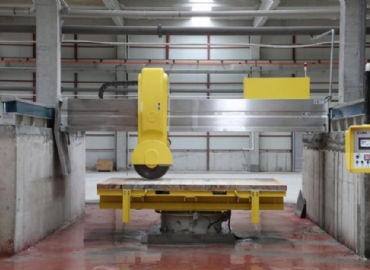

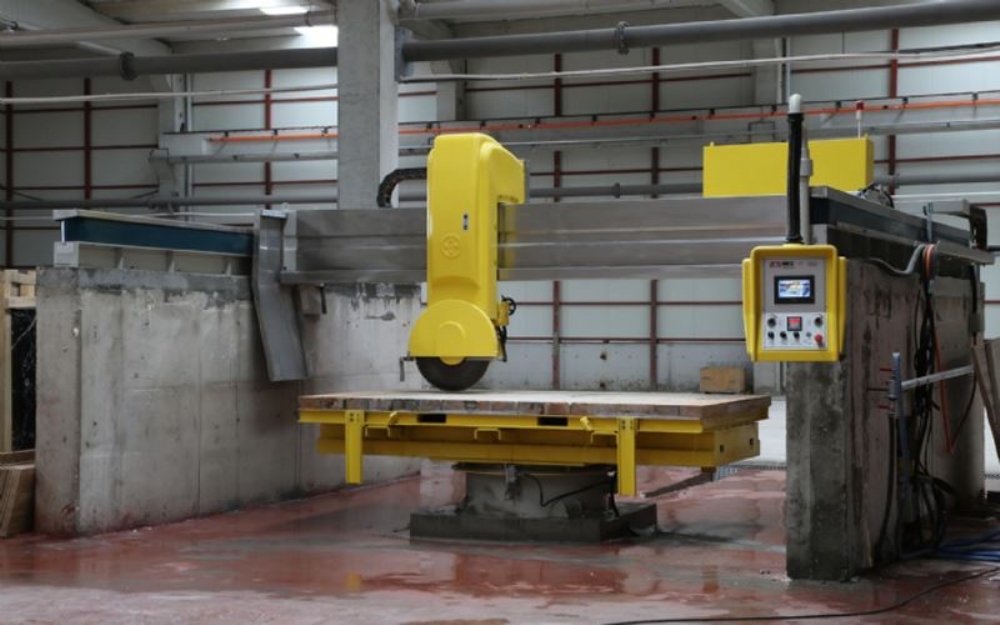

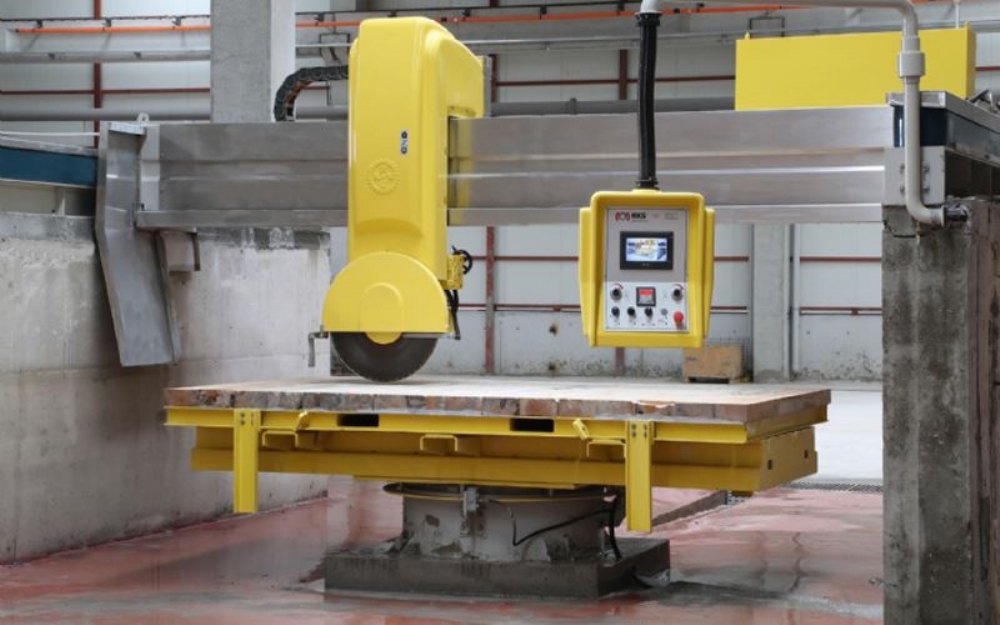

Bridge Saw - Stone Bridge Cutting/Cutter Machine

Technicial Specifications

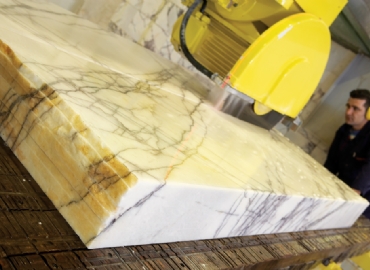

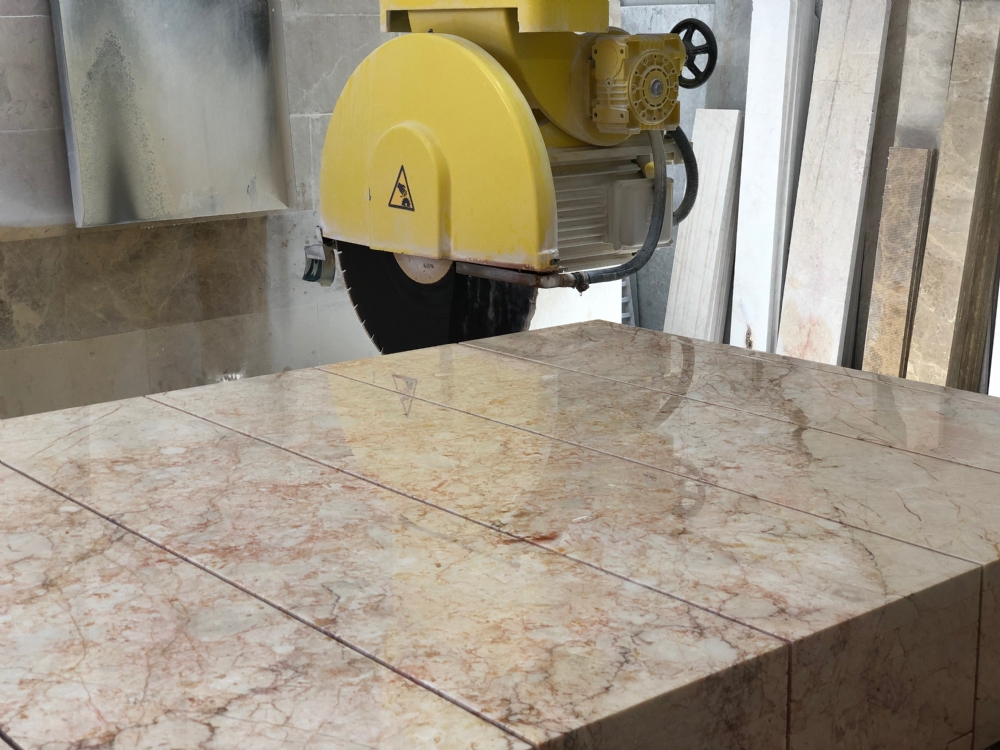

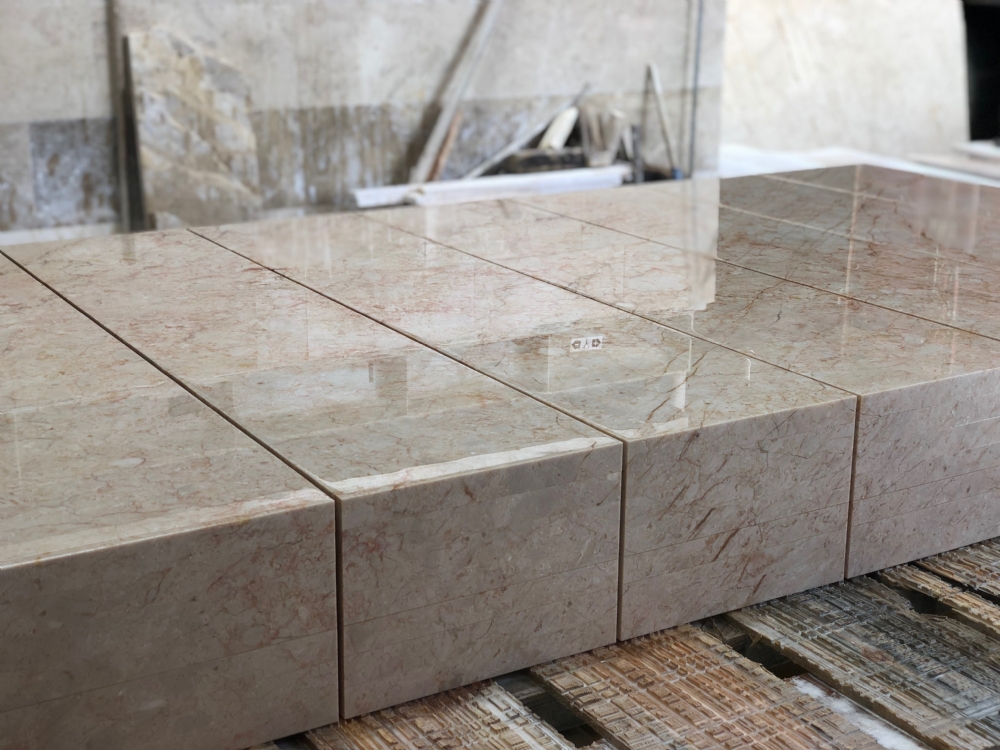

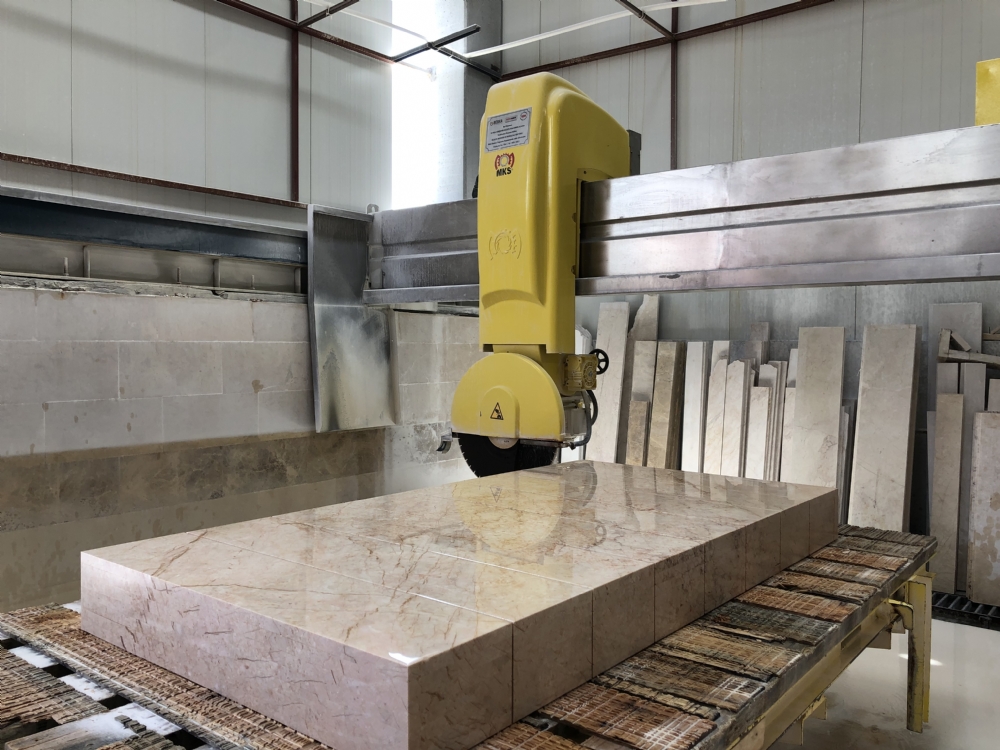

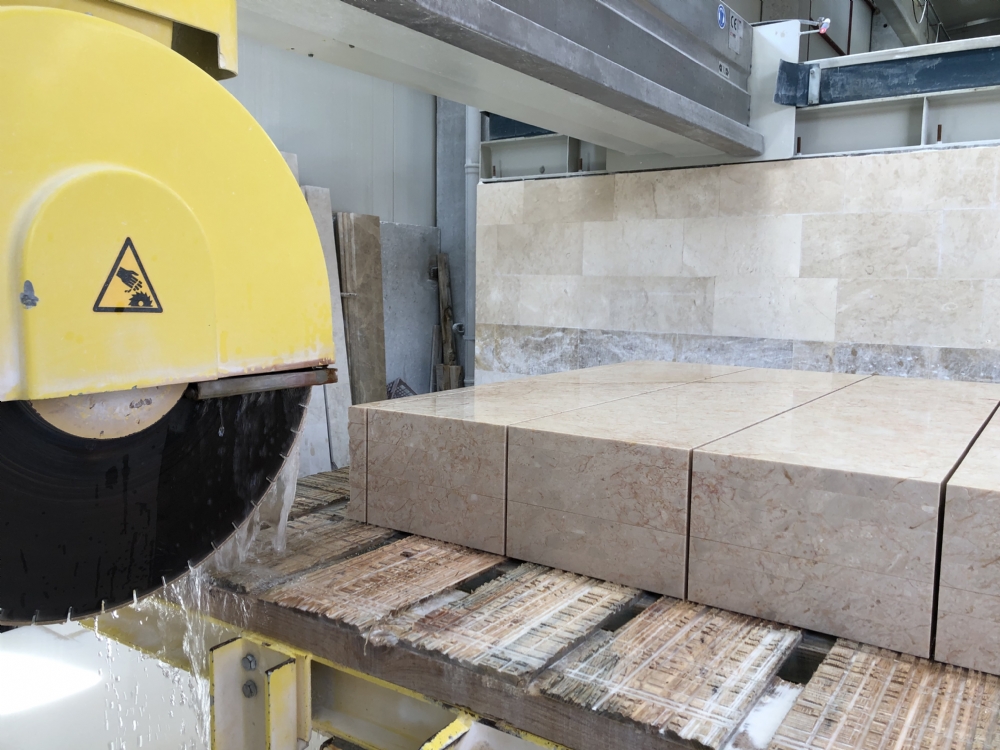

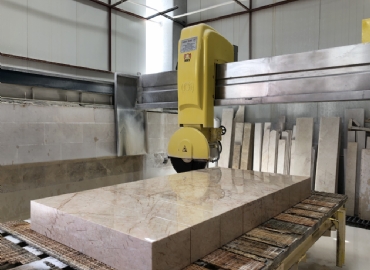

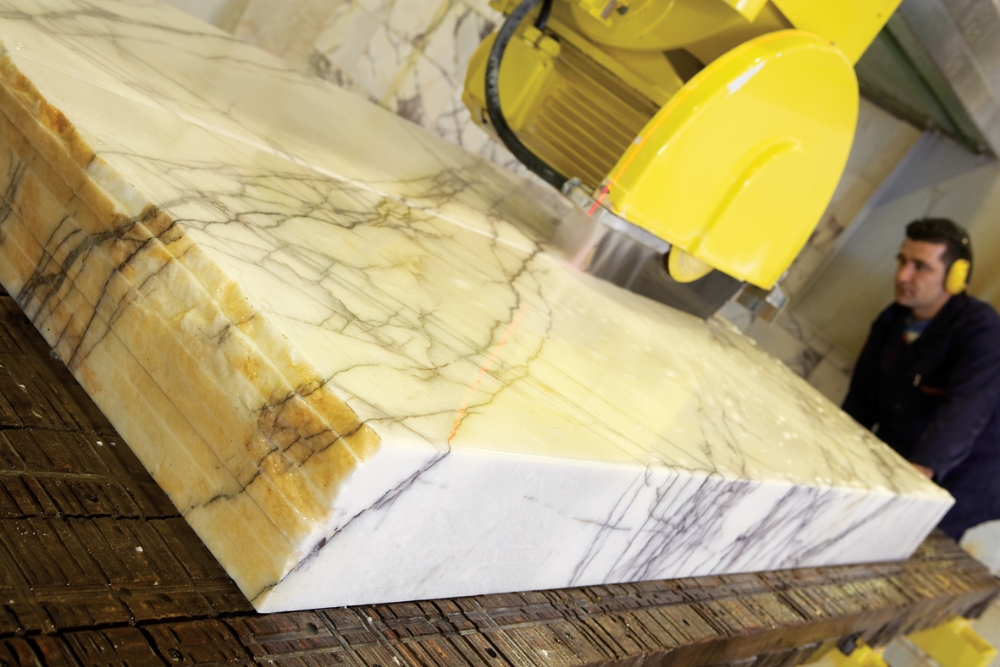

Depending on the desired architectural project, Bridge Saw - Stone Bridge Cutting/Cutter Machine cuts marble & granite slabs into any dimensional size needed.

Disc cutting strokemm37003400
Max. vertical disc movement distancemm350300
Bridge movement distancemm35003500
Max. disc diametermm7251000
Max. cutting depthmm200360
Longitudinal disc holder heads quantityadet/pcs.2
Table dimensionsmm2000 / 35002000 / 3500
Disc motor powerkw/hp22/3030/40
Overall dimensions (Length x Width x Height)mm6330 x 5500 x 29606330 x 5500 x 2960
Total electric powerkw/hp30/4038/50
Machine weightkg72507300


Since 1978, we are proud of the rightful trust in our machines that have been working successfully in the country and in the world, and we are in an effort to offer you quality.
