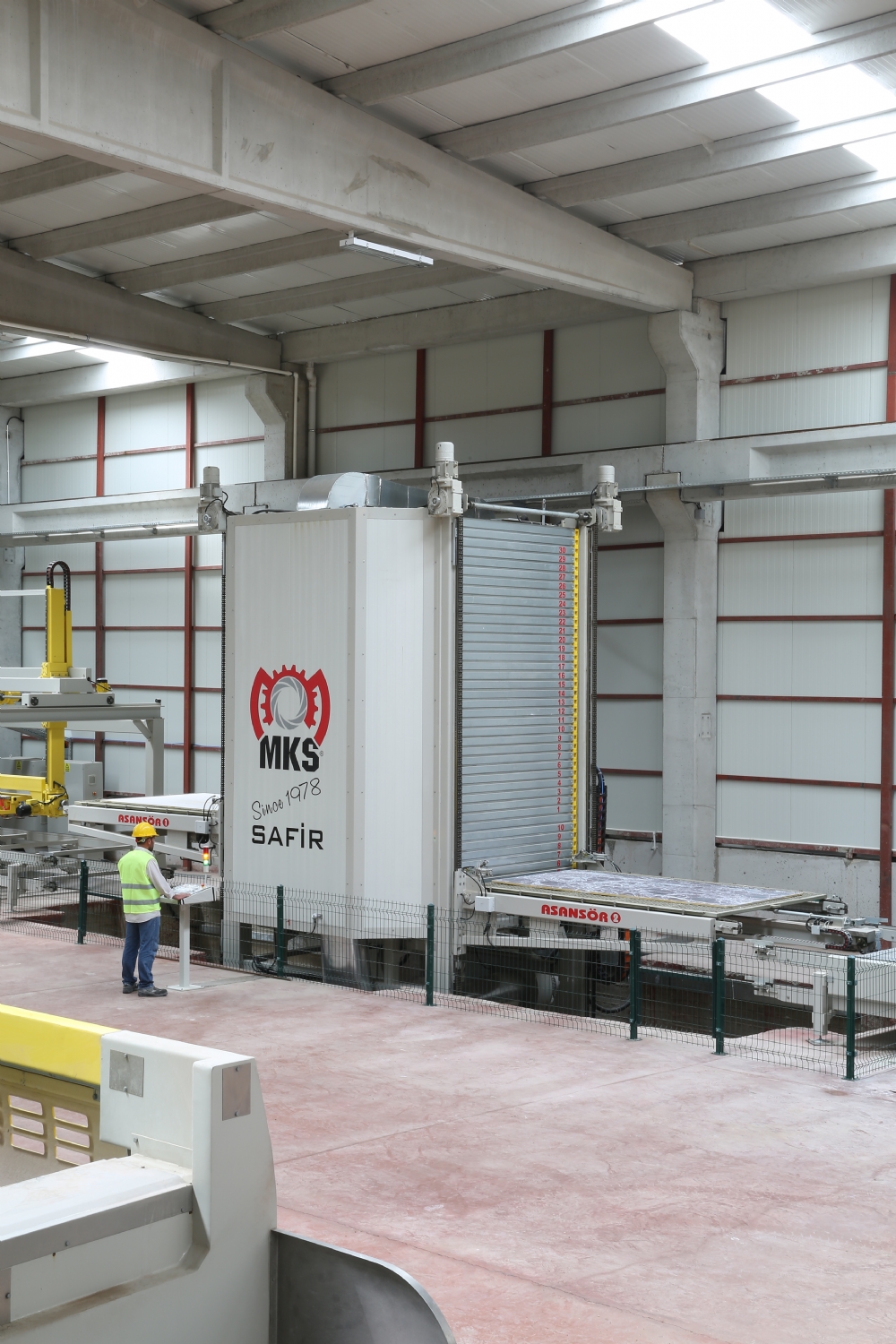

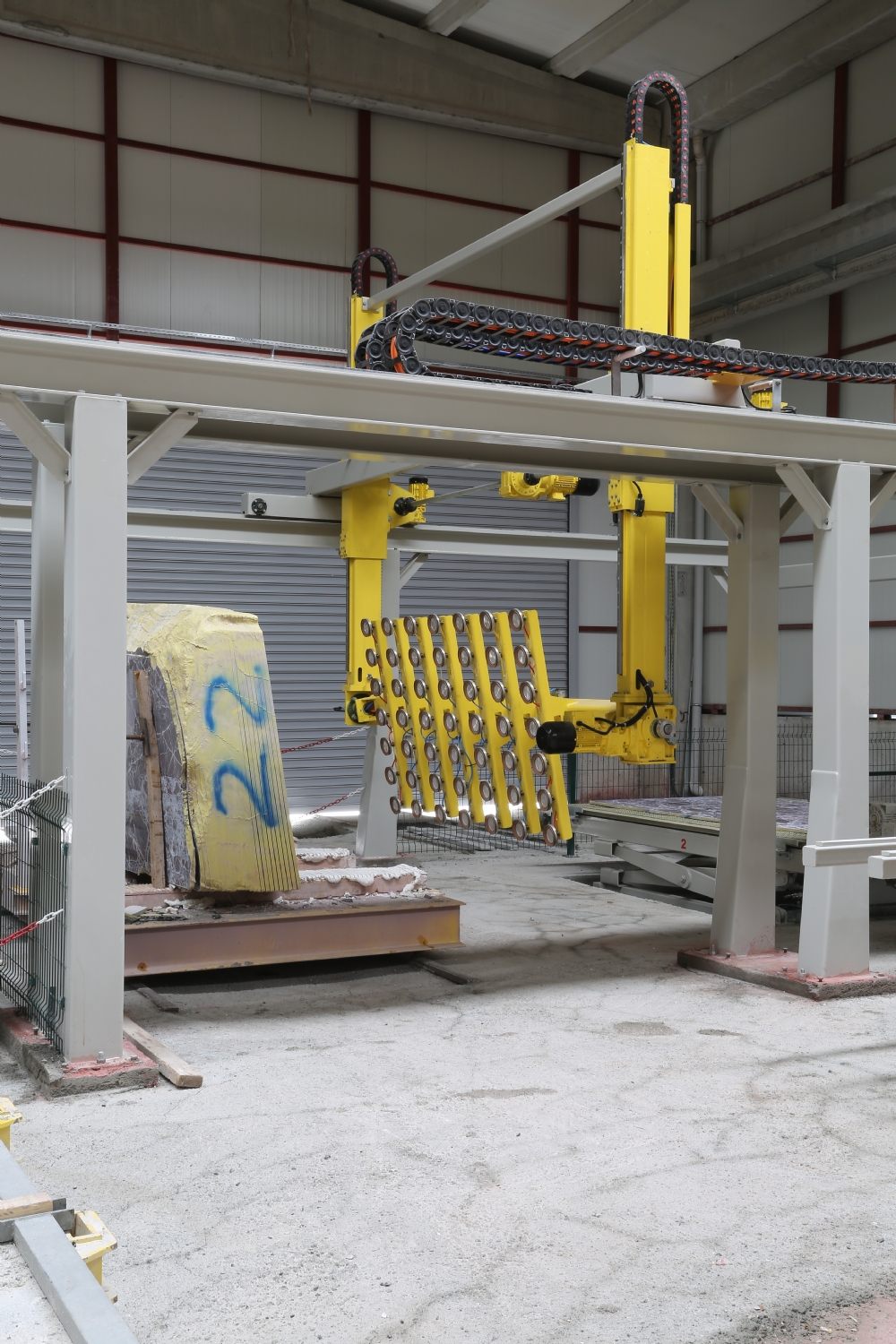

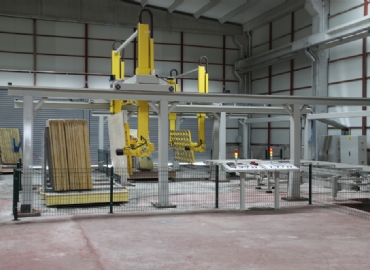

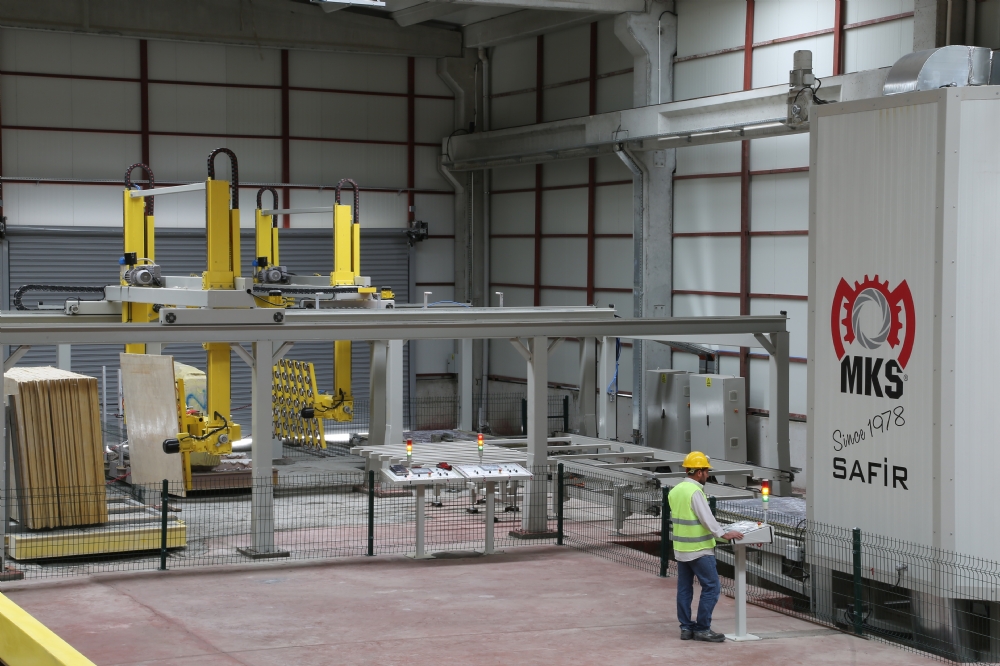

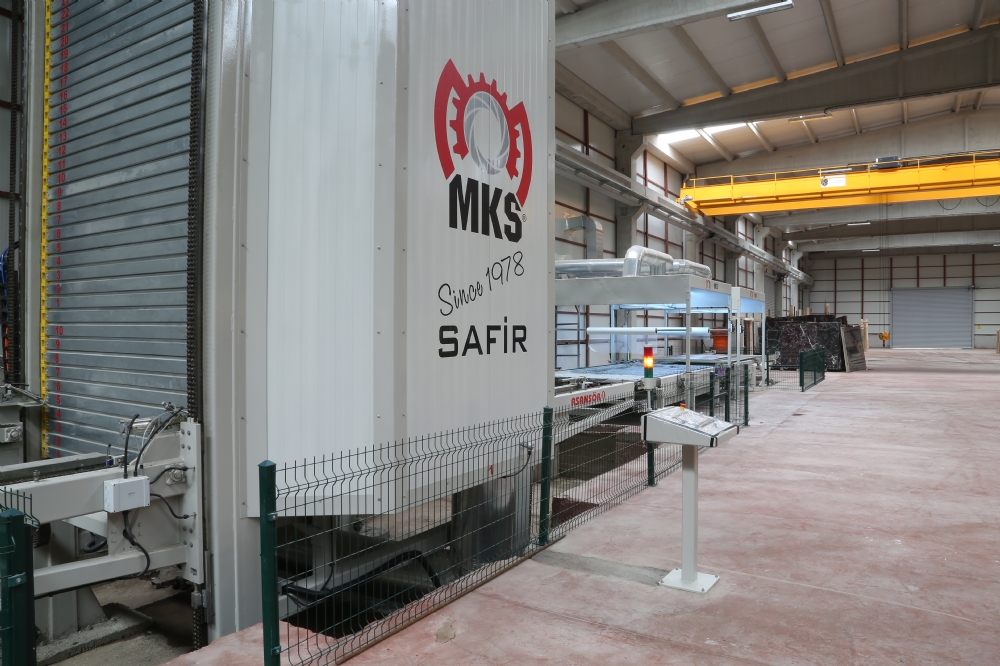

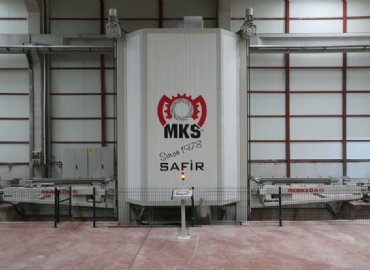

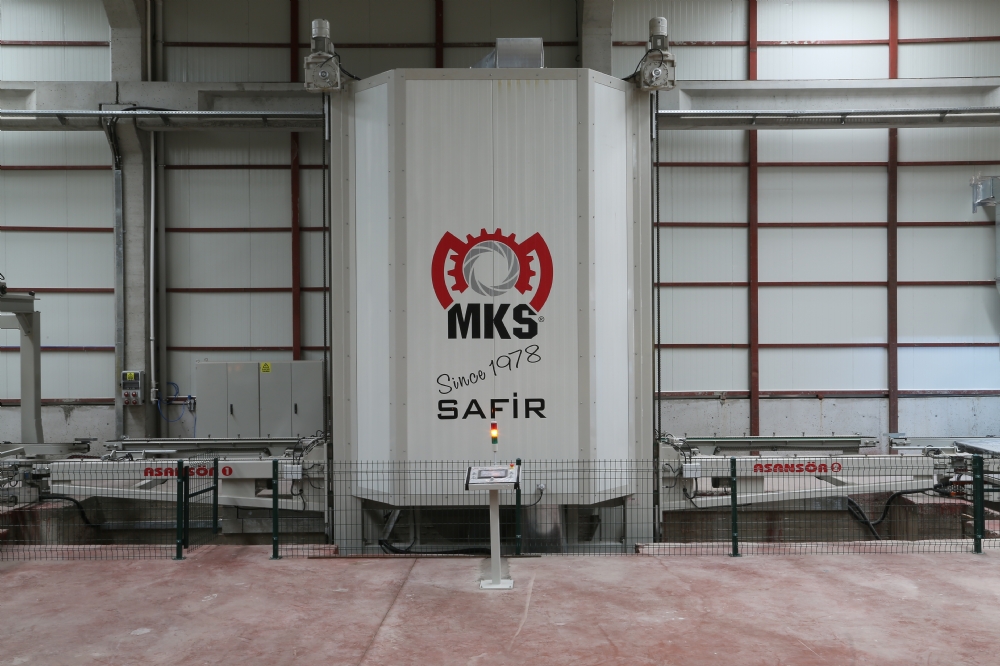

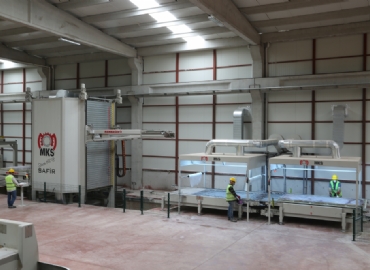

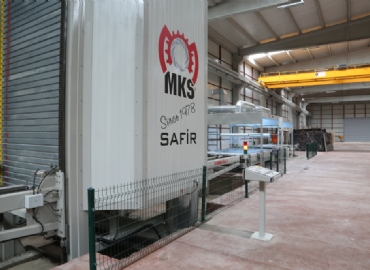

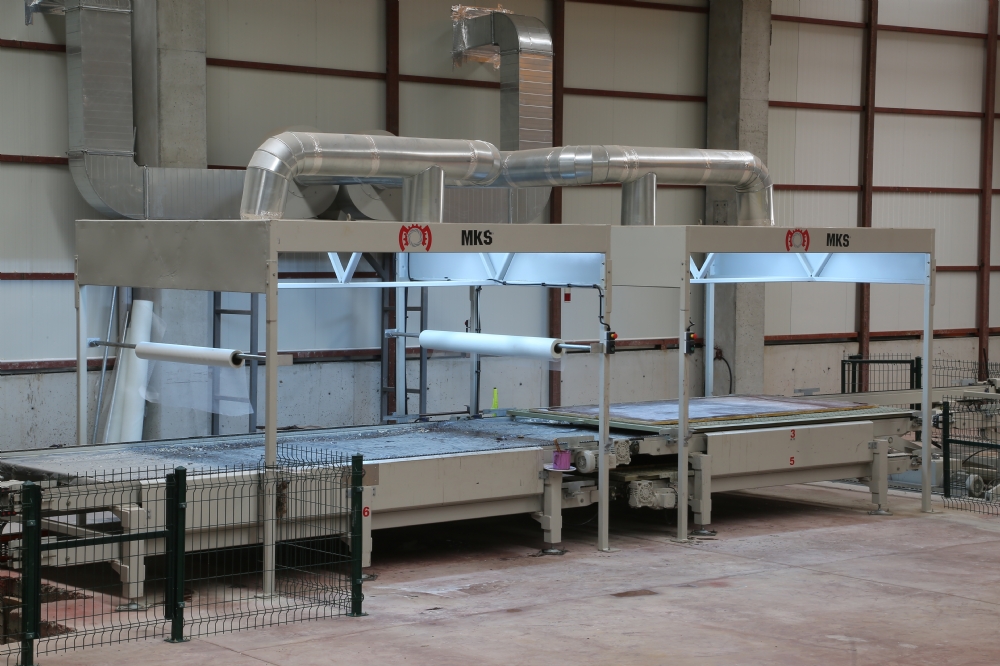

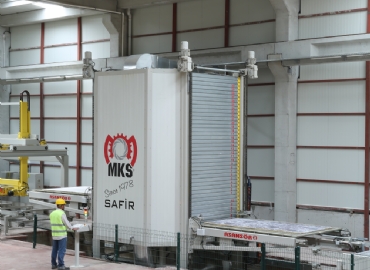

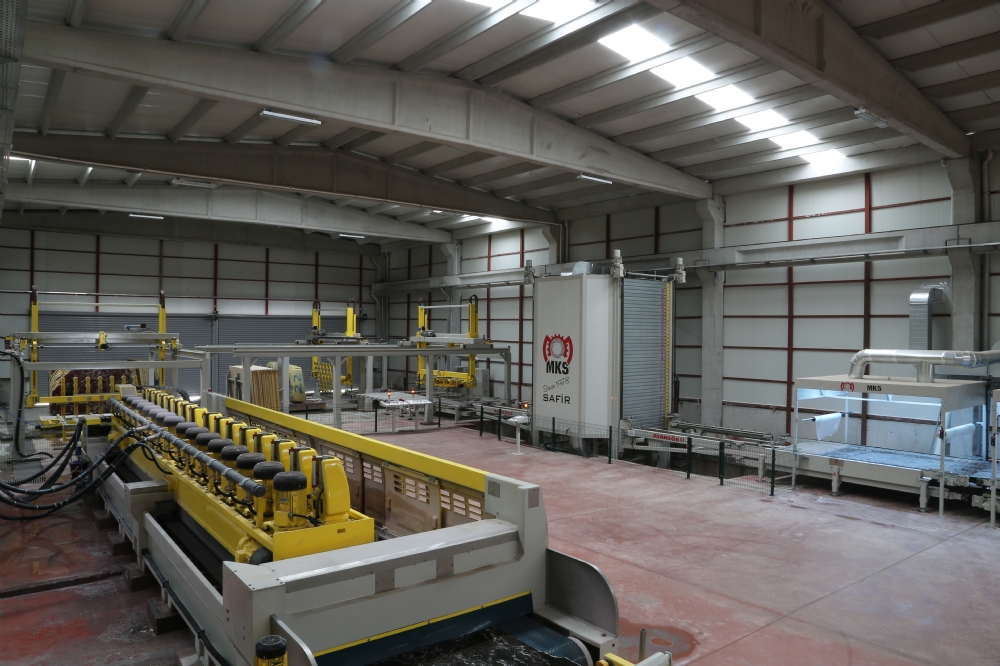

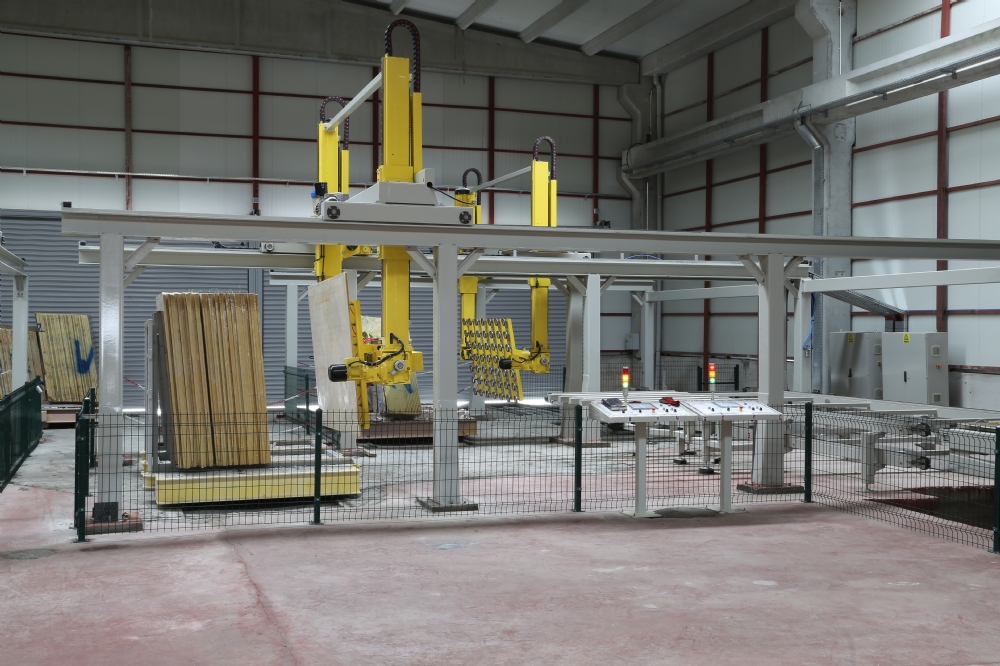

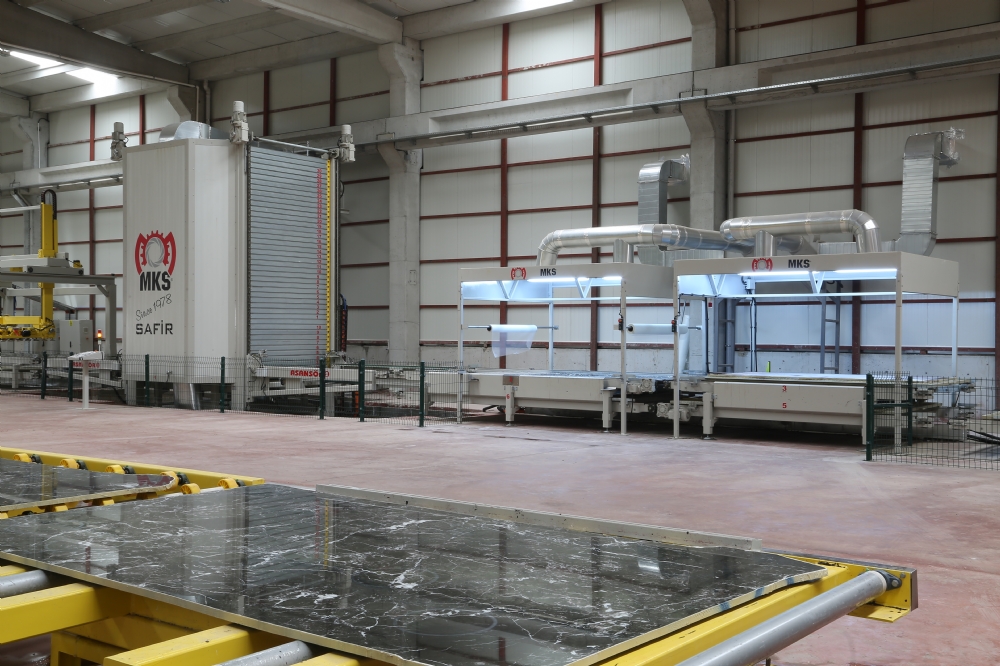

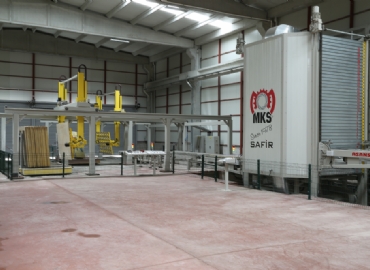

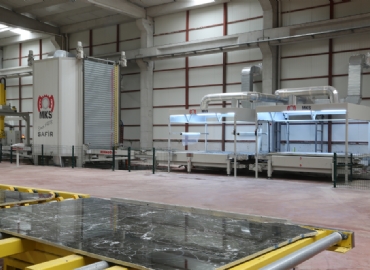

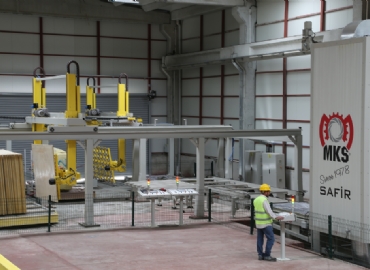

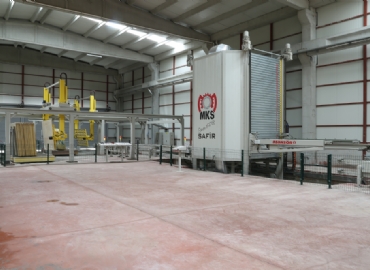

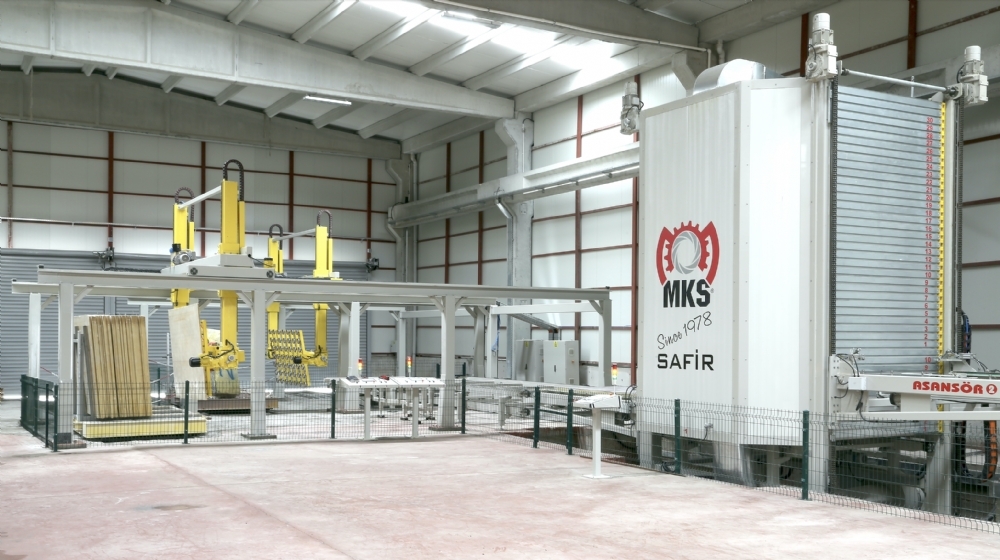

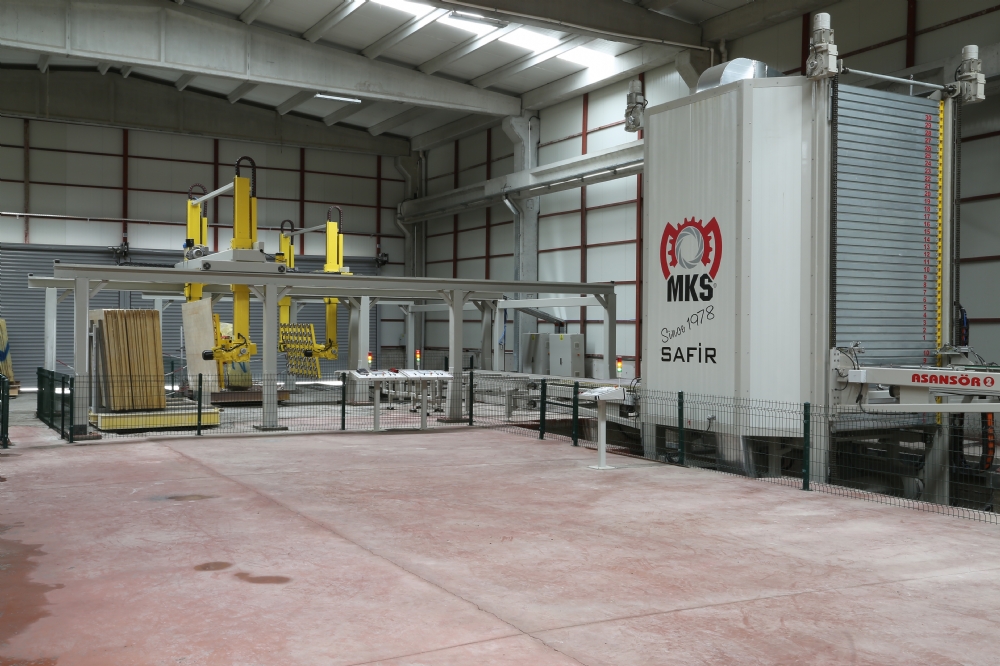

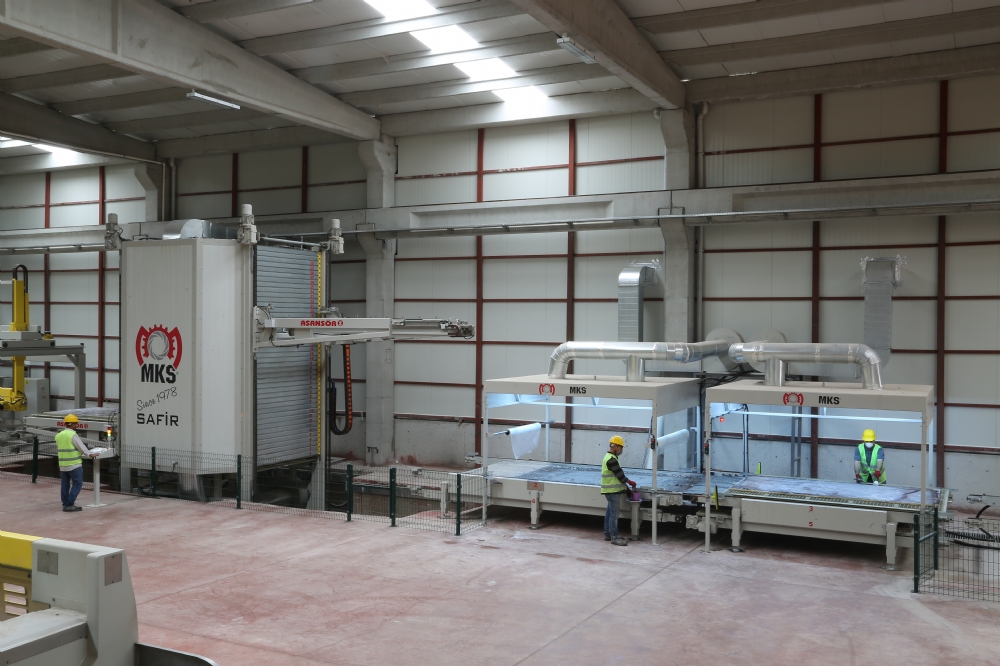

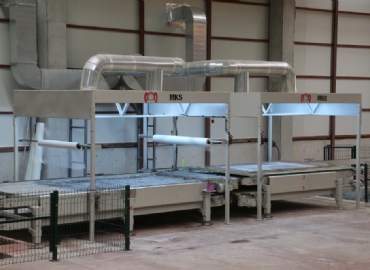

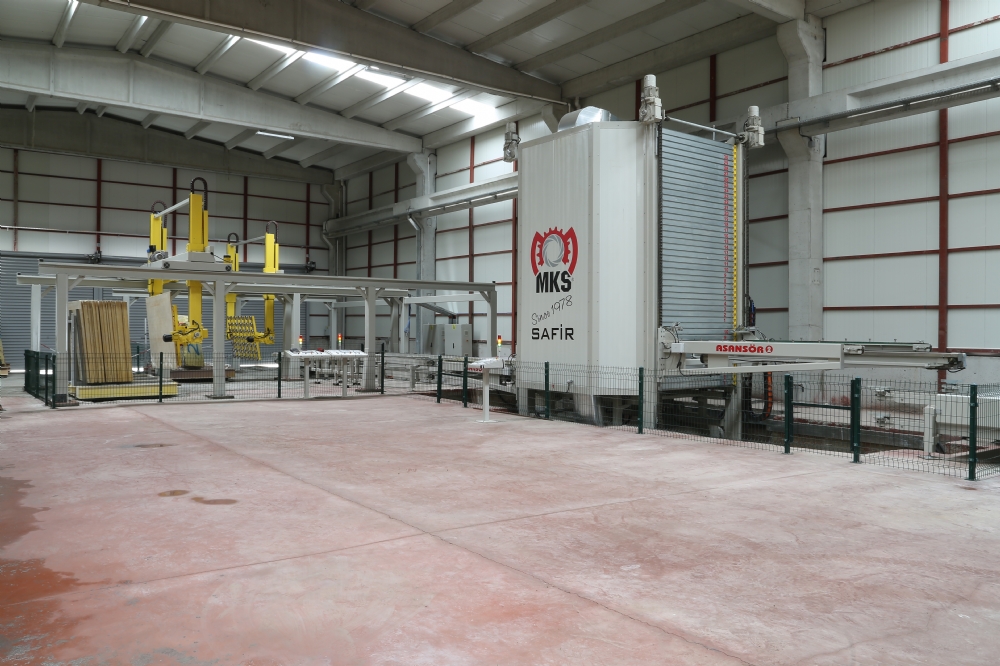

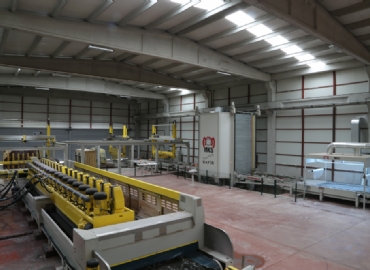

Resin Line(s), Epoxy Line Oven Line Machine for Reinforcement Marble, Granite, and Natural Stone Slabs has sold to EGYPT.
The epoxy resin lines are used resin to decrease the ratio of breaking crack slabs of natural stones, Marble, and Granite in a maximum degree. It can decrease the breaking of breakable natural stones such as Marble, Granite Slabs from % 40 to % 7
| TECHNICAL DATA | SAFİR 10+20 | SAFİR 10+30 | SAFİR 30+80 | SAFİR 30+80+80 | |
|---|---|---|---|---|---|
| One side operation capacity | n°/h | 10 plaka/h | 15 plaka/h 15 slabs/h | 30 plaka/h 30 slabs/h | 60 plaka/h 60 slabs/h |
| Double side operation capacity | n°/h | - | 10 plaka/h 10 slabs/h | 30 plaka/h 30 slabs/h | 60 plaka/h 60 slabs/h |
| Line length (with robot) | mm | 22000 | 33000-38000 | 53000-62000 | 78000-85000 |
| Line width (with robot) | mm | 4500 | 5000-11000 | 5000-11000 | 5000-11000 |
| Height | mm | 5350 | 5750 | 5750 | 5750 |
| Floor number | No | 30 | 40 | 110 | 190 |
| Max. slab dimension | mm | 2100x3150x50 | 2100x3150x50 | 2100x3150x50 | 2100x3150x50 |
| Weight | Kg | 18500 | 40000 | 87000 | 138000 |
| Total installation power | kW | 210 | 235 | 380 | 530 |
| Hourly energy consumption on regime | kWh/h | 45 | 60 | 95 | 130 |
